HandsFreeLink System Component Location Index

WARNING: This page is about a different variant/trim than selected.

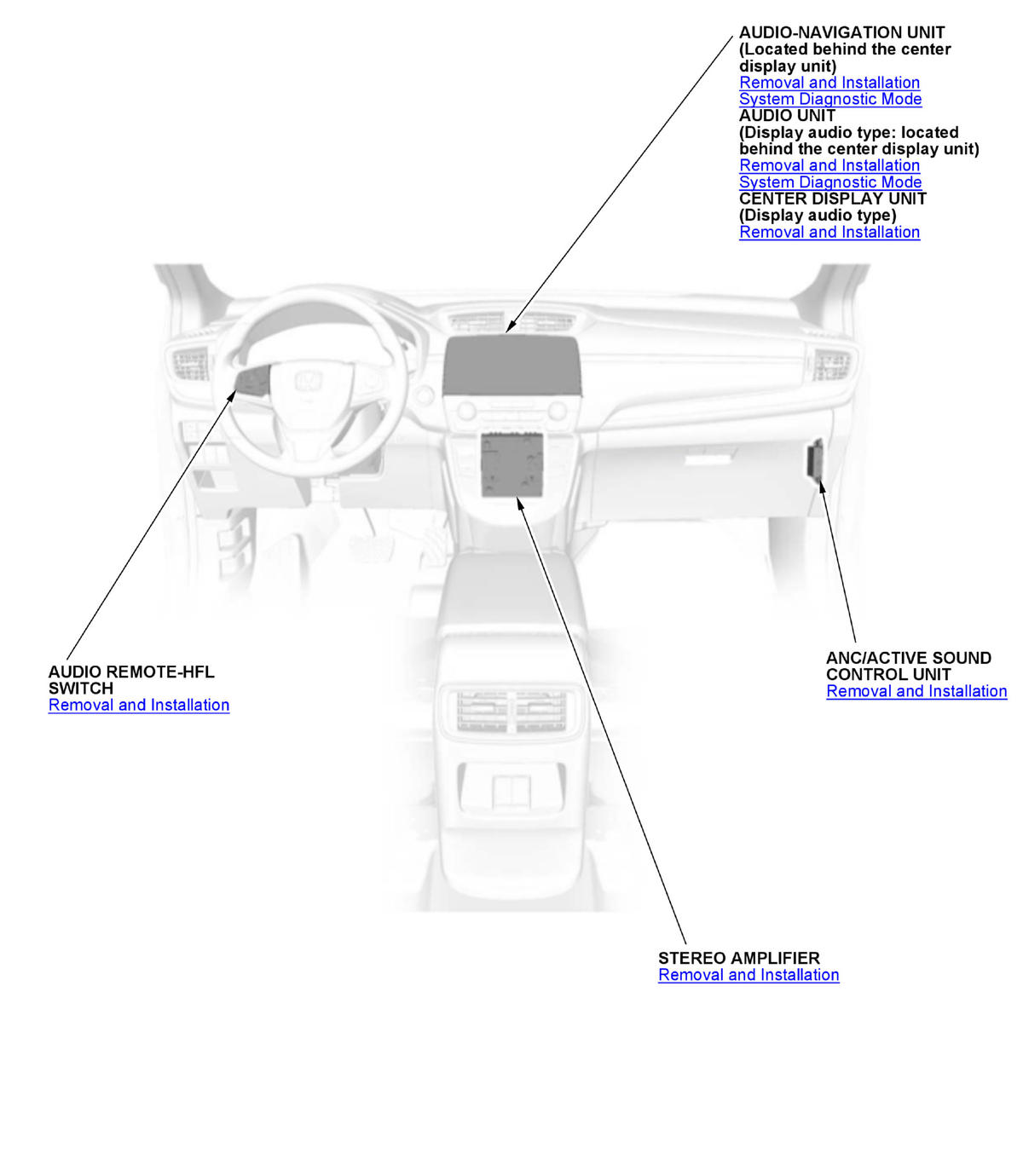

GHH379528Courtesy of HONDA, U.S.A., INC.

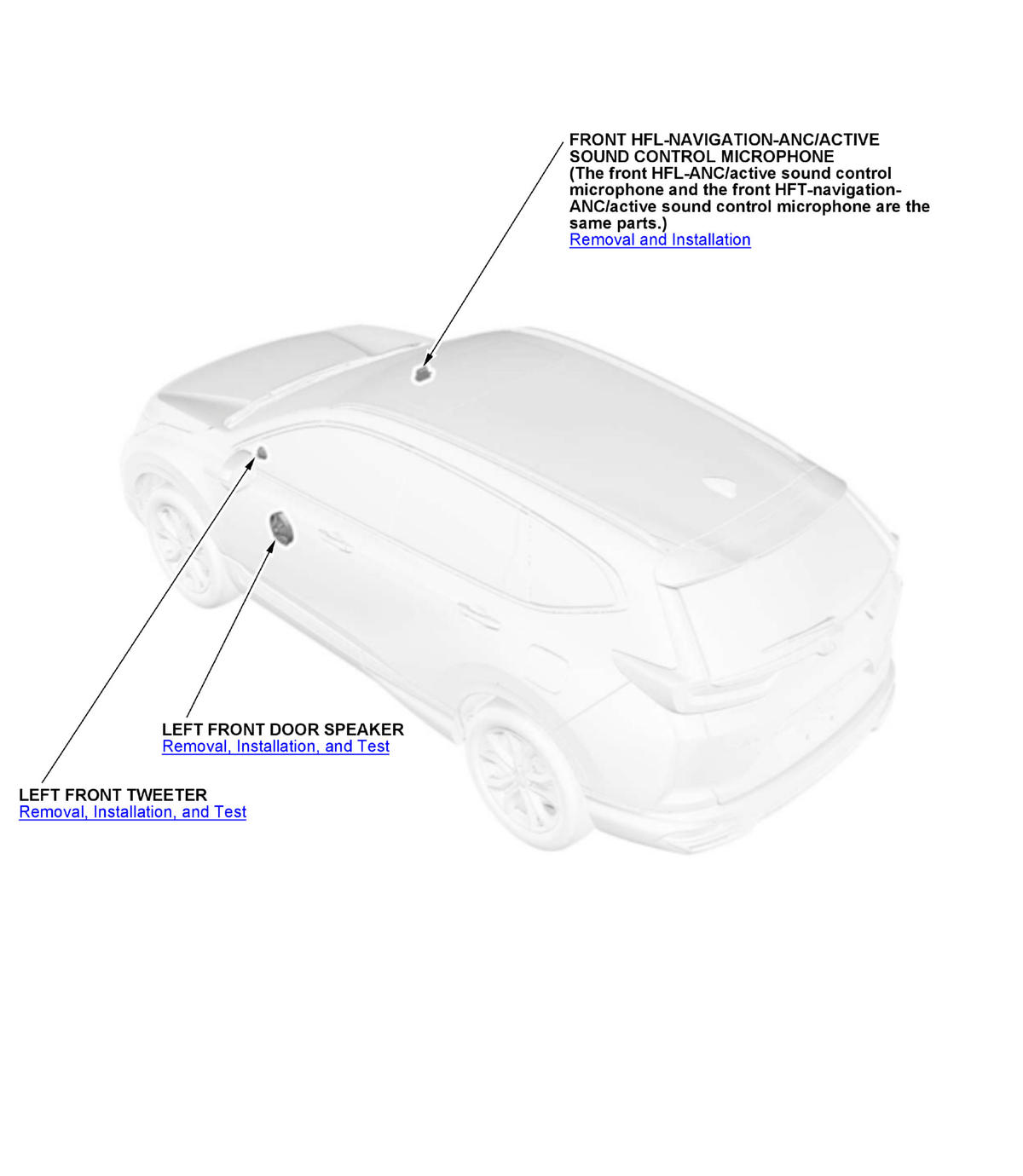

GHH379529Courtesy of HONDA, U.S.A., INC.

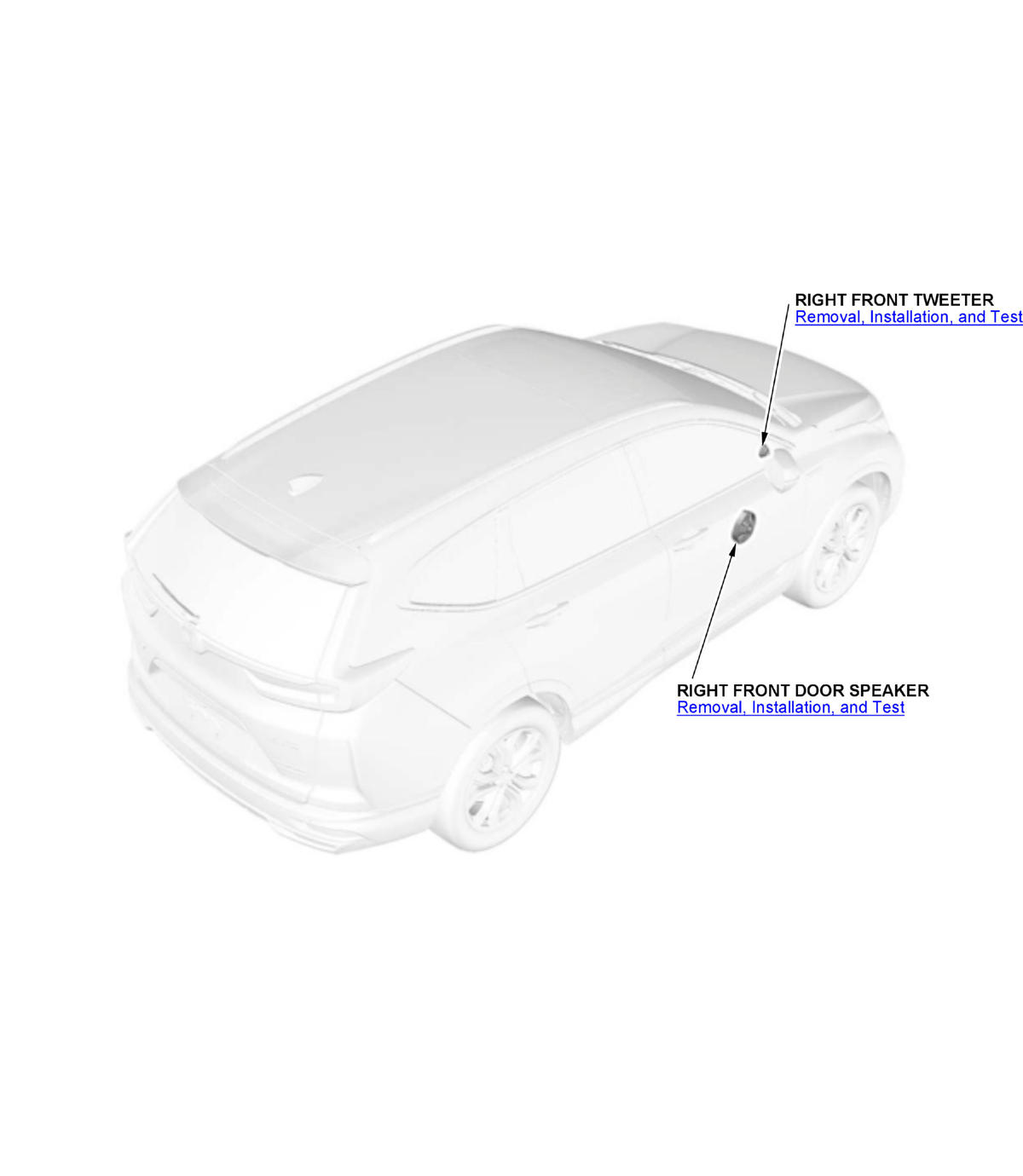

GHH379530Courtesy of HONDA, U.S.A., INC.
