Gear Unit Control System Component Location Index

WARNING: This page is about a different variant/trim than selected.

For relationships between signals in a system, refer to System Diagram.

Electronic Control System Shift Control System

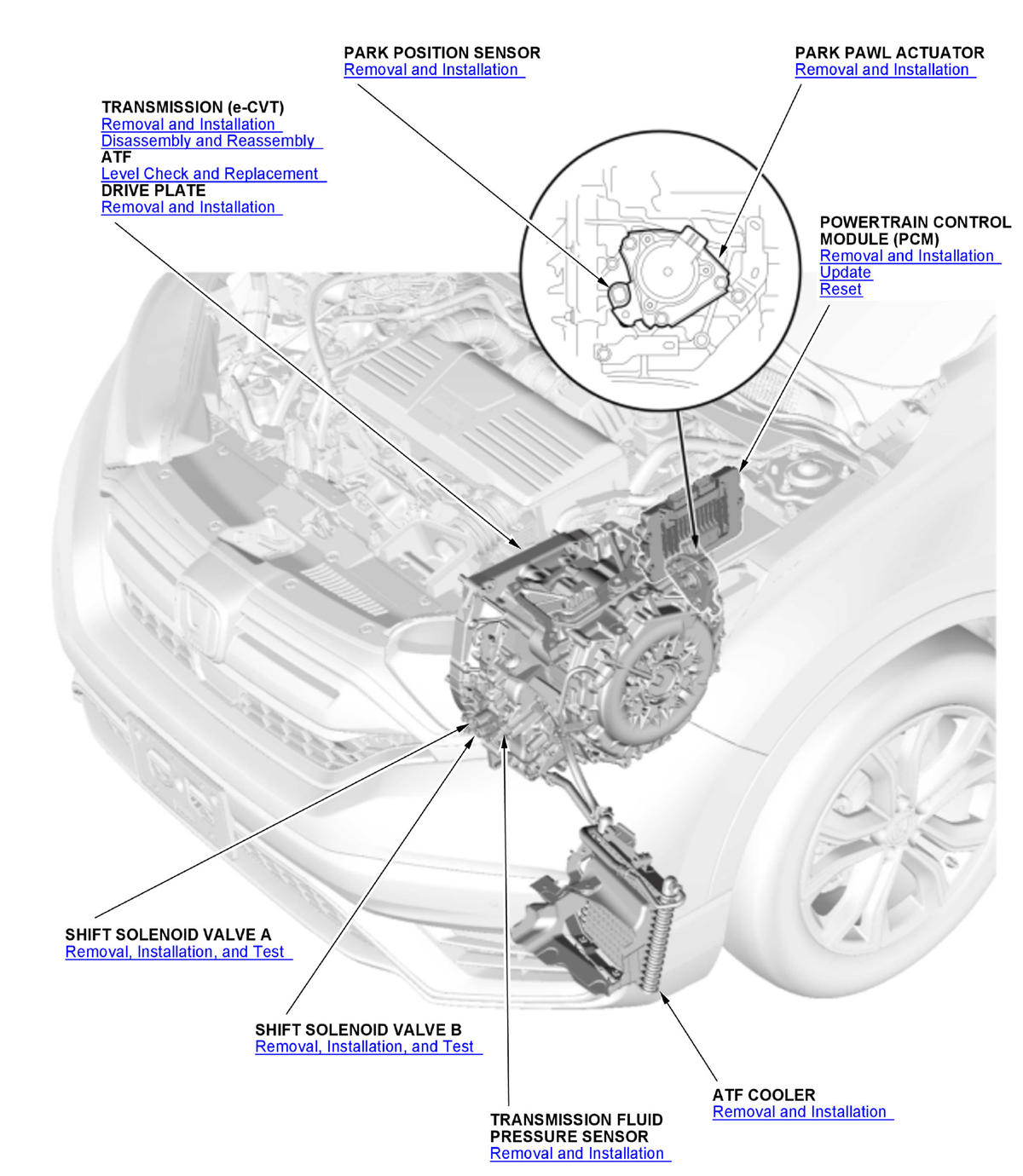

GHH374814Courtesy of HONDA, U.S.A., INC.

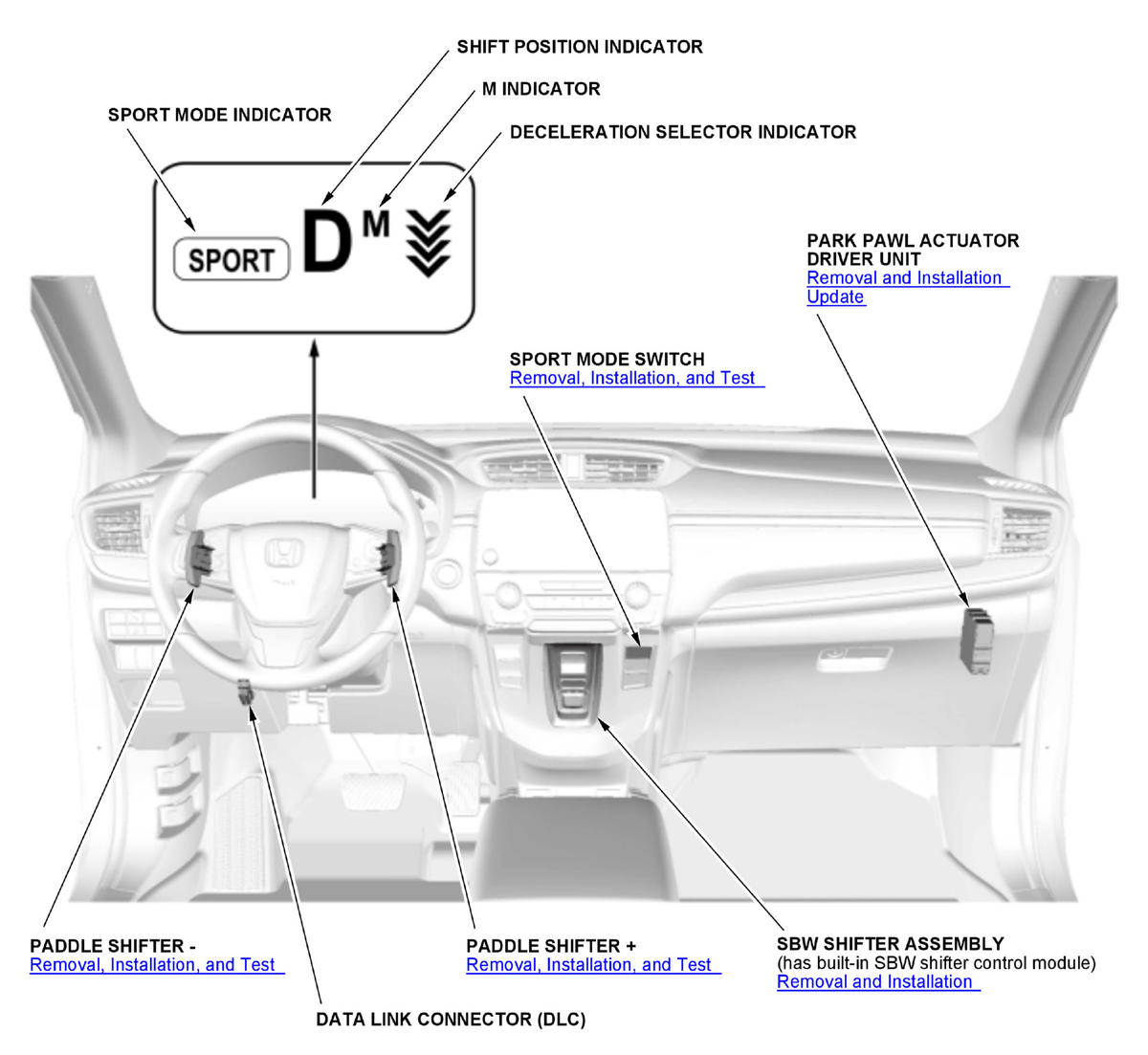

GHH374815Courtesy of HONDA, U.S.A., INC.
