Safety Indicator System Component Location Index

WARNING: This page is about a different variant/trim than selected.

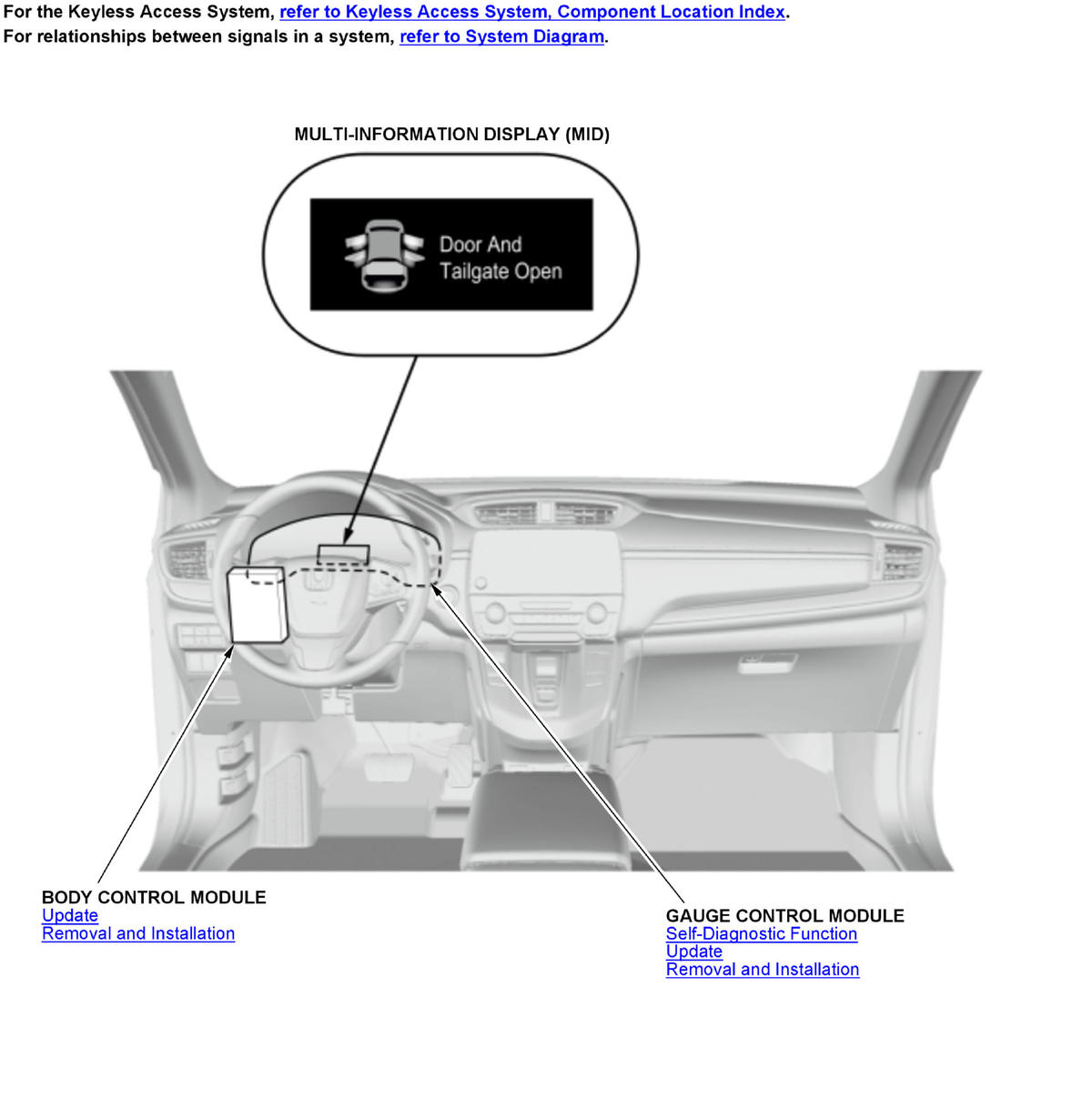

GHH379063Courtesy of HONDA, U.S.A., INC.

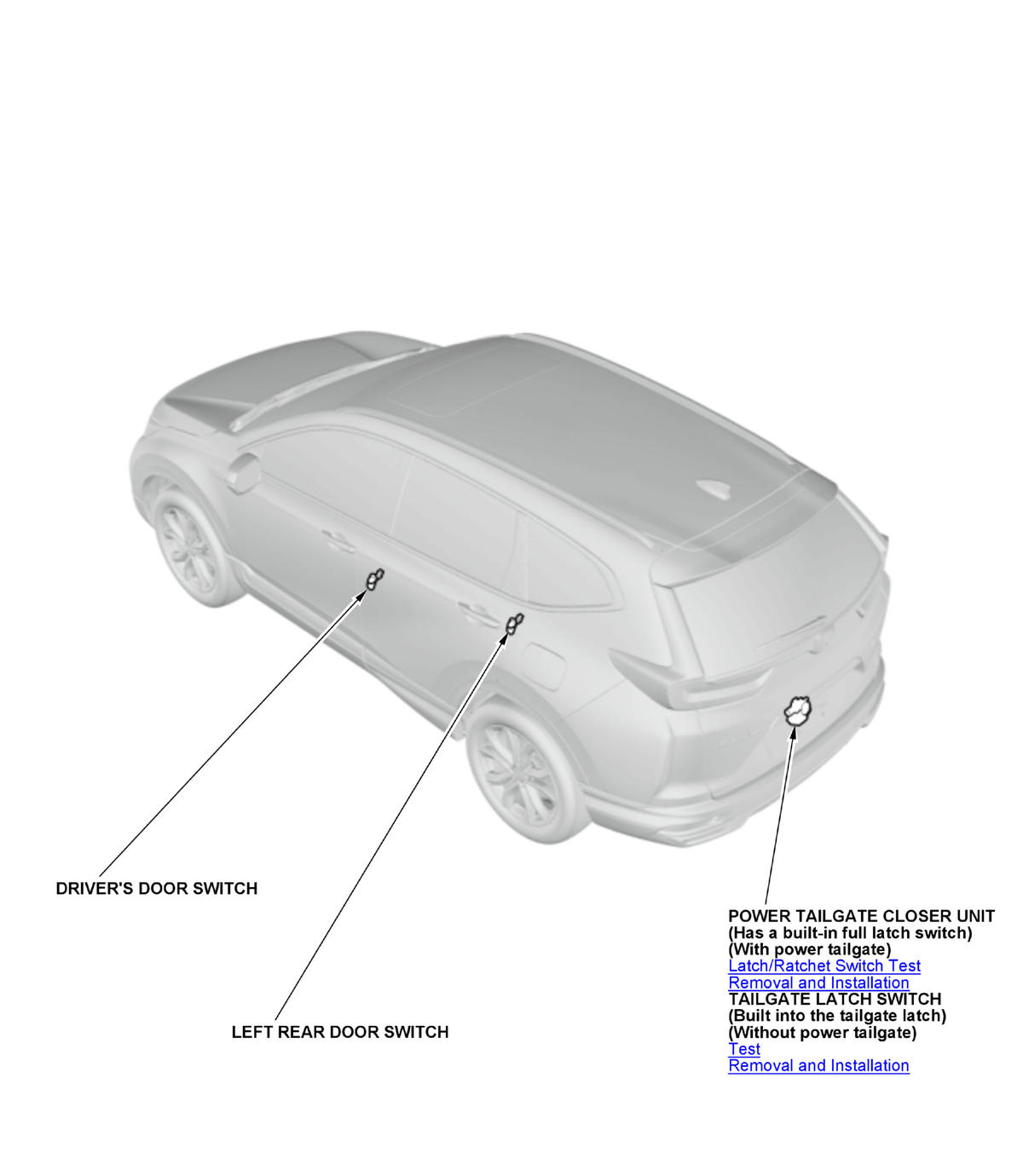

GHH379064Courtesy of HONDA, U.S.A., INC.

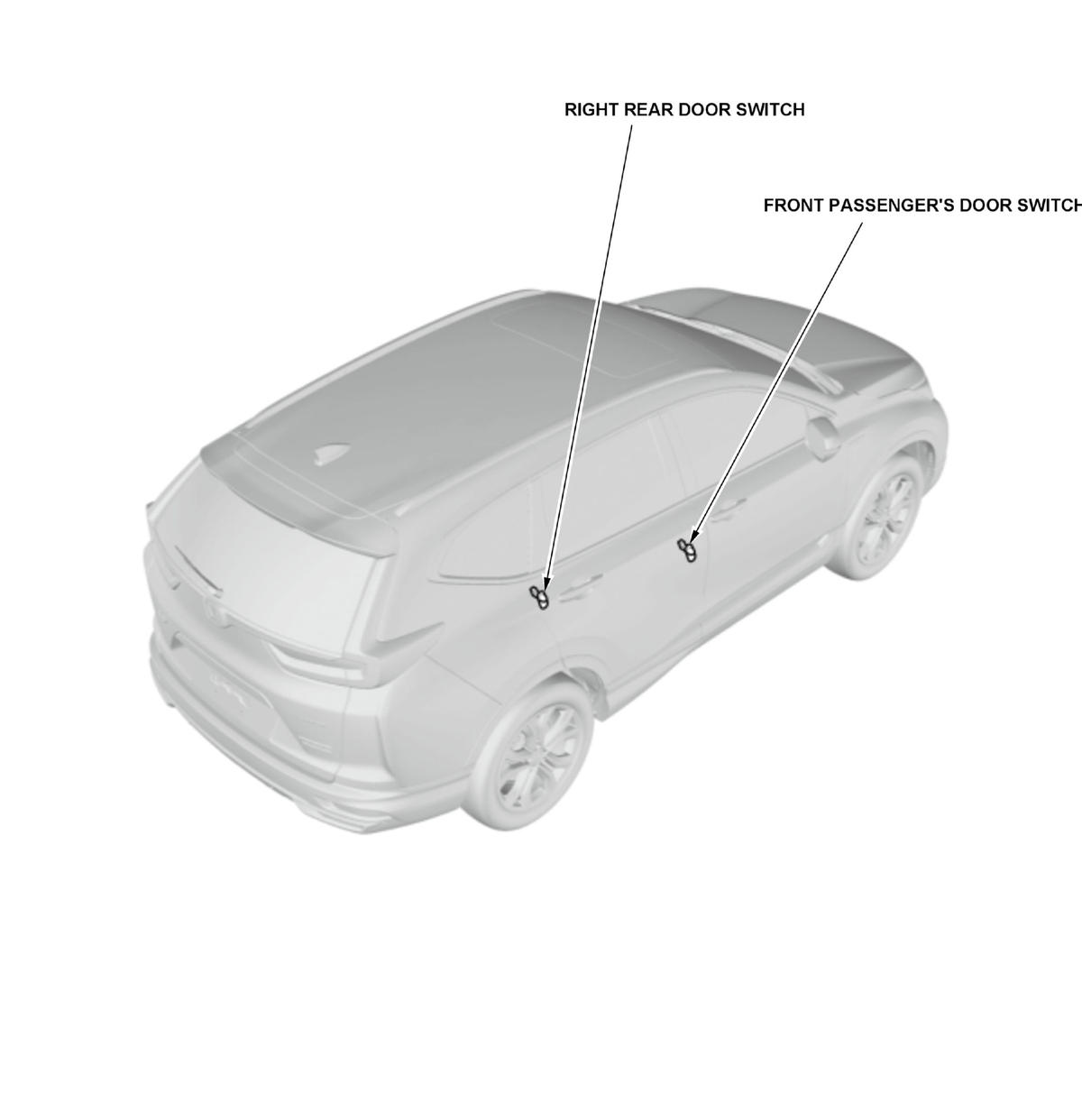

GHH379065Courtesy of HONDA, U.S.A., INC.
