Exterior Lights Component Location Index

WARNING: This page is about a different variant/trim than selected.

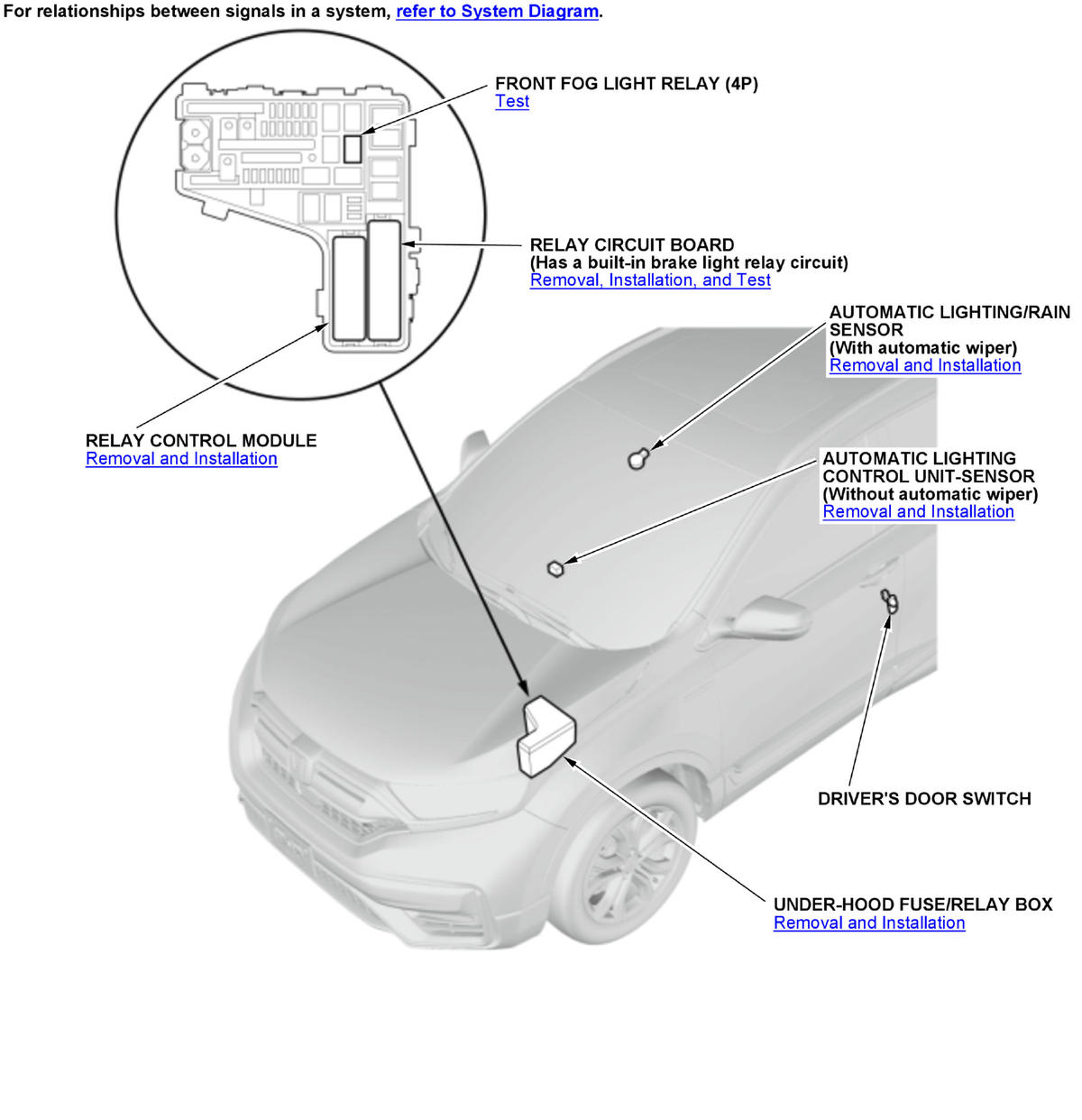

GHH378614Courtesy of HONDA, U.S.A., INC.

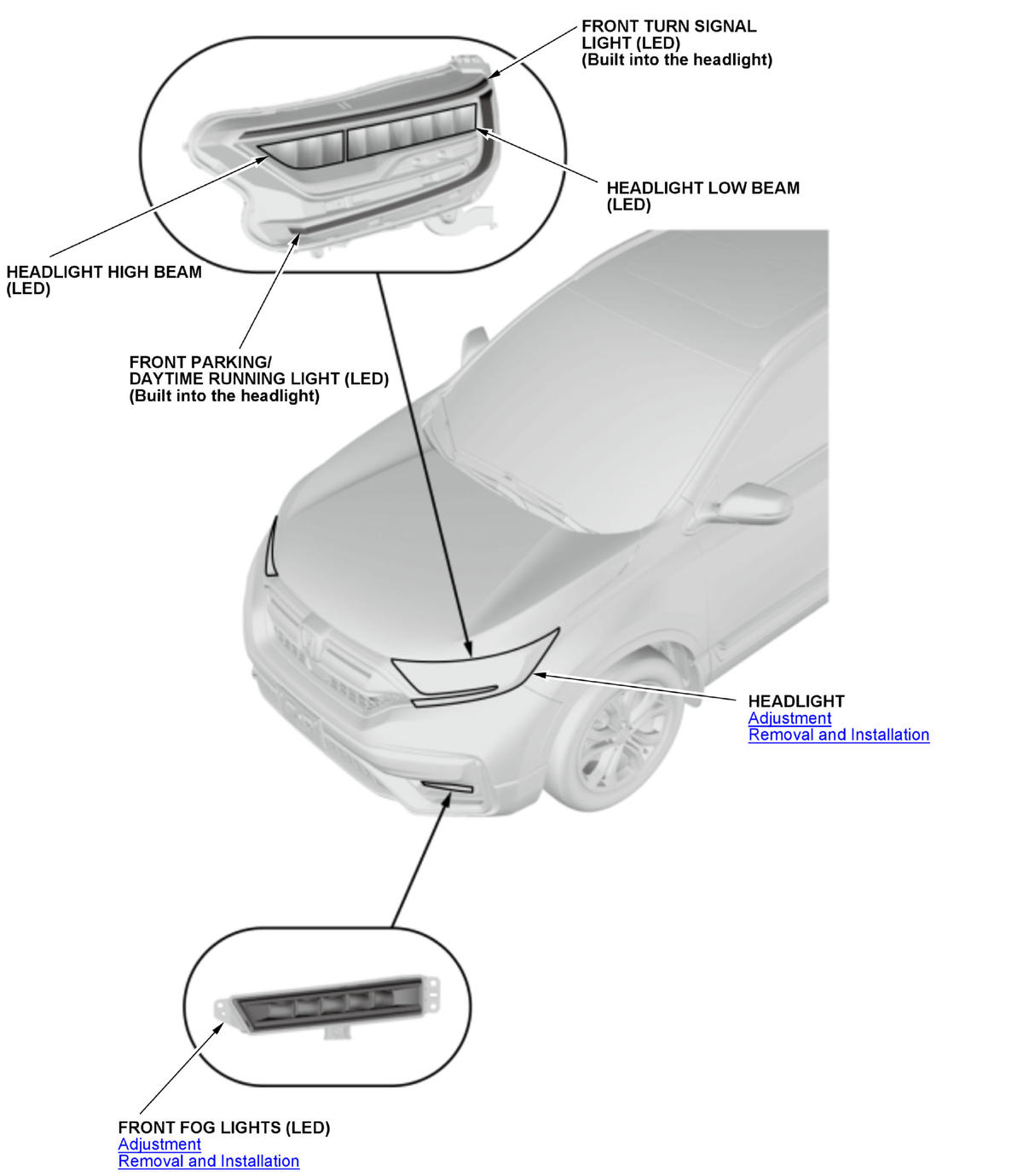

GHH378615Courtesy of HONDA, U.S.A., INC.

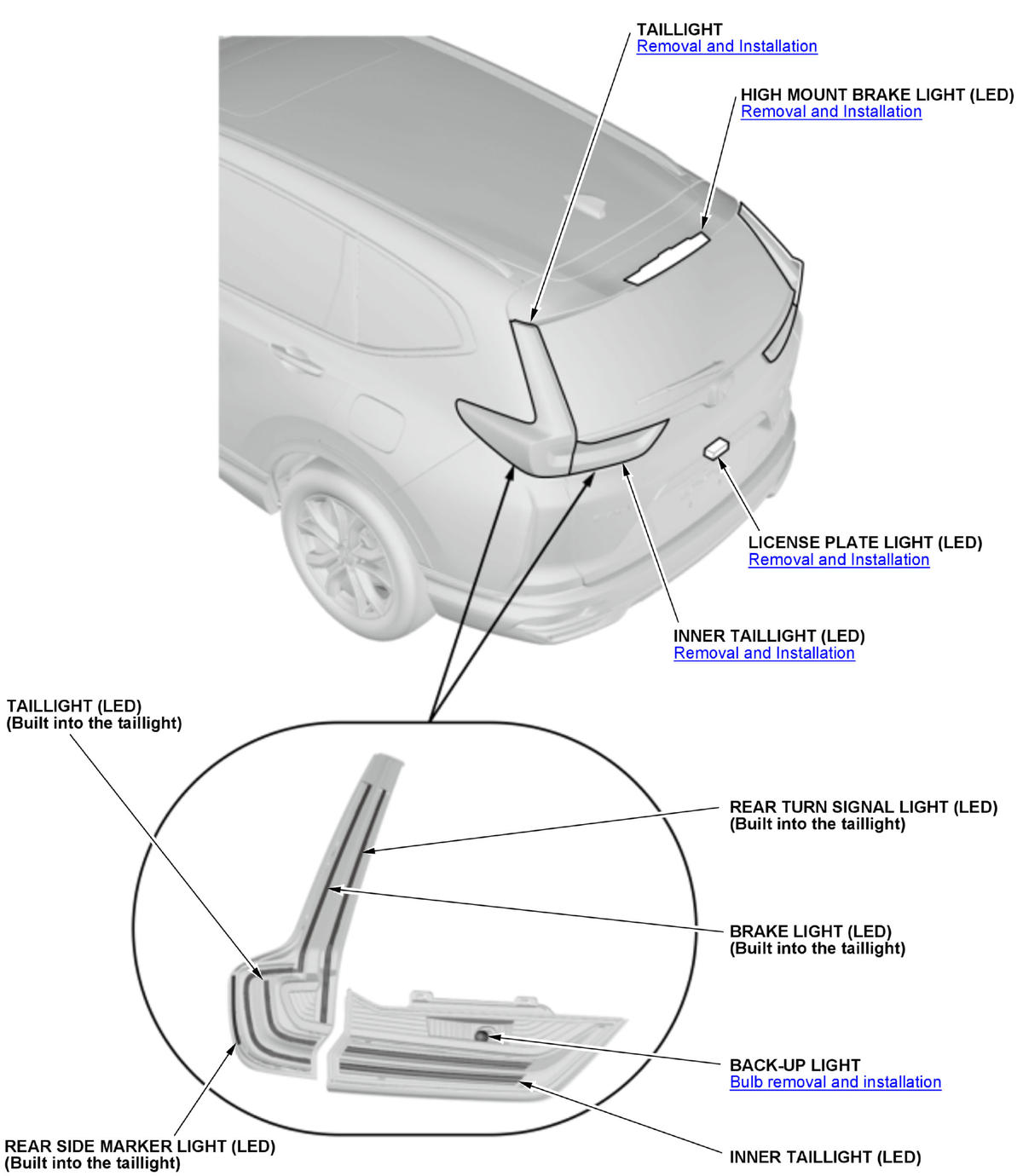

GHH378616Courtesy of HONDA, U.S.A., INC.

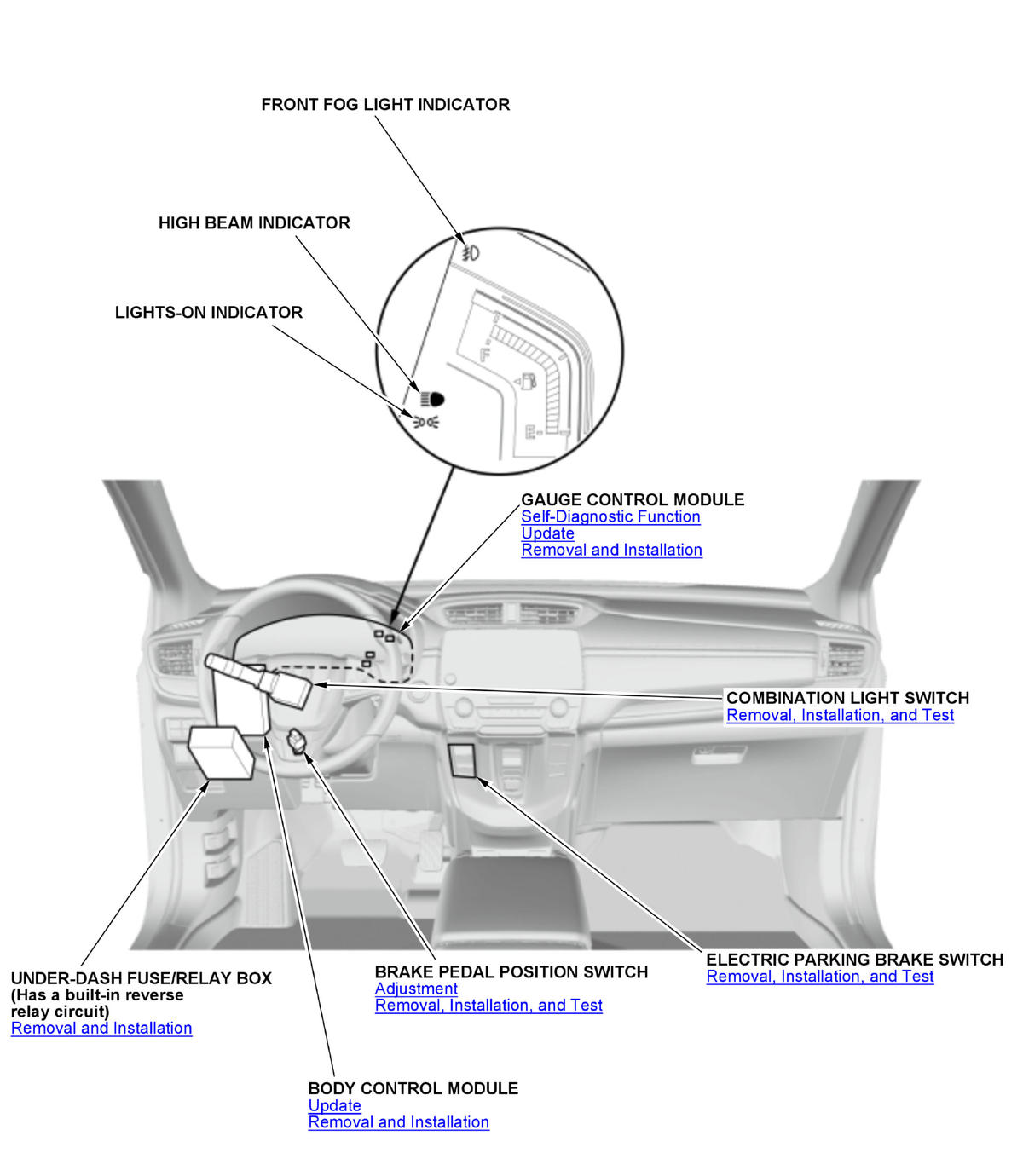

GHH378617Courtesy of HONDA, U.S.A., INC.
