Parking and Back-Up Sensor System Component Location Index

WARNING: This page is about a different variant/trim than selected.

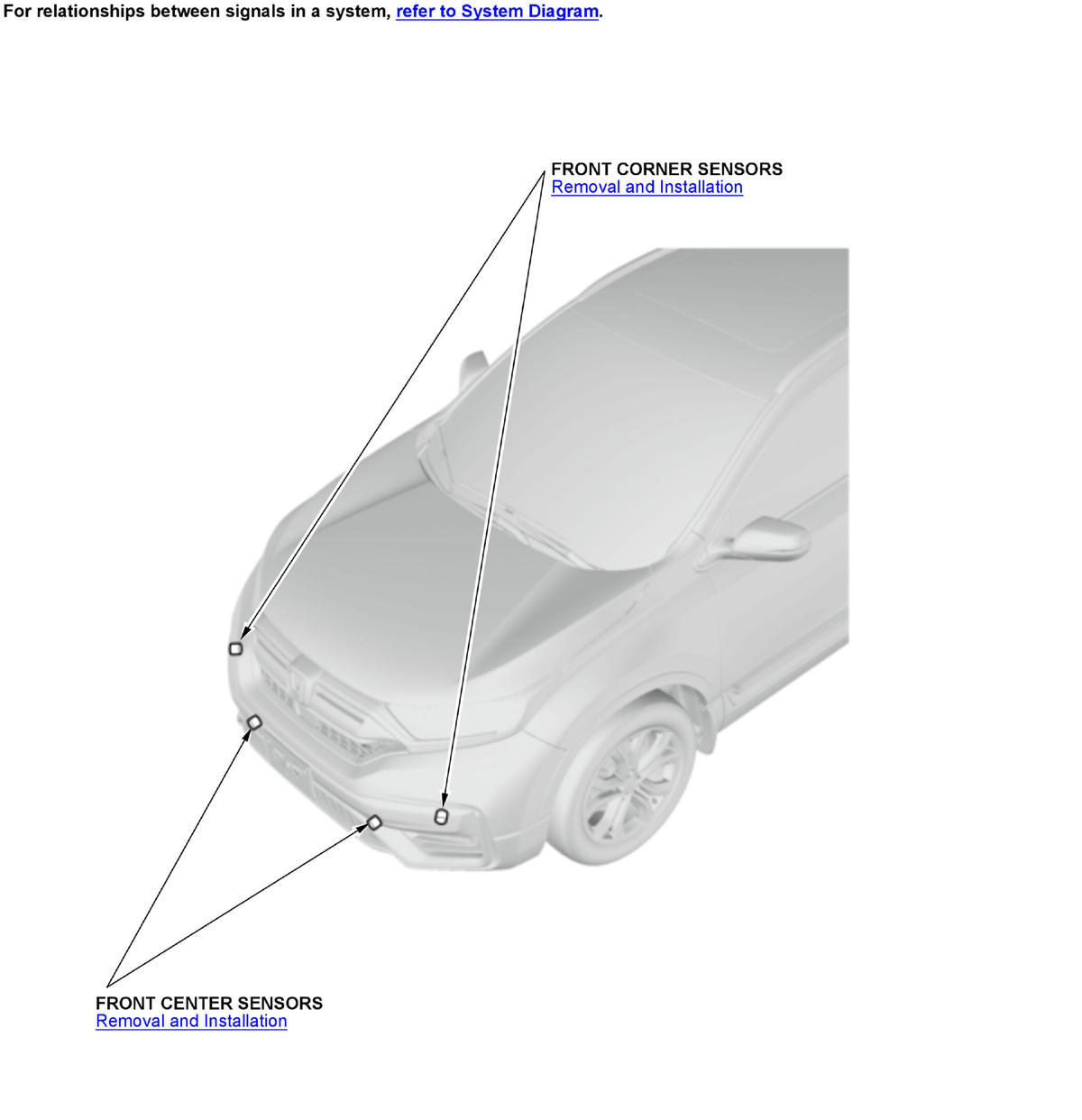

GHH379056Courtesy of HONDA, U.S.A., INC.

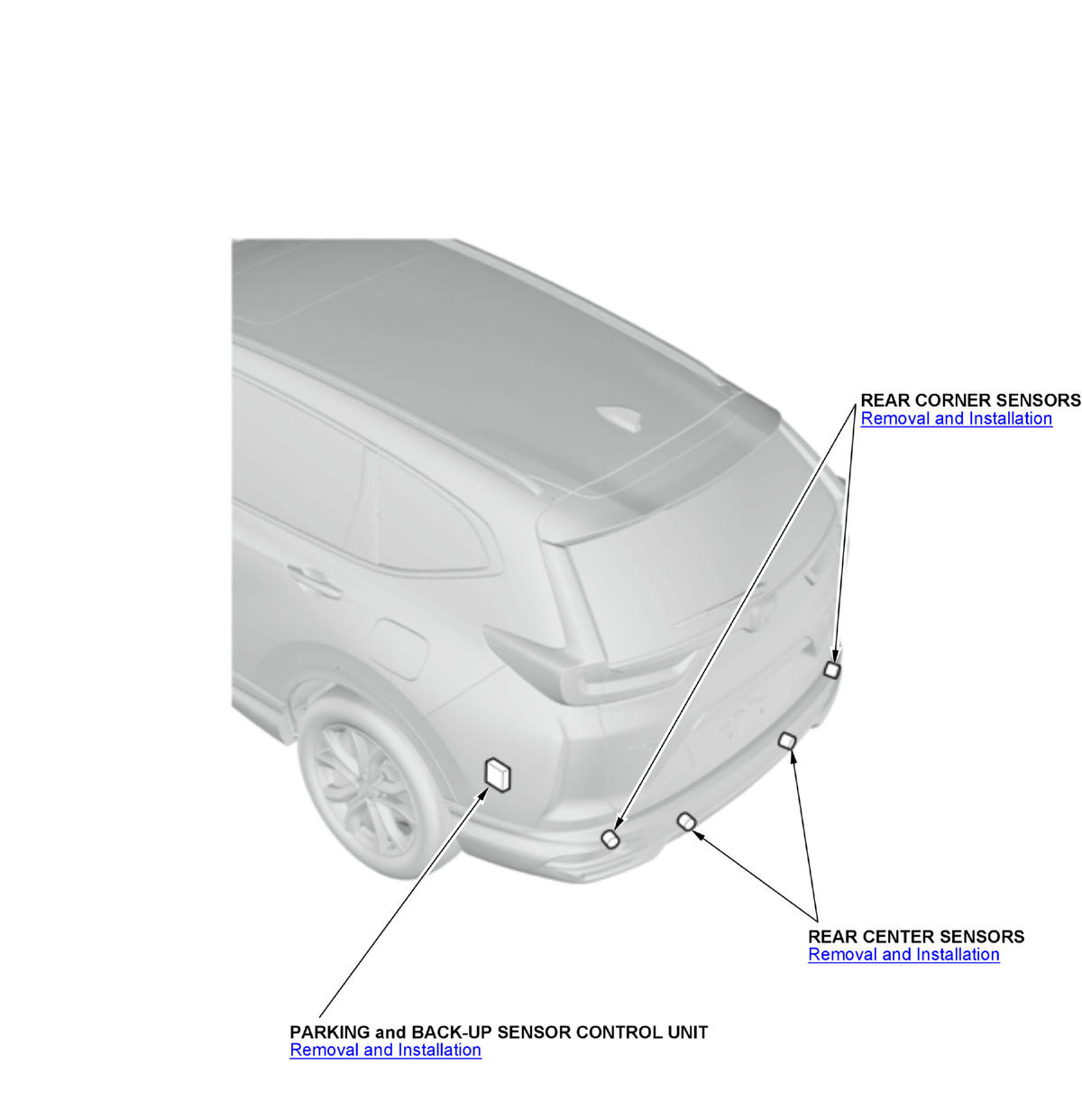

GHH379057Courtesy of HONDA, U.S.A., INC.

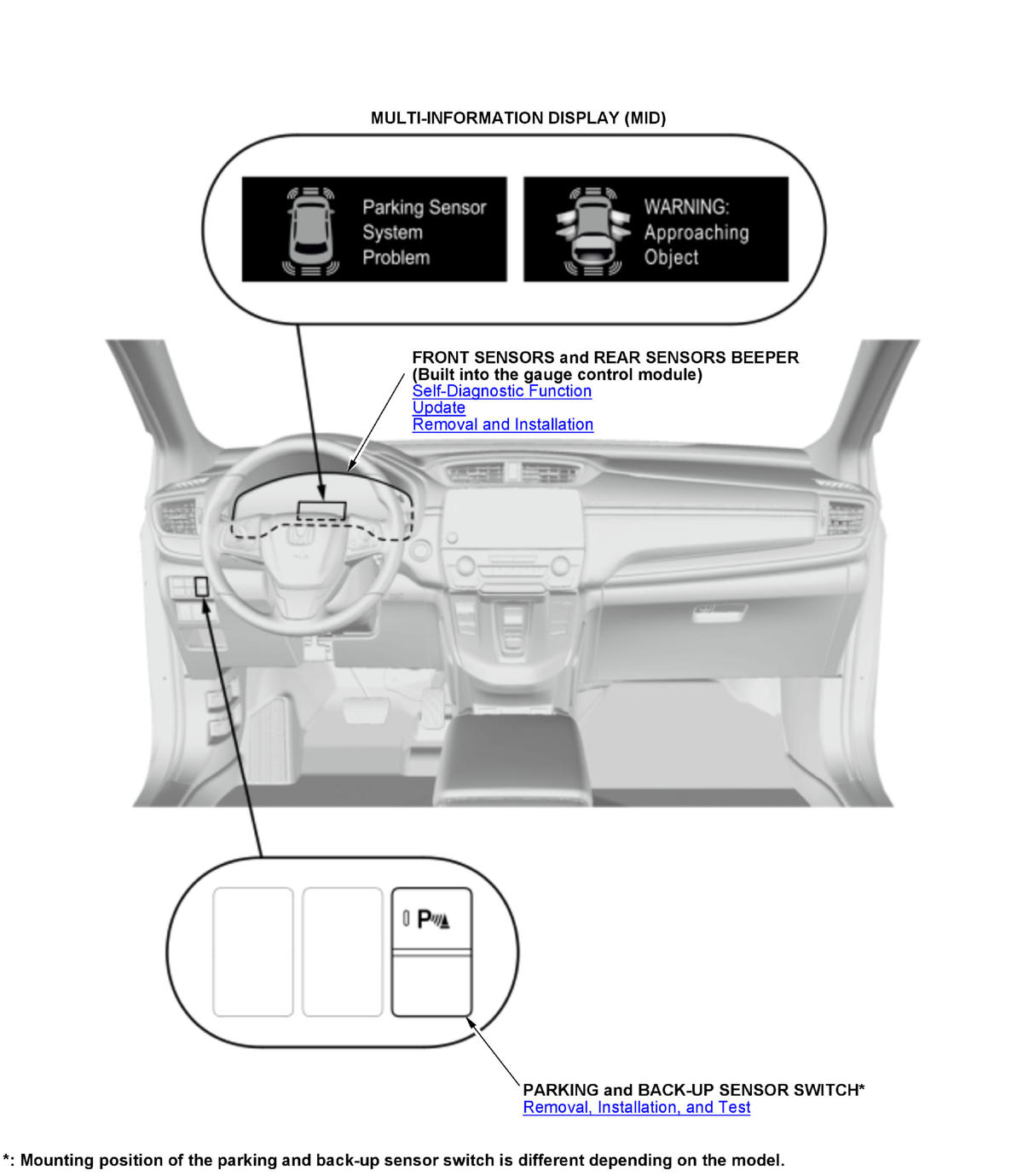

GHH379058Courtesy of HONDA, U.S.A., INC.
