Electric Parking Brake System Description - System Diagram

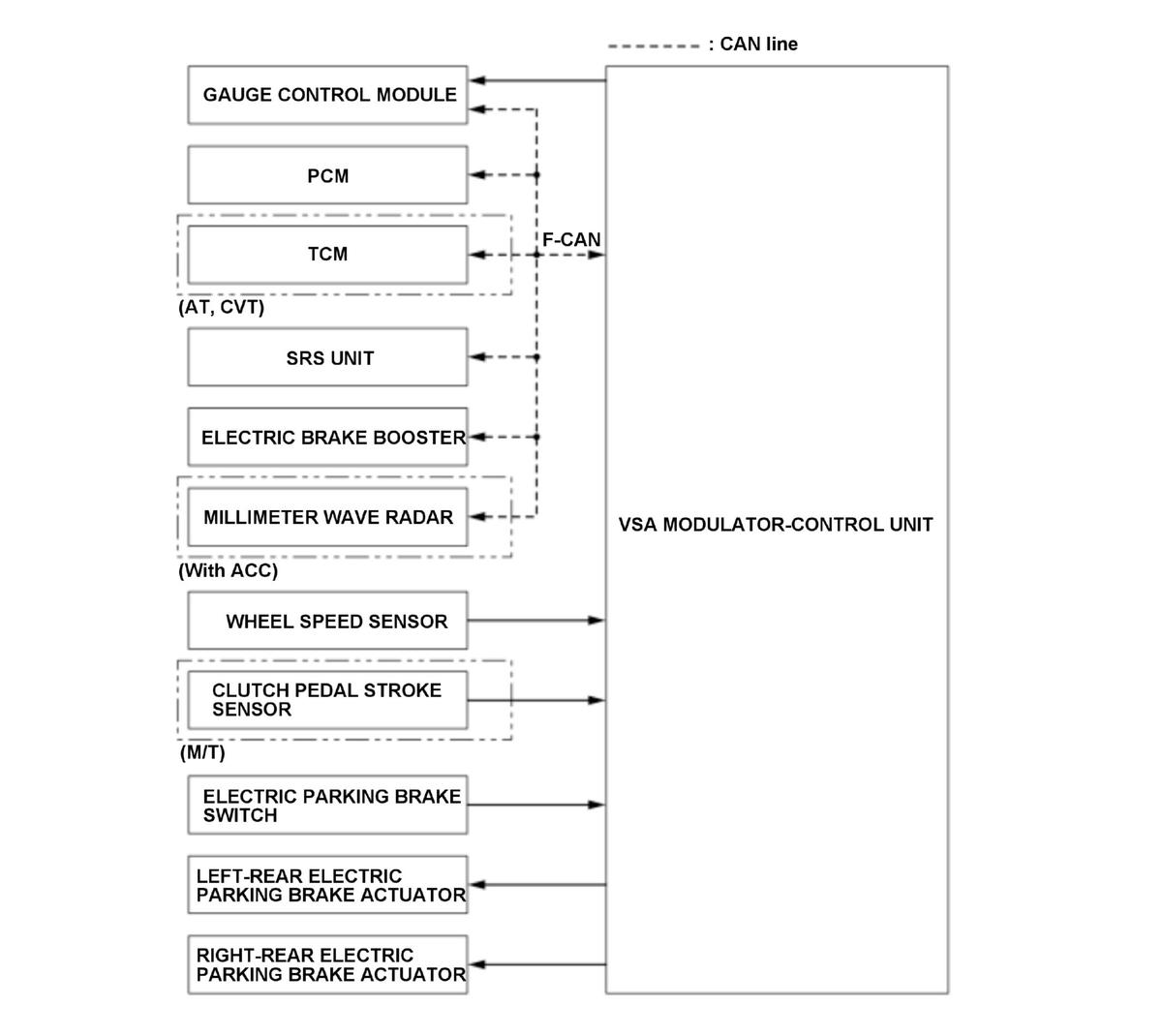

This system diagram shows the inputs and outputs of the electric parking brake system.

For locations of each component on vehicle, refer to Component Location Index:

Courtesy of HONDA, U.S.A., INC.

F-CAN Communication Data

Electric Parking Brake System Receiving Signal

Transmitting Unit	Signal Name
PCM	Accelerator pedal position signal Engine speed signal Engine torque signal Neutral position sensor signal *1
TCM* 2	Shift position signal
Gauge control module	Odometer data
SRS unit	Driver's seat belt buckle switch status Longitudinal acceleration signal
Electric brake booster	Parking brake apply request signal
Millimeter wave radar *3	Parking brake apply request signal

*1: M/T

*2: A/T, CVT

*3: With ACC

Electric Parking Brake System Transmitting Signal

Transmitting Unit	Signal Name
VSA modulator-control unit	Indicator drive signal Parking brake status signal System operating status signal System failure Information Clutch pedal stroke signal *1

*1: M/T
