Gauges Component Location Index

For relationships between signals in a system, refer to System Diagram .

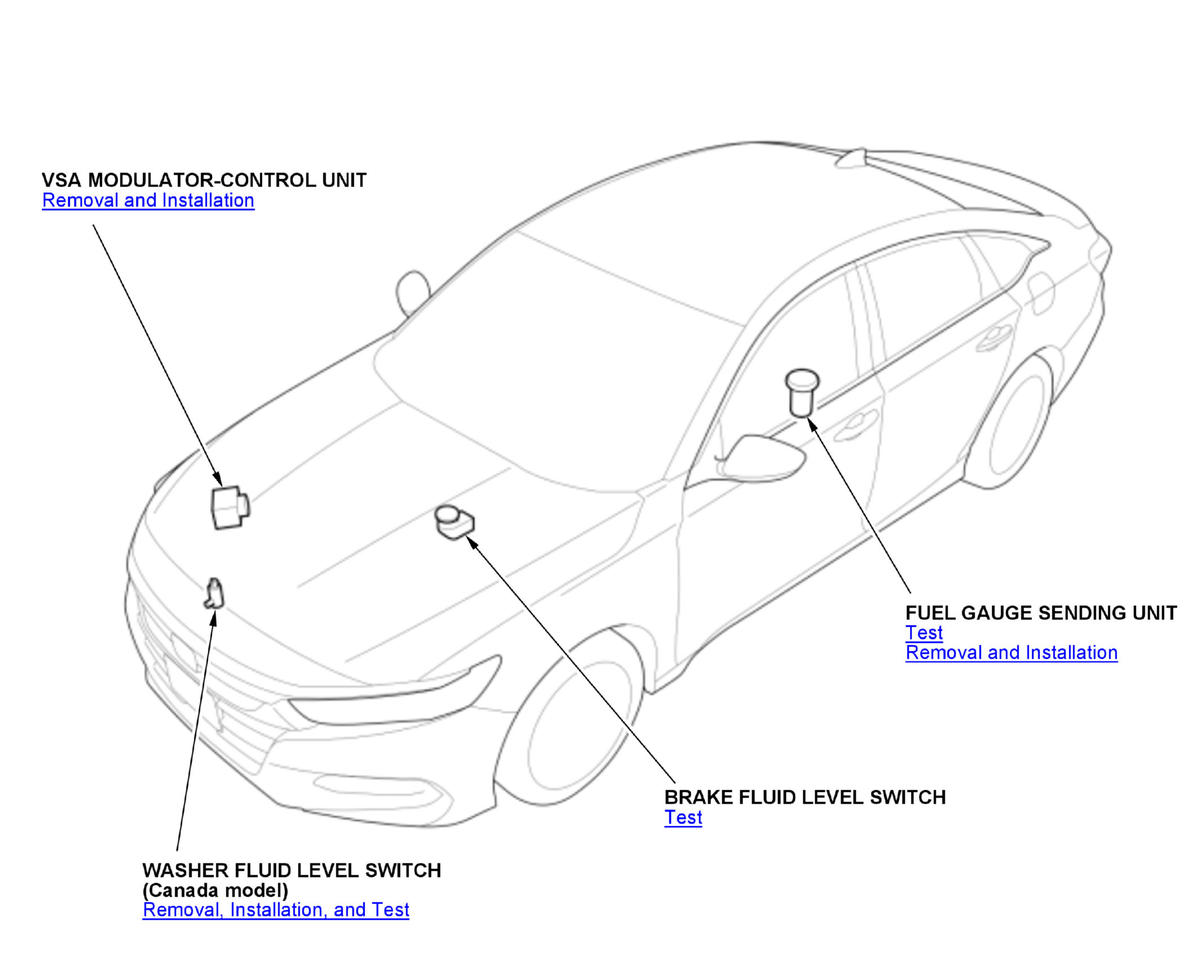

Fig 1: Gauges Component Locations (1 Of 2)
GHH395518Courtesy of HONDA, U.S.A., INC.

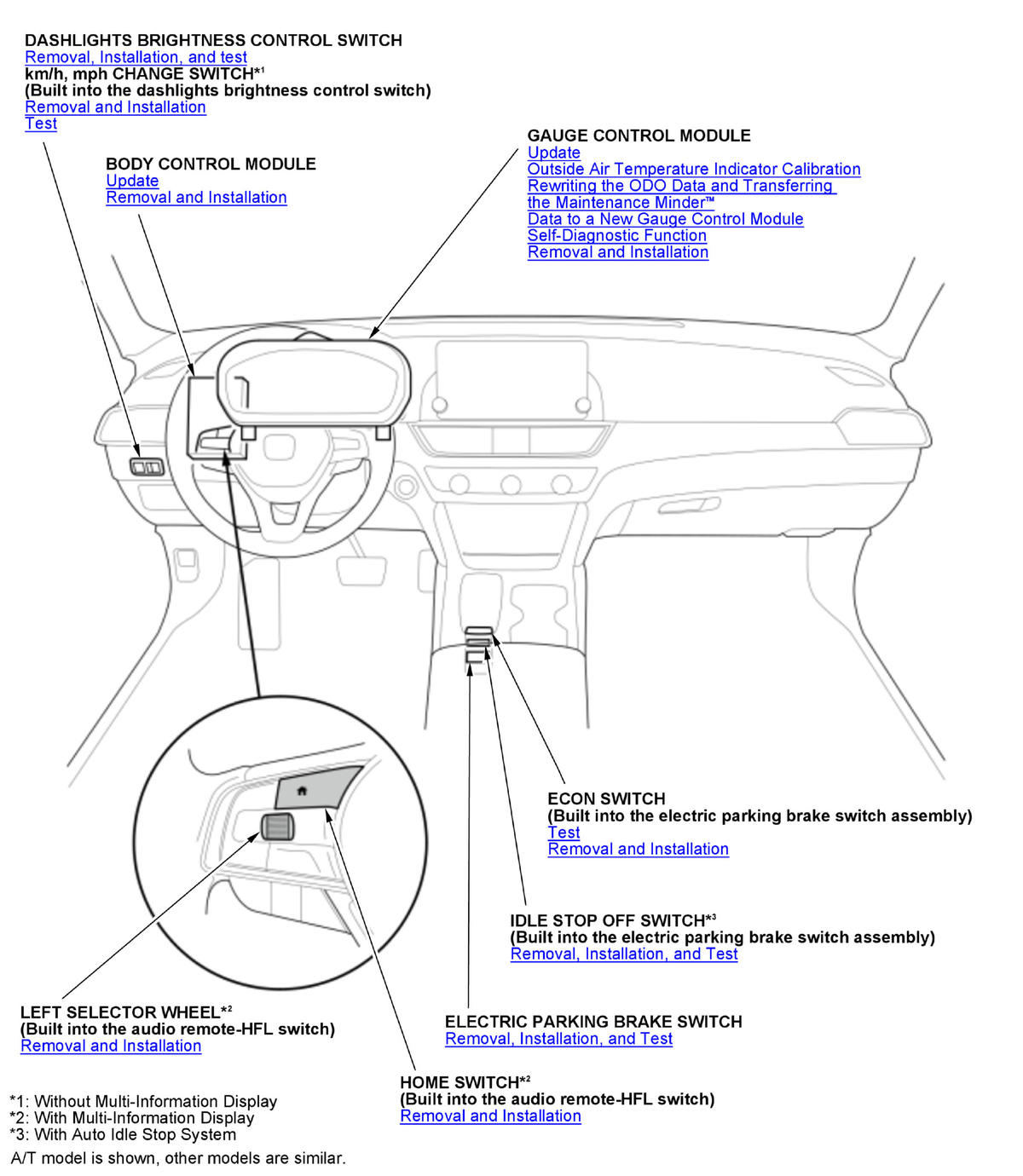

Fig 2: Gauges Component Locations (2 Of 2)
GHH395519Courtesy of HONDA, U.S.A., INC.

Without Multi-Information Display (MID)

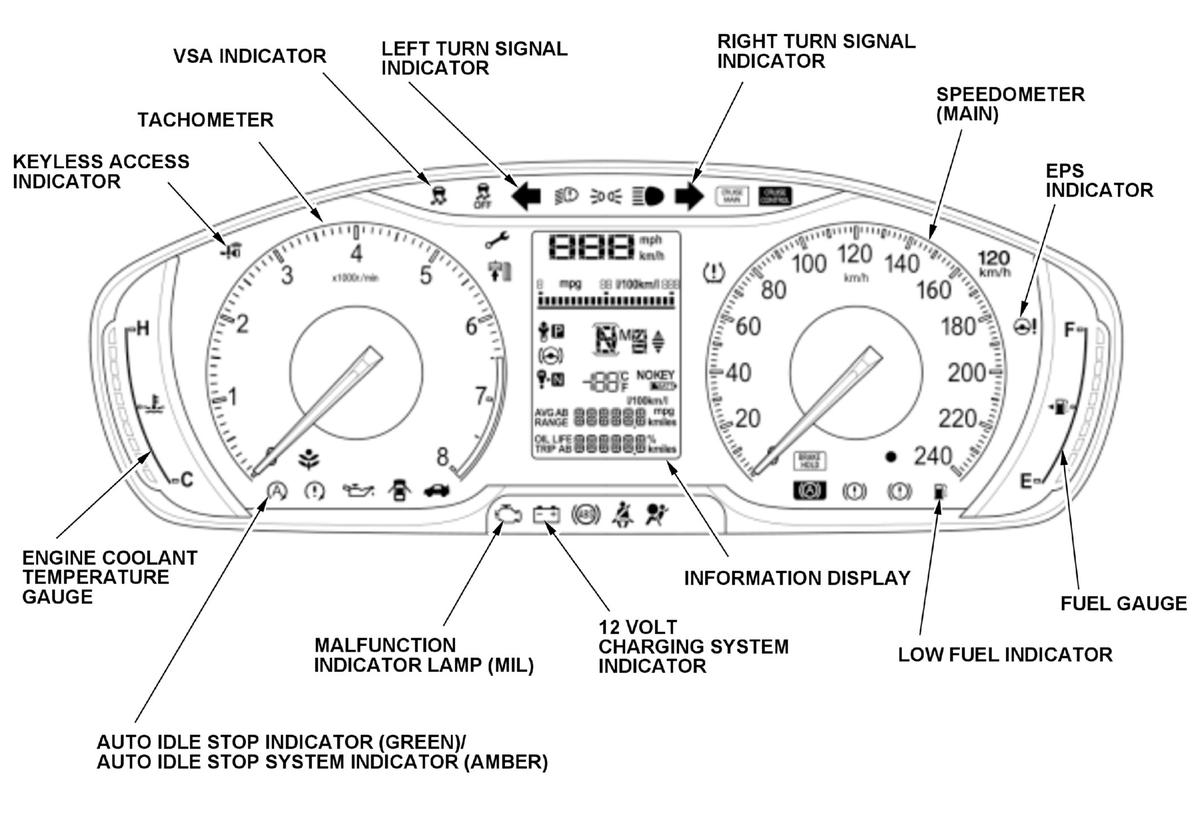

Fig 3: Gauges Component Locations (Without Multi-Information Display (MID) 1 Of 3)
GHH395520Courtesy of HONDA, U.S.A., INC.

Without Multi-Information Display (MID)

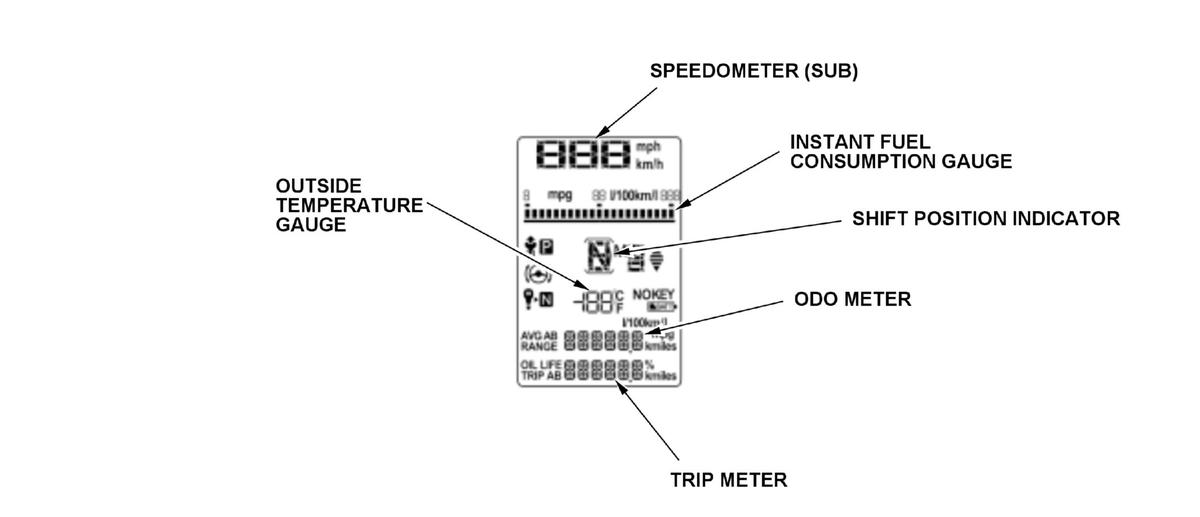

Fig 4: Gauges Component Locations (Without Multi-Information Display (MID) 2 Of 3)
GHH395521Courtesy of HONDA, U.S.A., INC.

Without Multi-Information Display (MID)

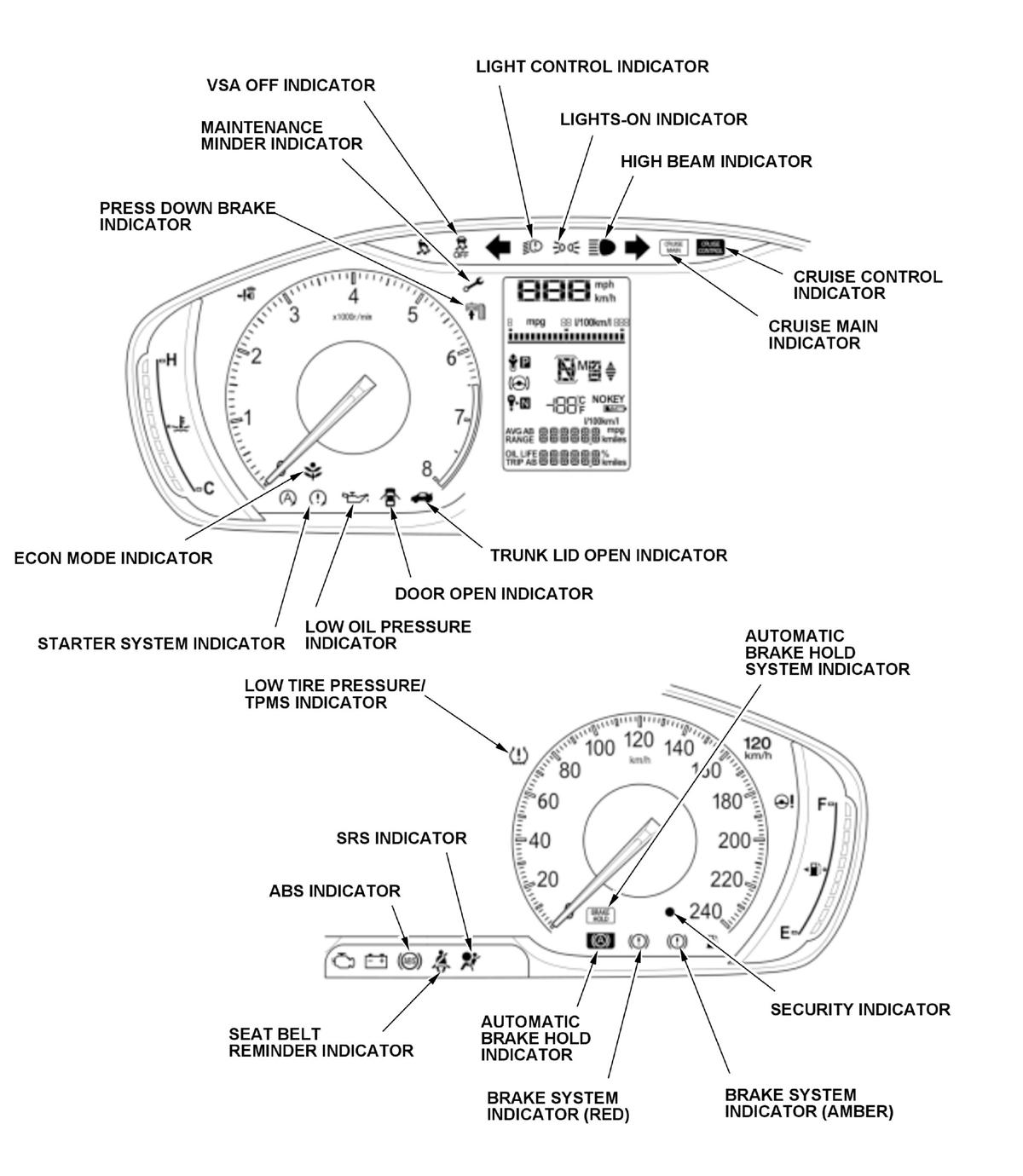

Fig 5: Gauges Component Locations (Without Multi-Information Display (MID) 3 Of 3)
GHH395522Courtesy of HONDA, U.S.A., INC.

With Multi-Information Display (MID)

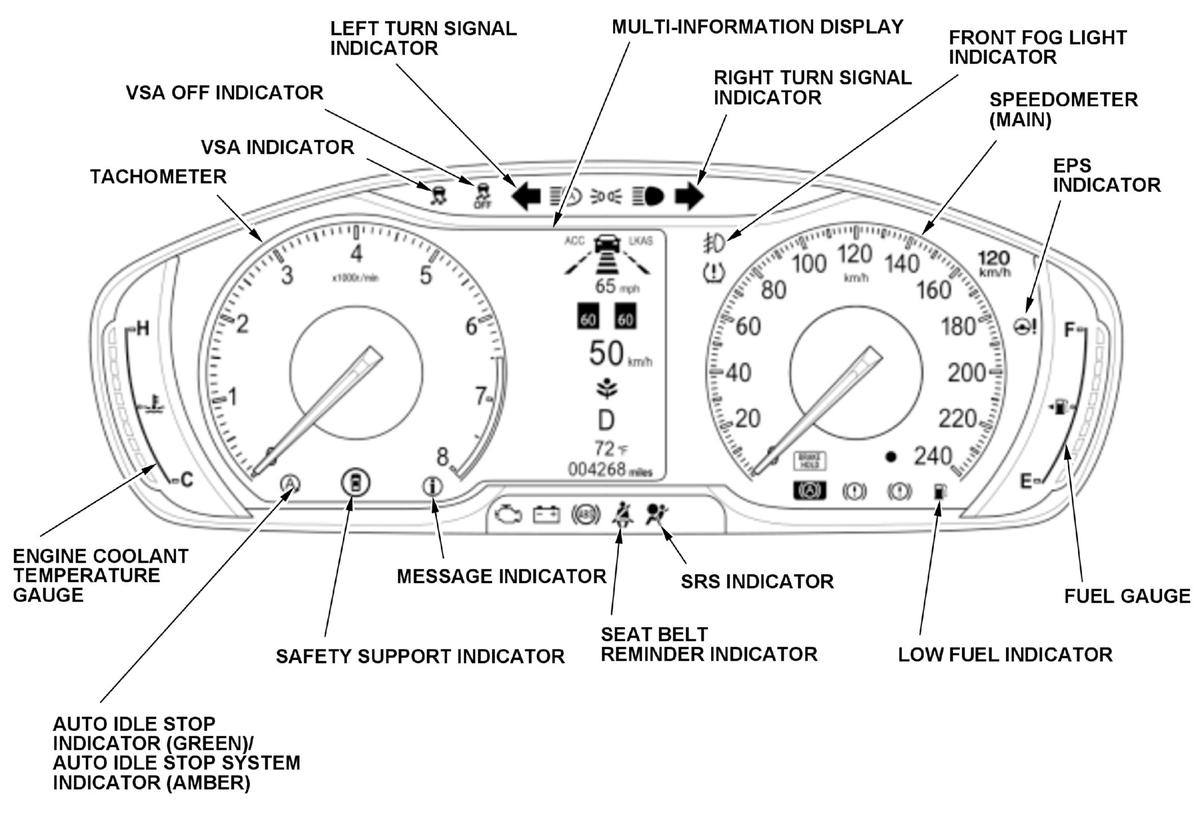

Fig 6: Gauges Component Locations (With Multi-Information Display (MID) 1 Of 2)
GHH395523Courtesy of HONDA, U.S.A., INC.

With Multi-Information Display (MID)

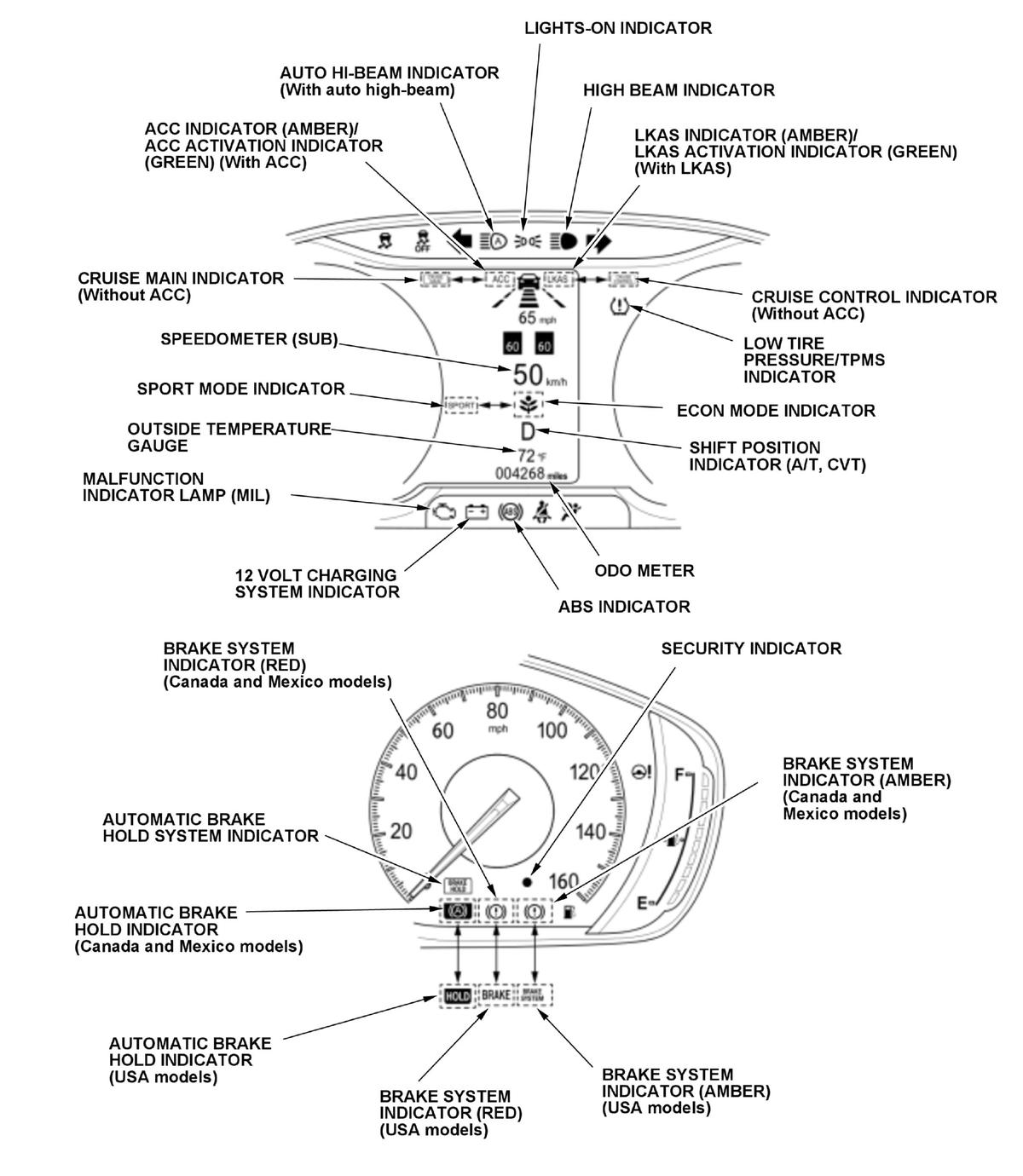

Fig 7: Gauges Component Locations (With Multi-Information Display (MID) 2 Of 2)
GHH395524Courtesy of HONDA, U.S.A., INC.
