Collision Mitigation Braking System (CMBS) Component Location Index

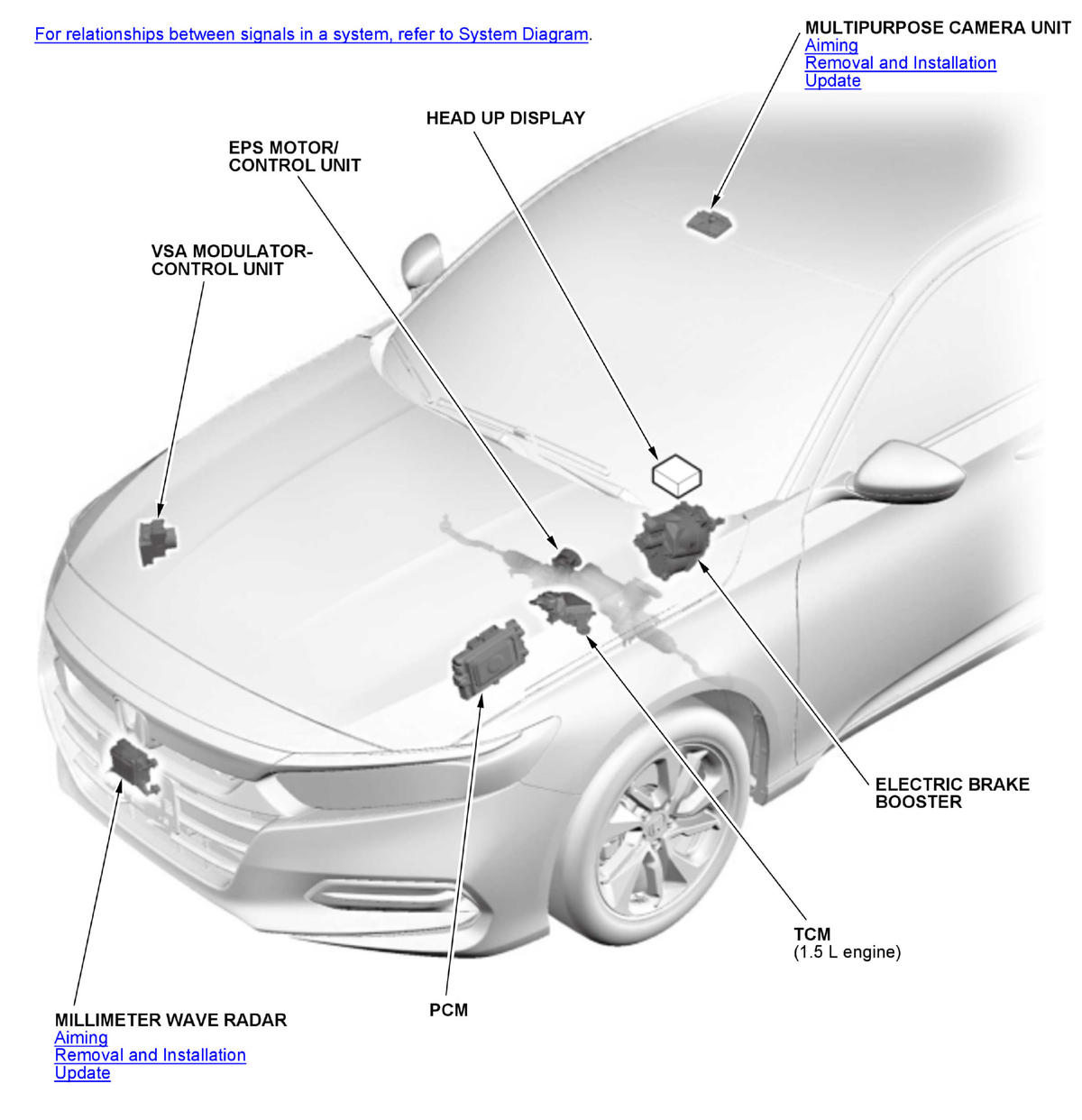

Fig 1: Collision Mitigation Braking System (CMBS) Component Locations (1 Of 2)

Courtesy of HONDA, U.S.A., INC.

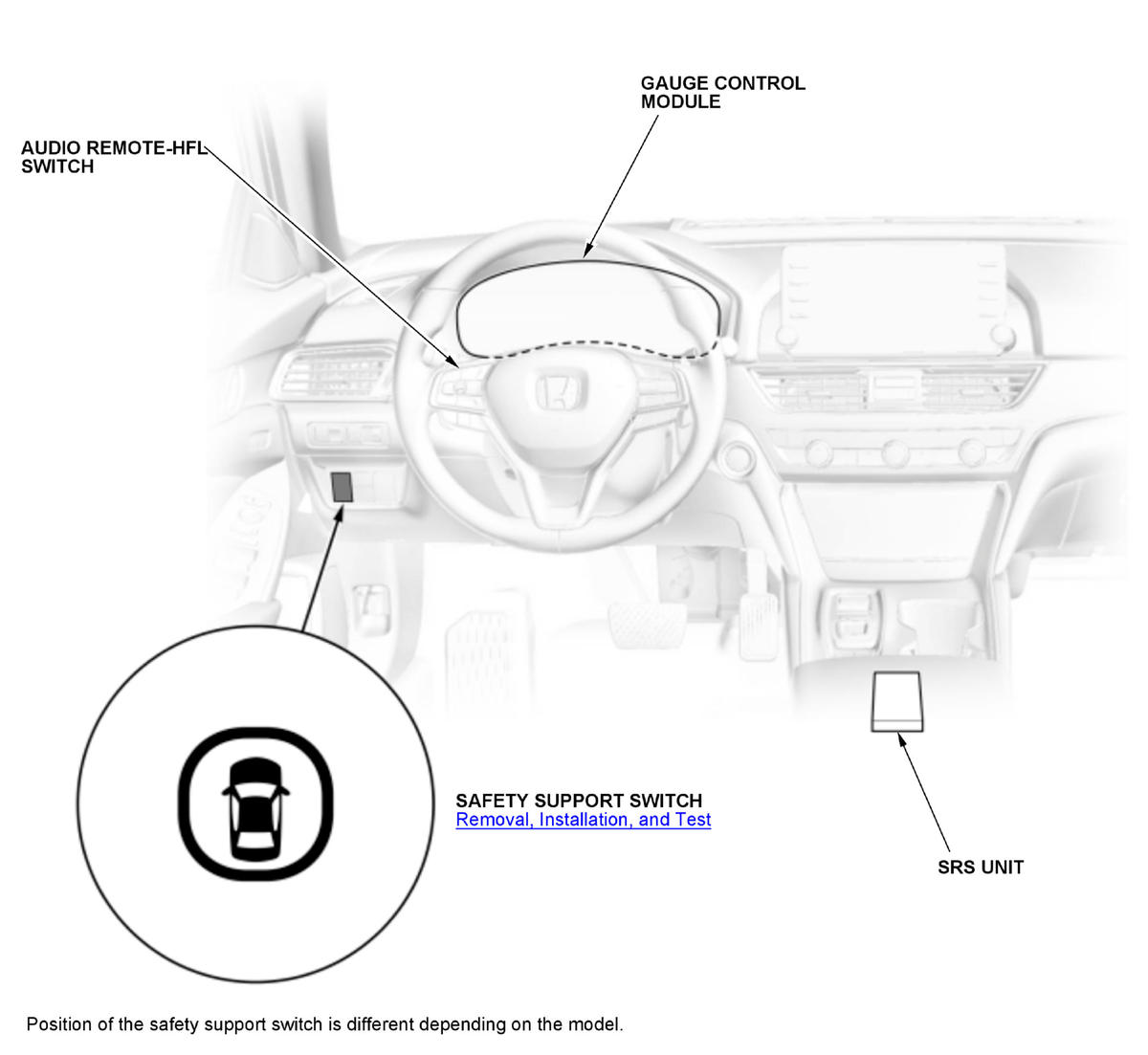

Fig 2: Collision Mitigation Braking System (CMBS) Component Locations (2 Of 2)

Courtesy of HONDA, U.S.A., INC.
