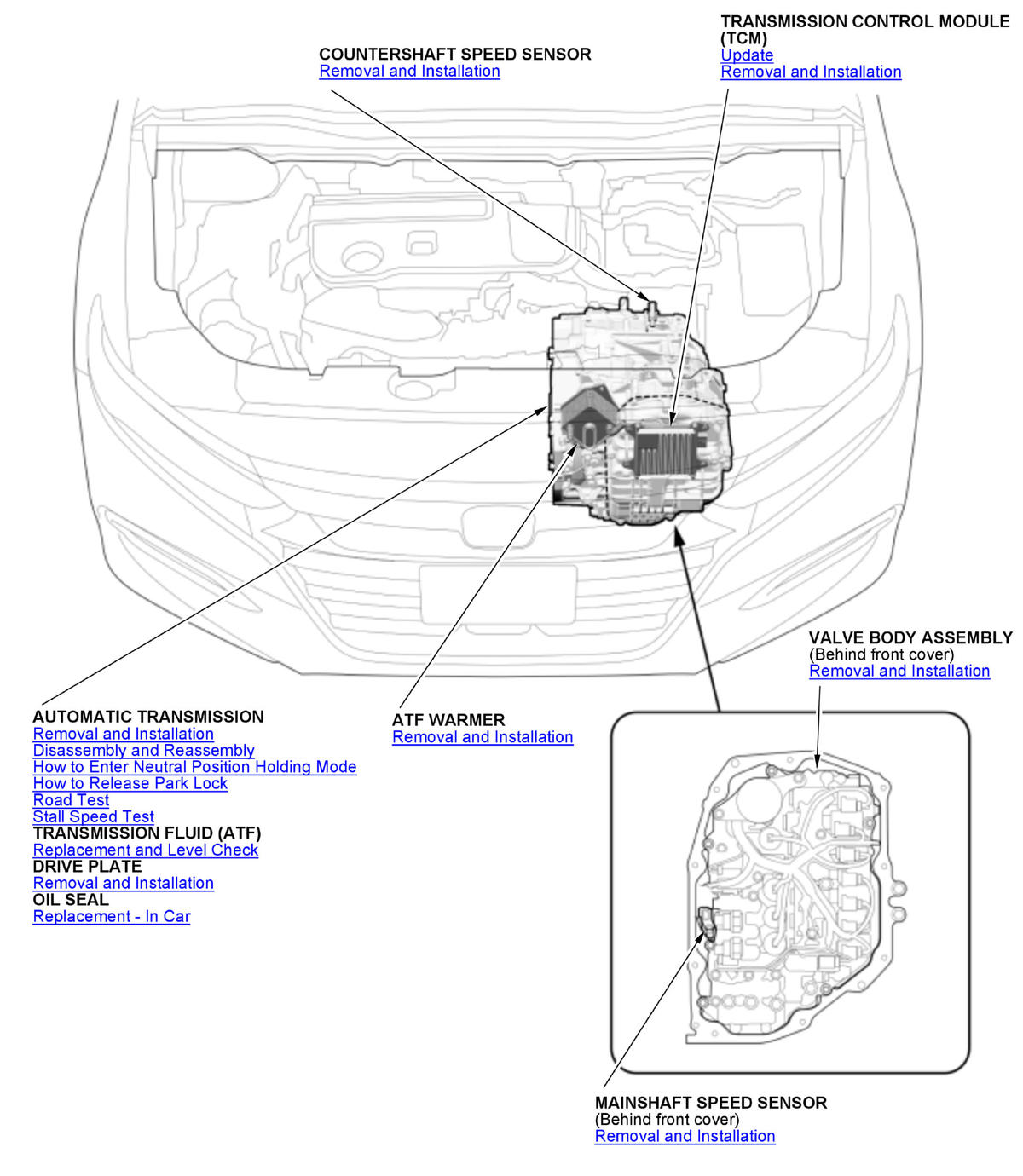

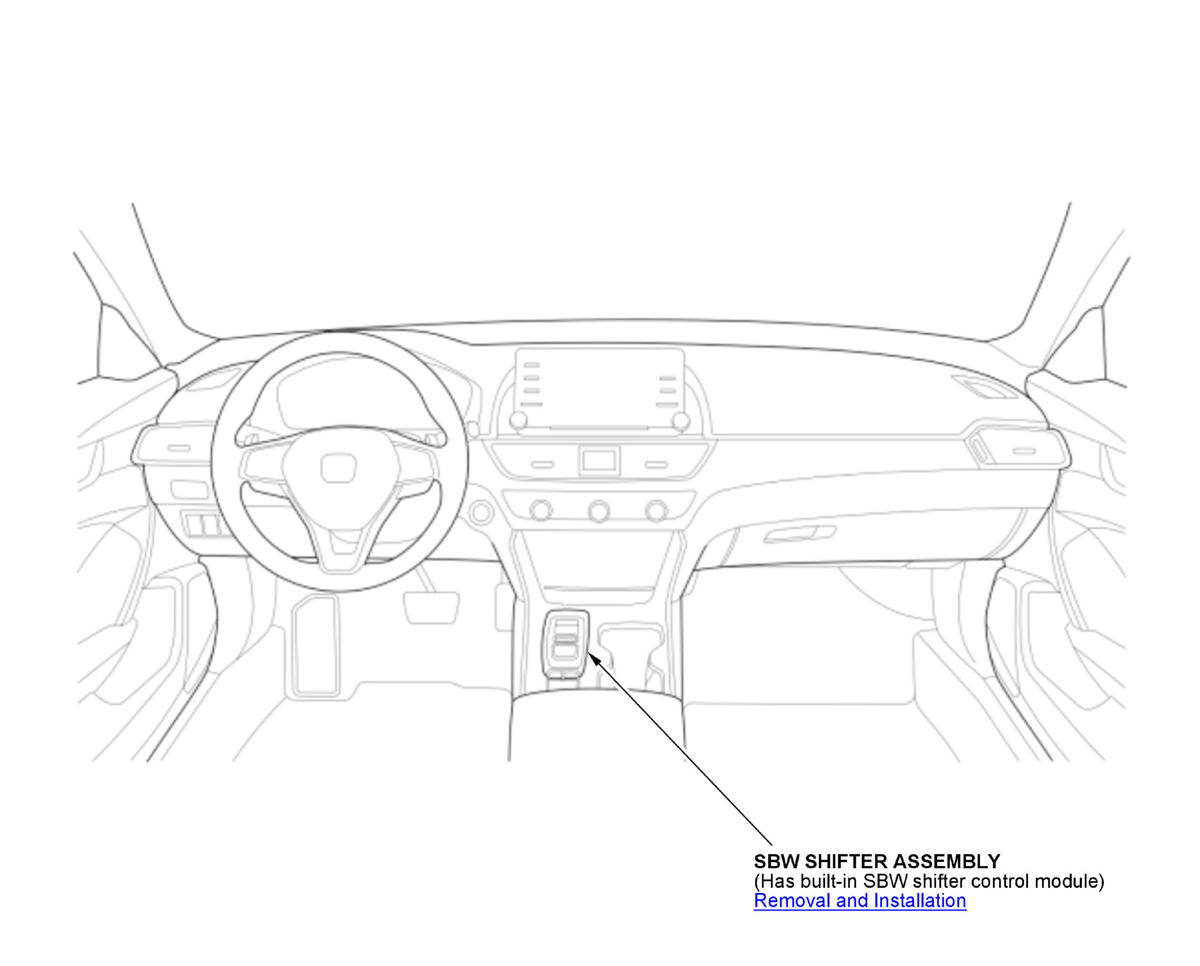

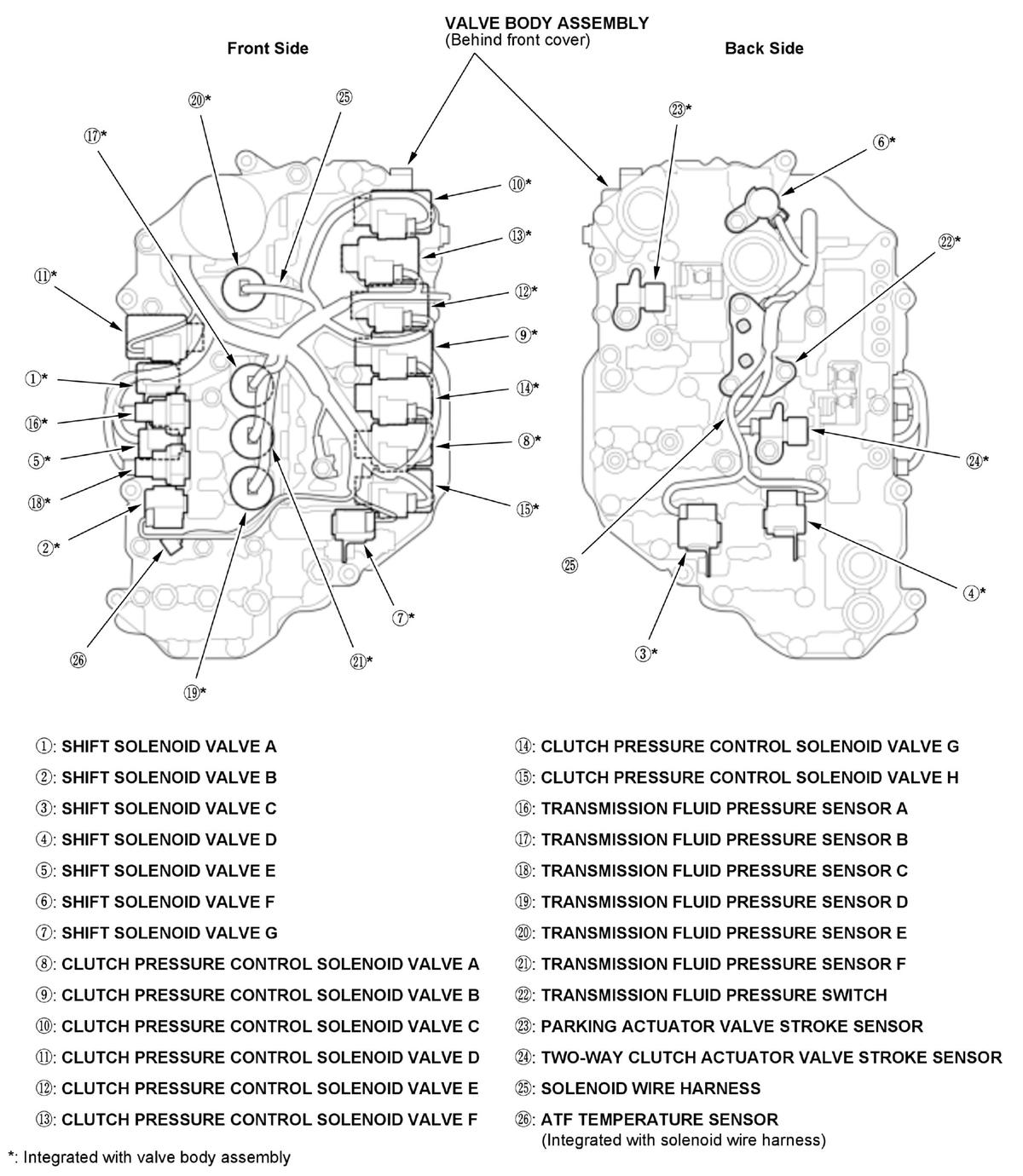

Automatic Transmission Component Location Index (A/T)

For relationships between signals in a system, refer to System Diagram .

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.
