Fuel and Emissions Systems Component Location Index

1.5 L Engine

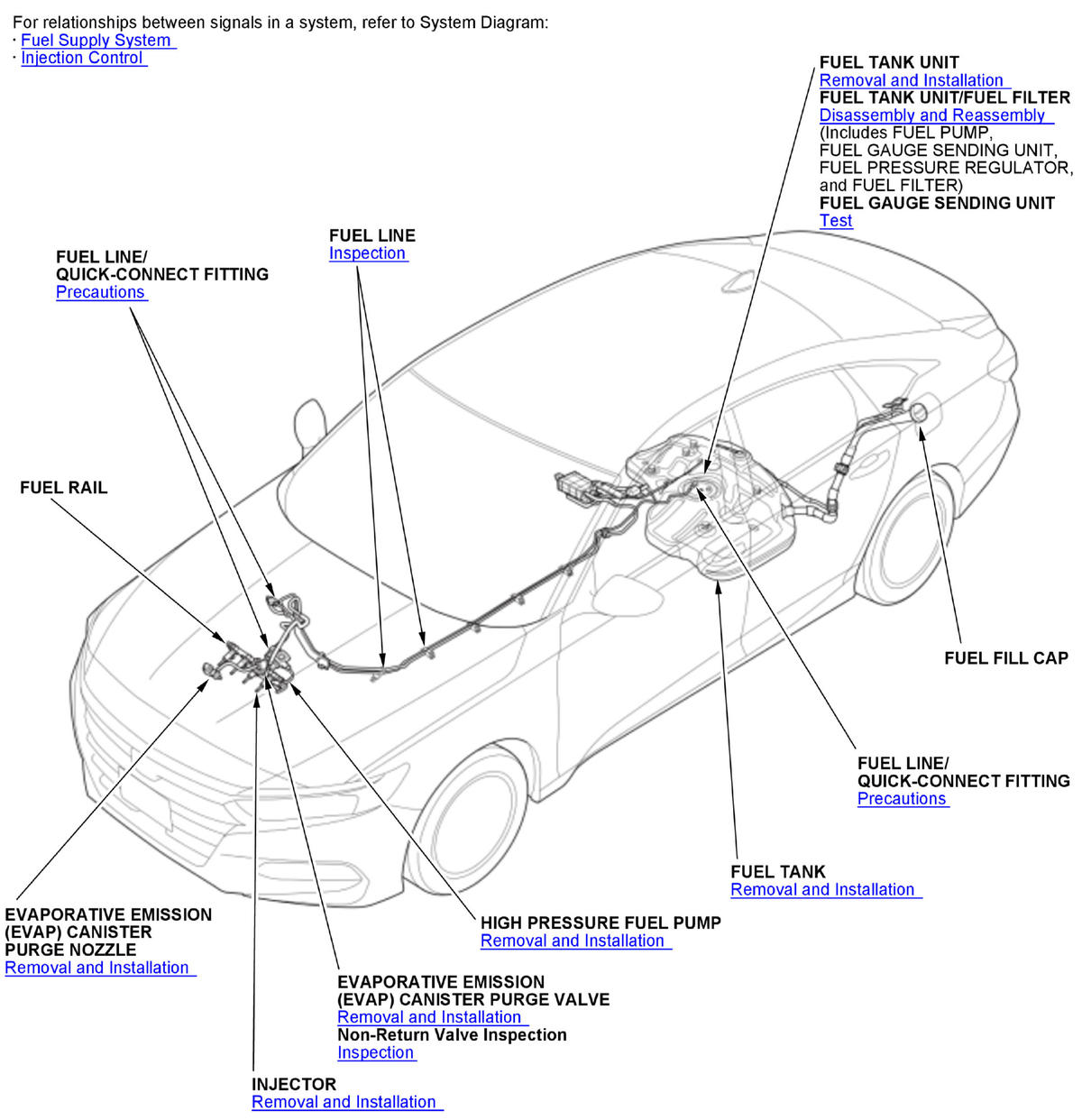

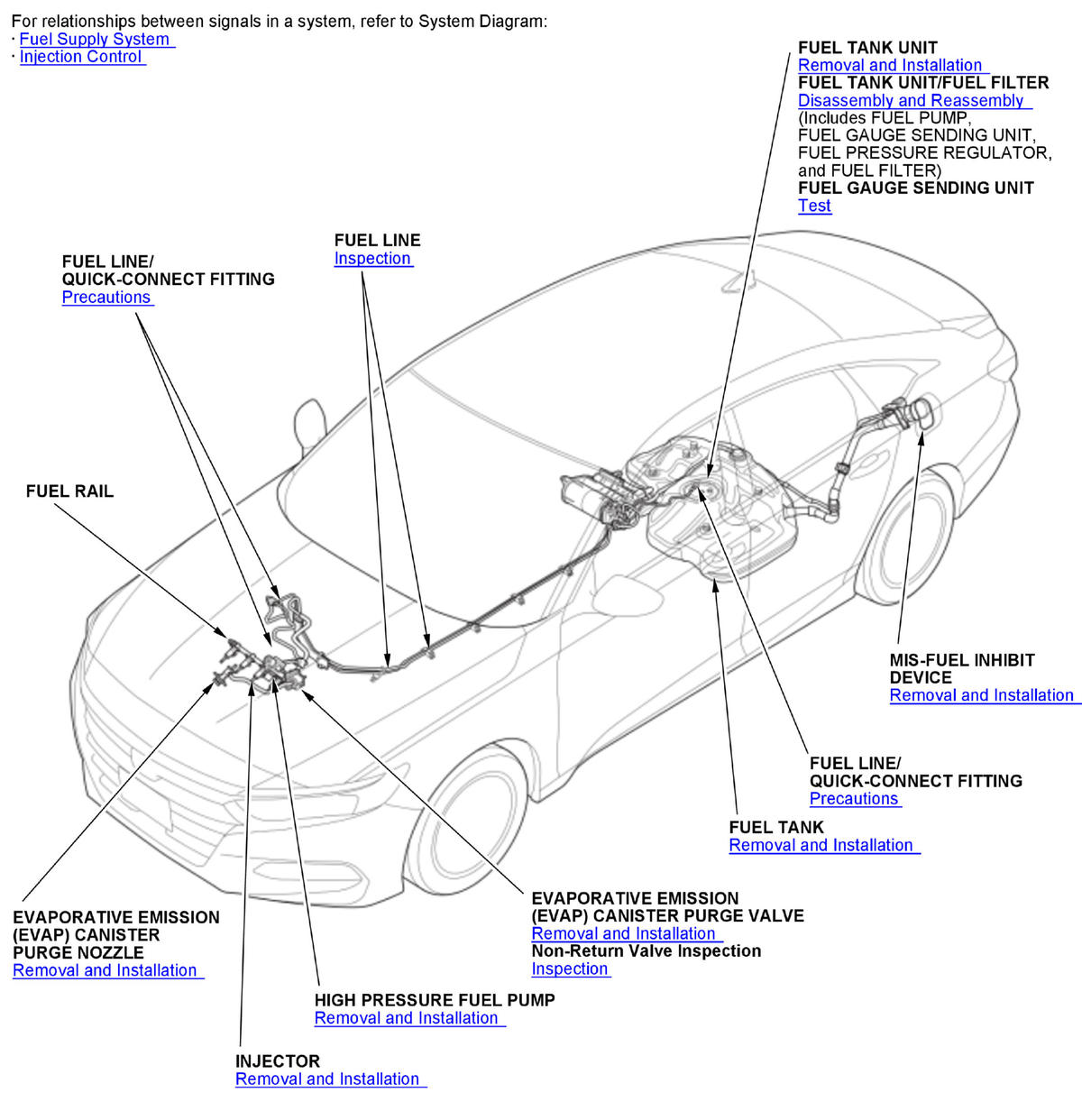

Fig 1: Fuel and Emissions Systems Component Locations (1.5 L Engine 1 Of 2)

Courtesy of HONDA, U.S.A., INC.

1.5 L Engine

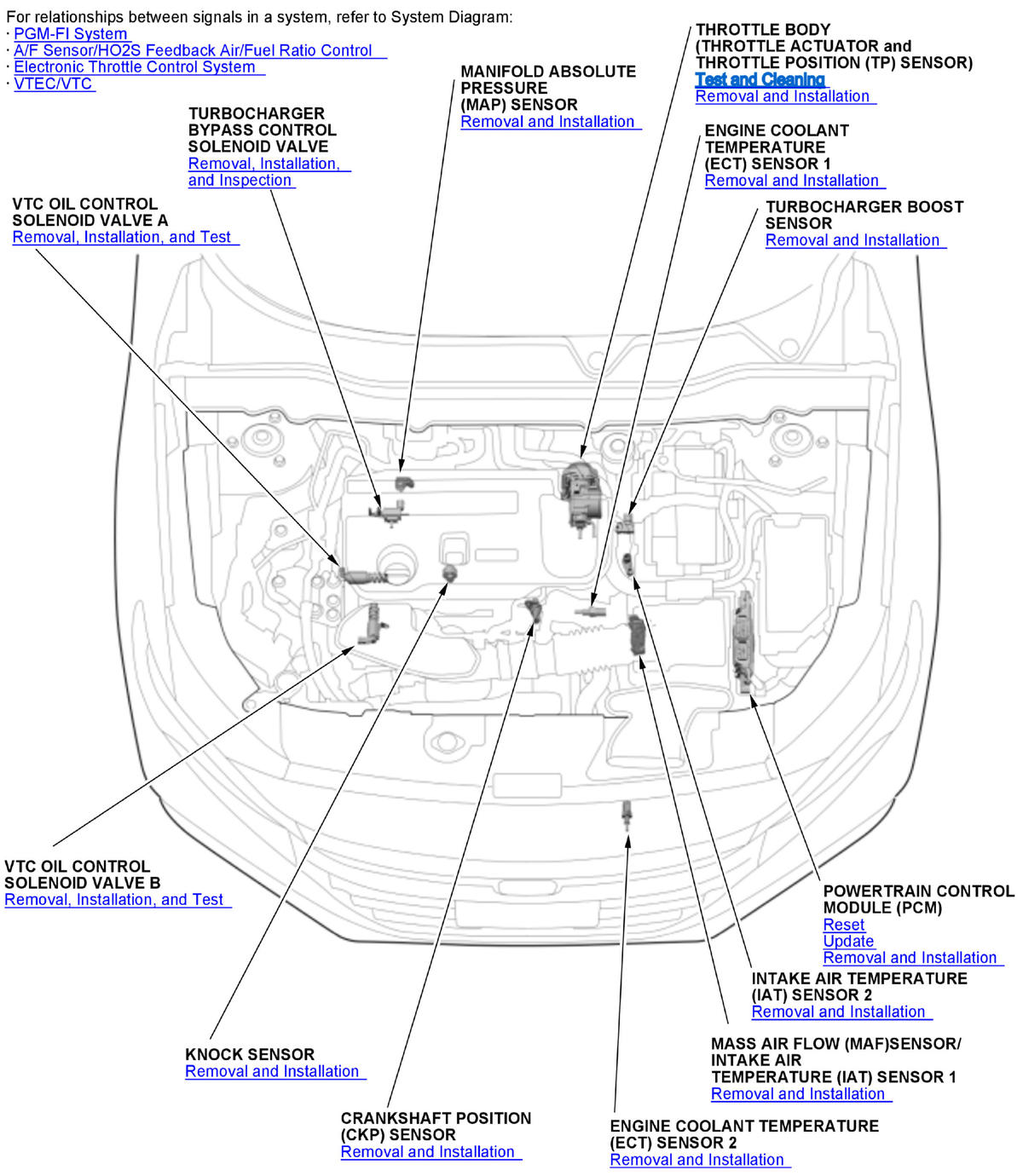

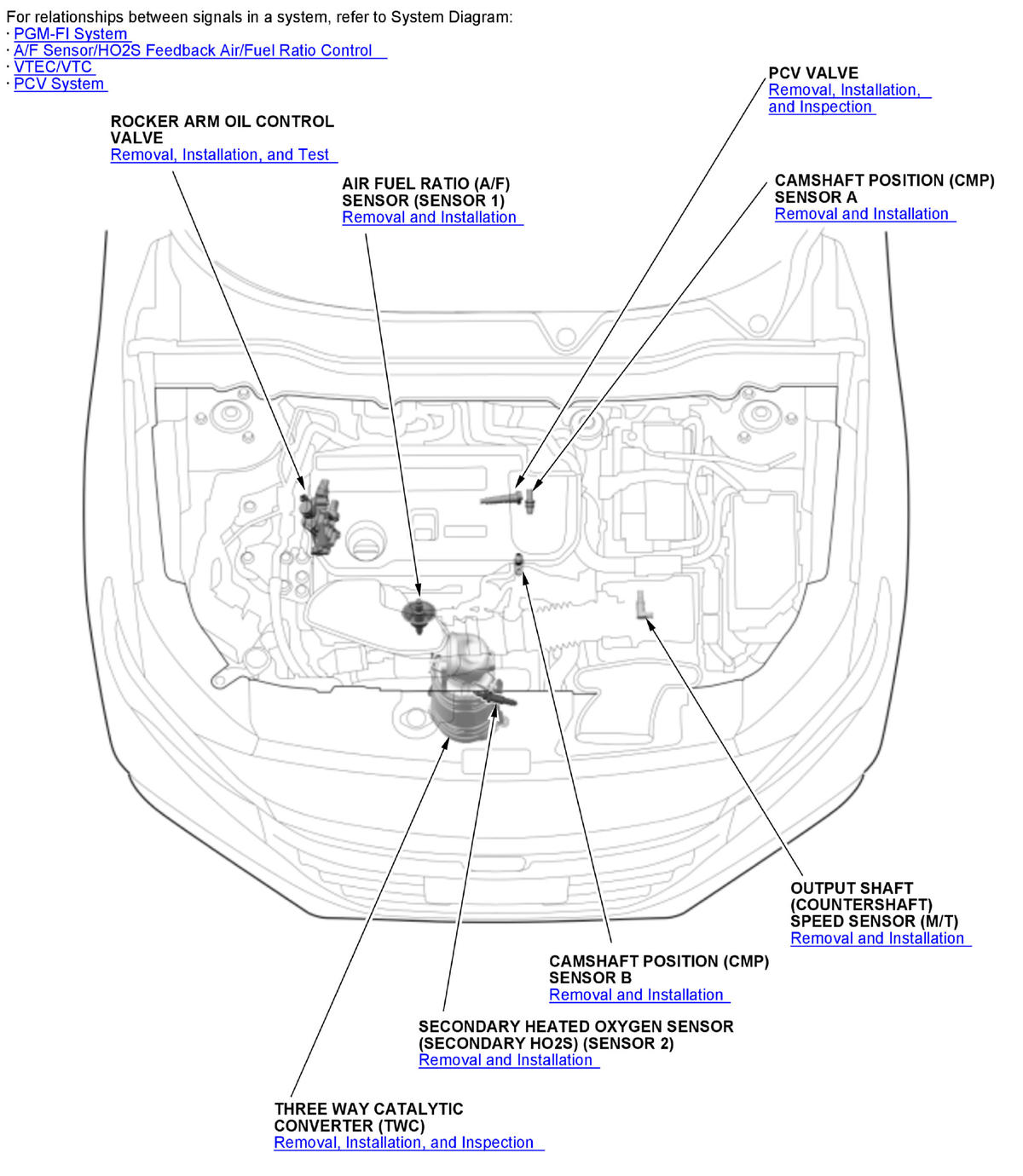

Fig 2: Fuel and Emissions Systems Component Locations (1.5 L Engine 2 Of 2)

Courtesy of HONDA, U.S.A., INC.

2.0 L Engine

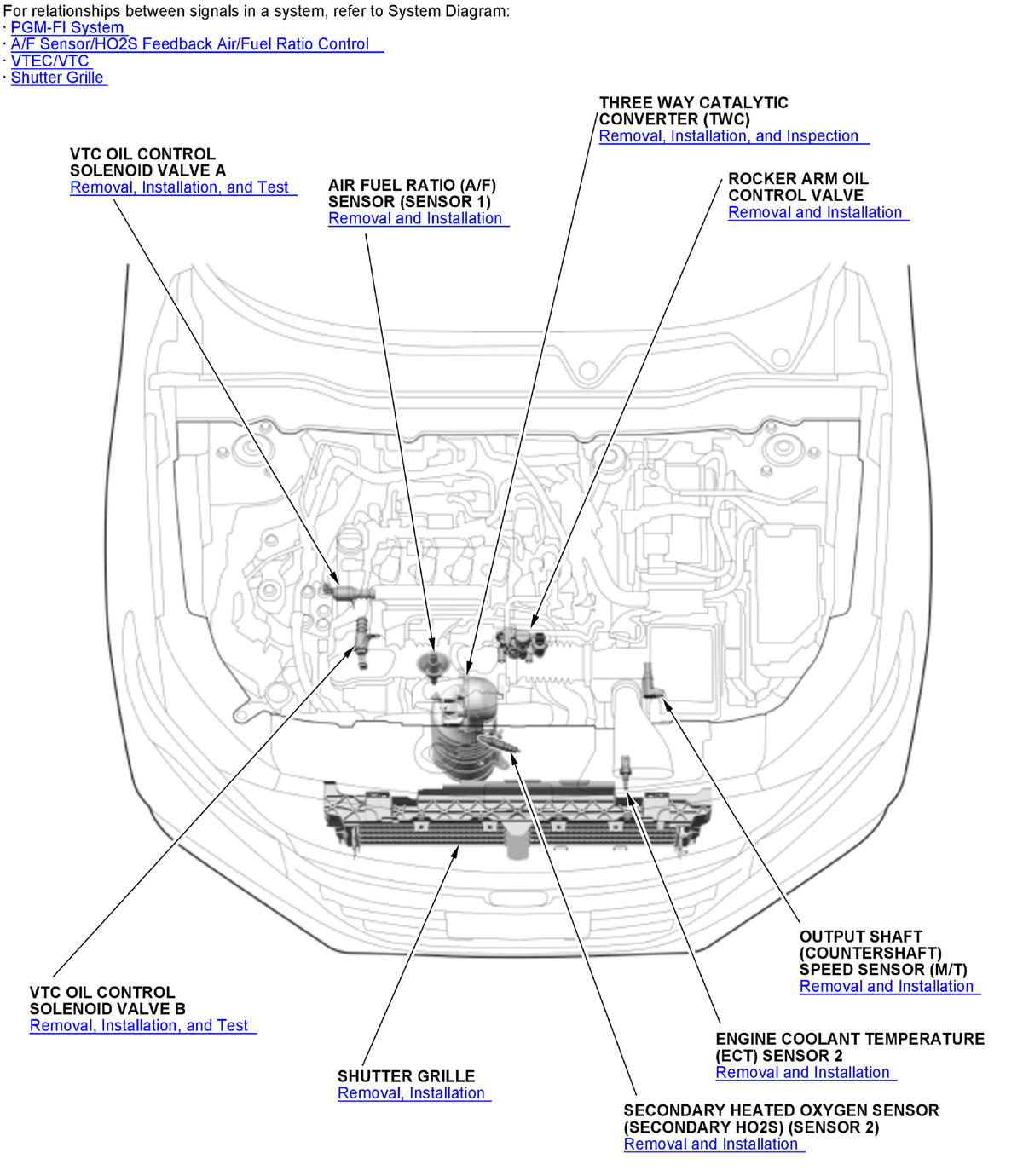

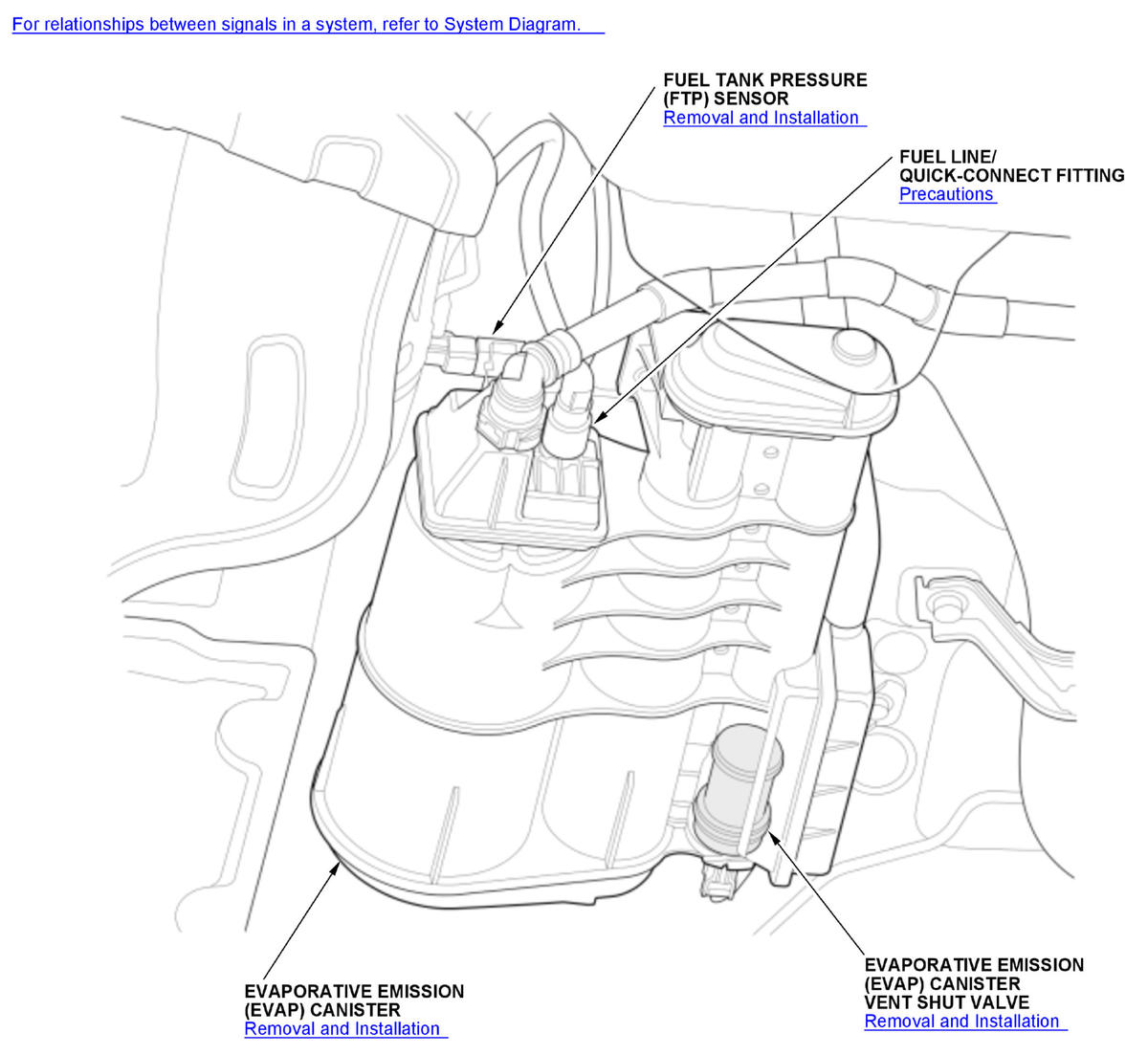

Fig 3: Fuel and Emissions Systems Component Locations (2.0 L Engine 1 Of 3)

Courtesy of HONDA, U.S.A., INC.

2.0 L Engine

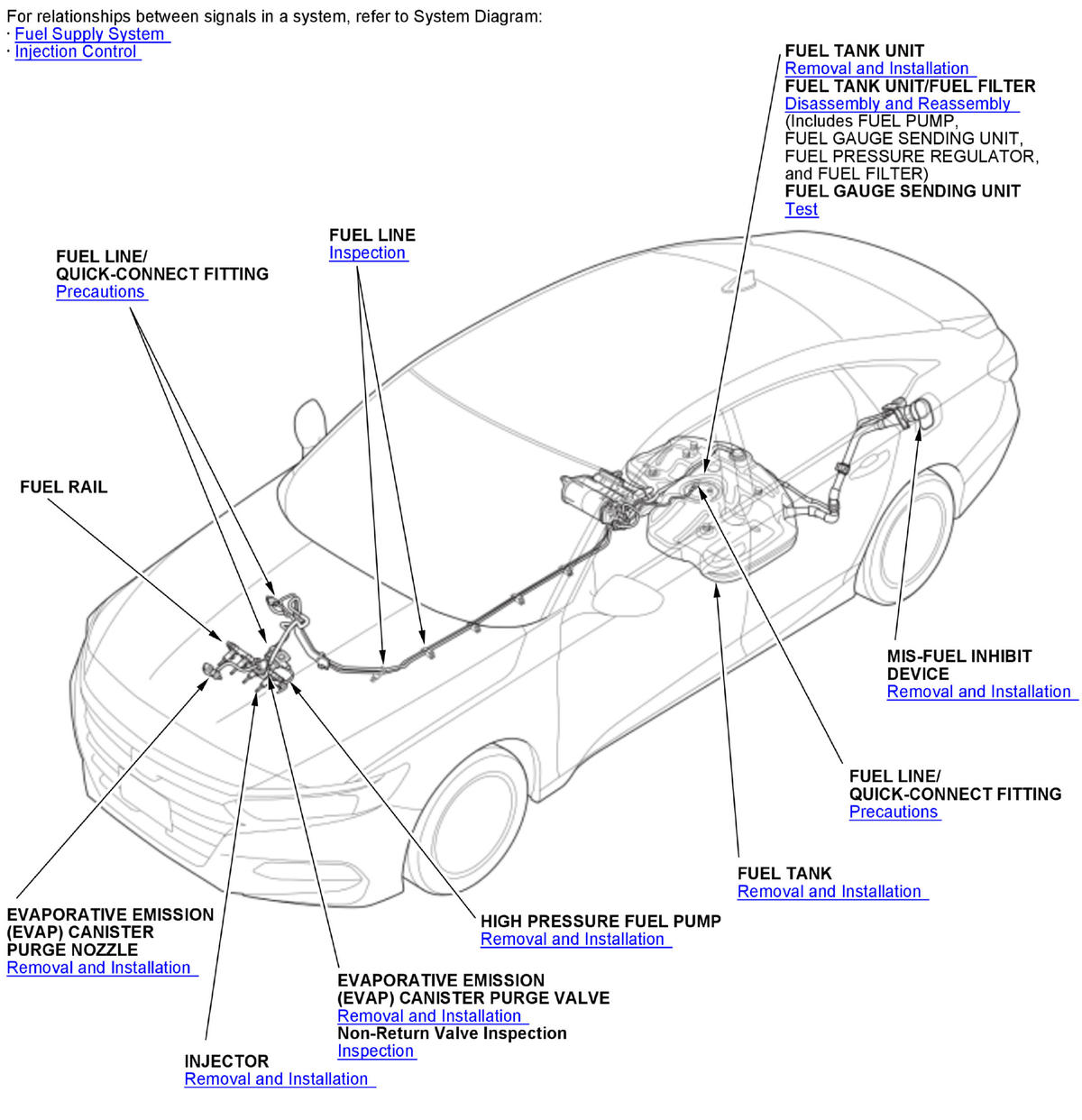

Fig 4: Fuel and Emissions Systems Component Locations (2.0 L Engine 2 Of 3)

Courtesy of HONDA, U.S.A., INC.

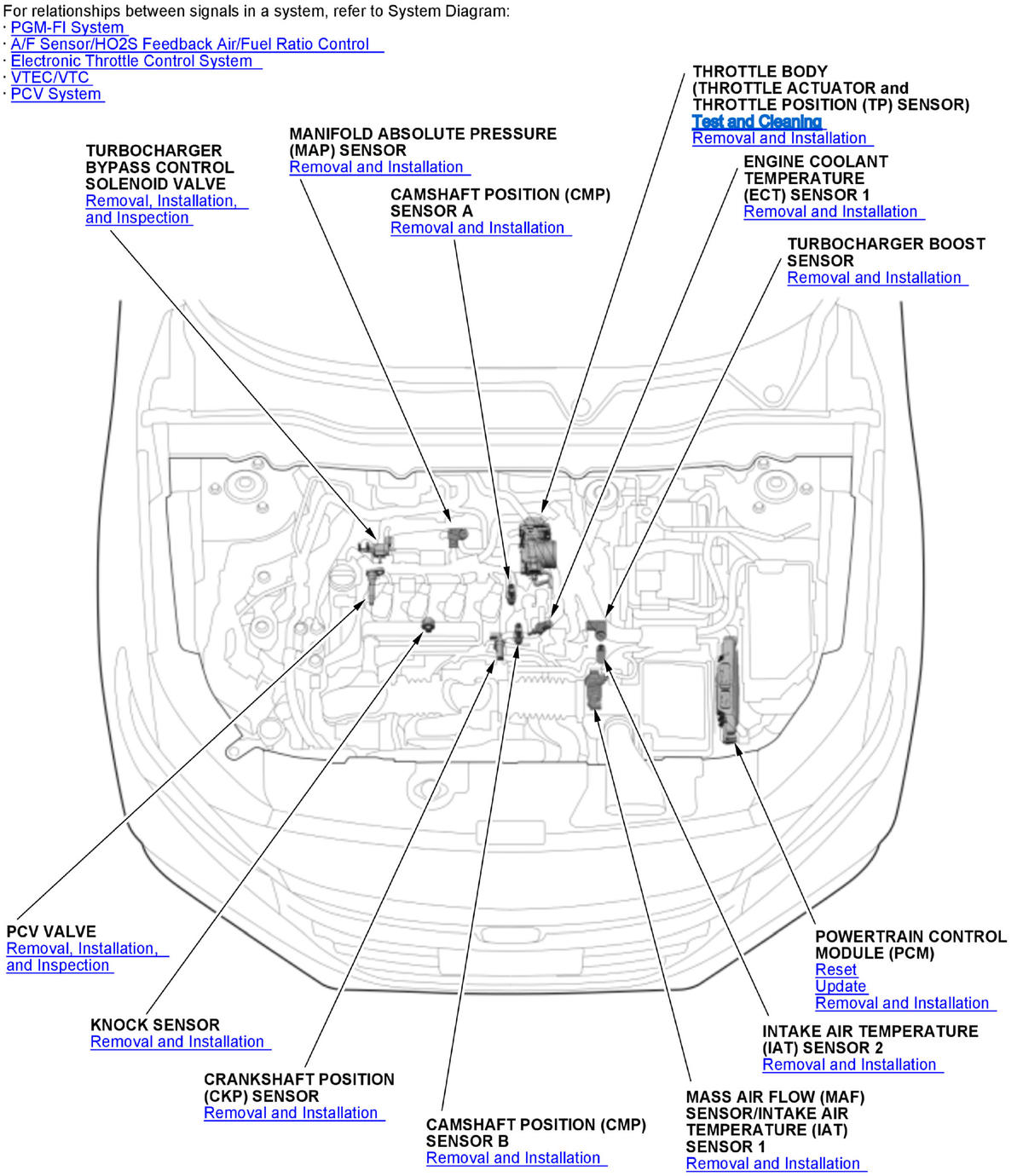

Fig 5: Fuel and Emissions Systems Component Locations (2.0 L Engine 3 Of 3)

Courtesy of HONDA, U.S.A., INC.

1.5 L Engine (USA and Canada models)

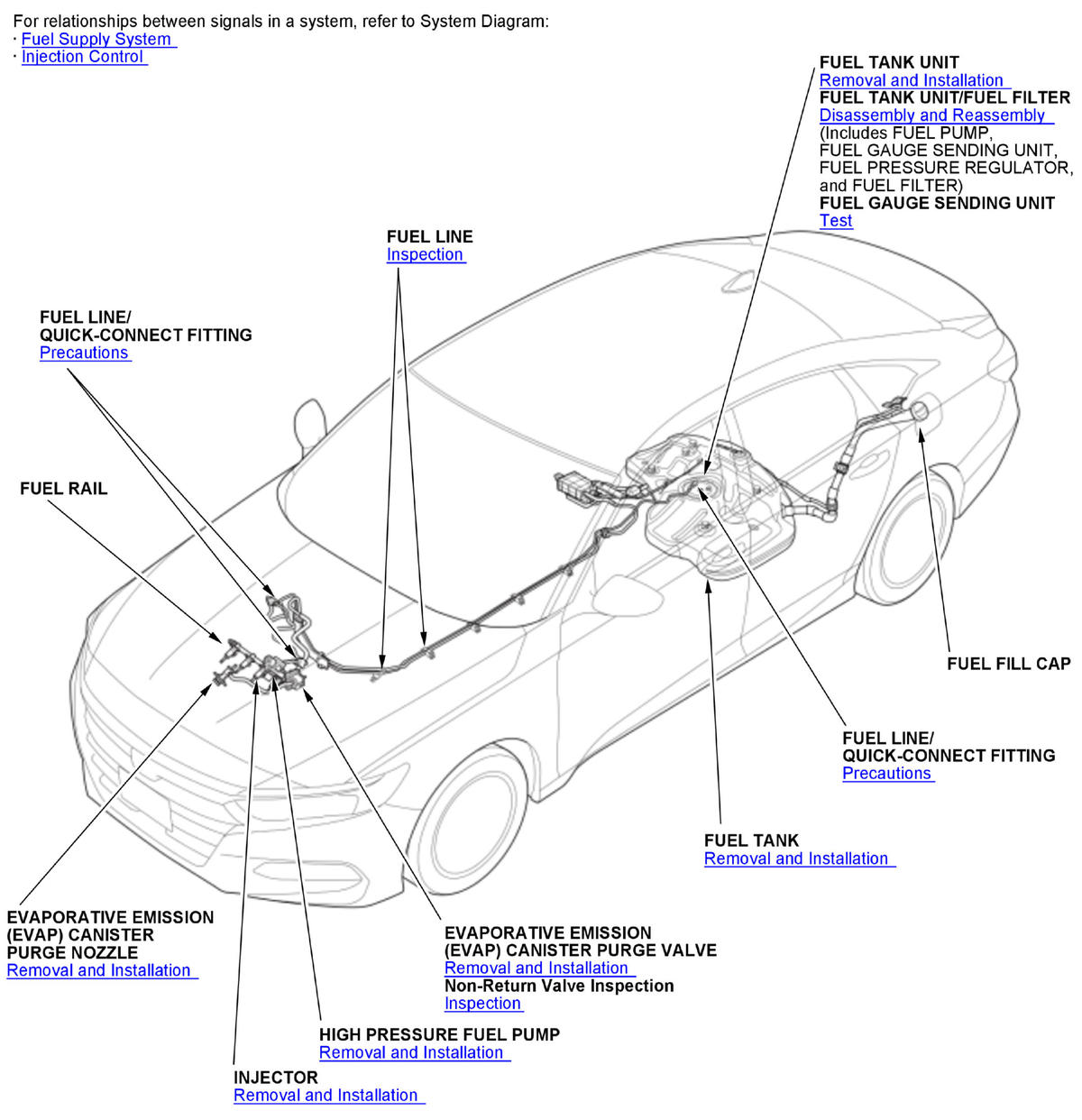

Fig 6: Fuel and Emissions Systems Component Locations (1.5 L Engine USA and Canada models)

Courtesy of HONDA, U.S.A., INC.

1.5 L Engine (Mexico models)

Fig 7: Fuel and Emissions Systems Component Locations (1.5 L Engine Mexico models)

Courtesy of HONDA, U.S.A., INC.

2.0 L Engine (USA and Canada models)

Fig 8: Fuel and Emissions Systems Component Locations (2.0L USA and Canada models)

Courtesy of HONDA, U.S.A., INC.

2.0 L Engine (Mexico models)

Fig 9: Fuel and Emissions Systems Component Locations (2.0 L Engine Mexico models)

Courtesy of HONDA, U.S.A., INC.

USA and Canada models

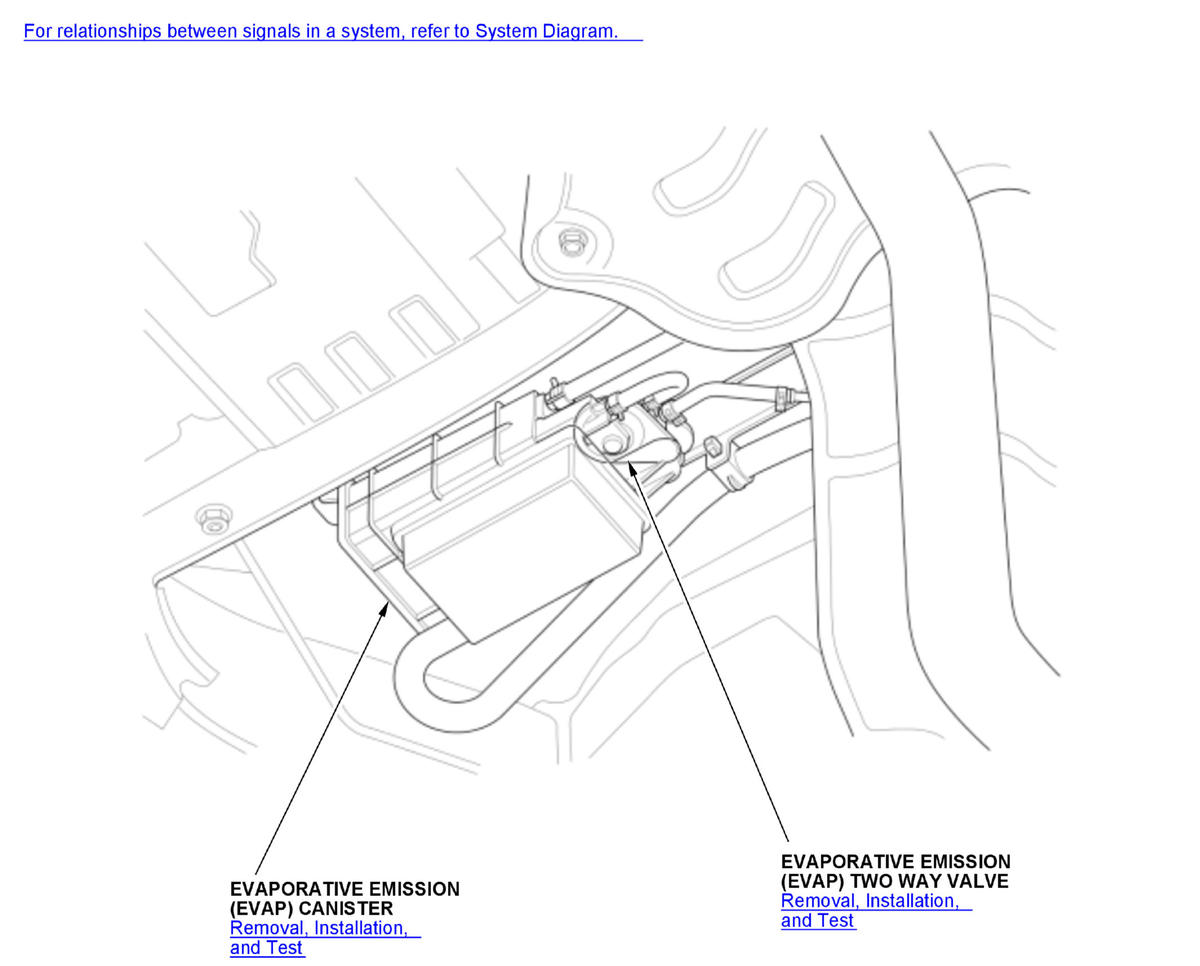

Fig 10: Fuel and Emissions Systems Component Locations (USA and Canada models)

Courtesy of HONDA, U.S.A., INC.

Mexico models

Fig 11: Fuel and Emissions Systems Component Locations (Mexico models)

Courtesy of HONDA, U.S.A., INC.
