CVT System Component Location Index (CVT: With Auto Idle Stop System)

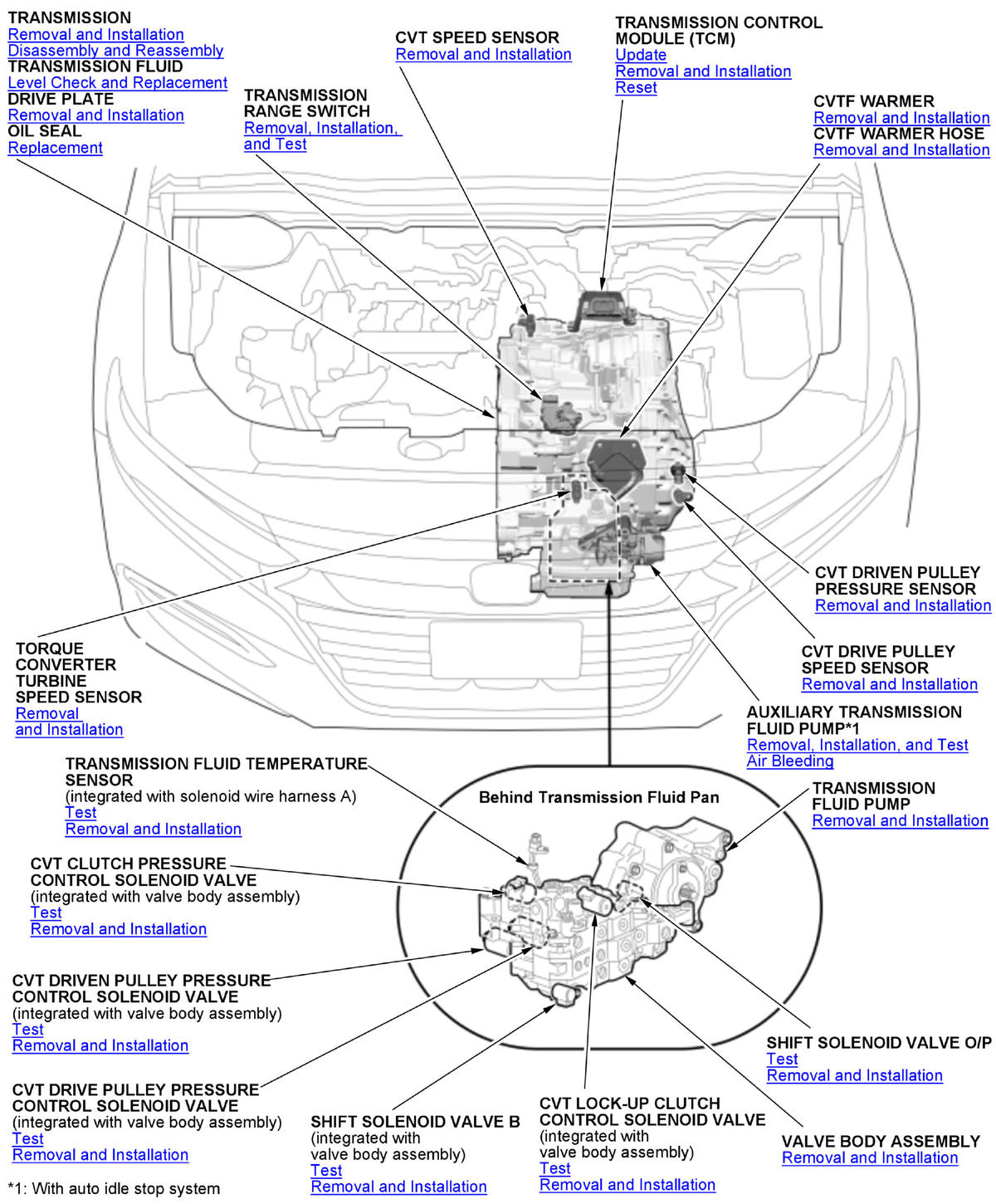

Fig 1: CVT System Component Location (CVT: With Auto Idle Stop System) (1 Of 2)

Courtesy of HONDA, U.S.A., INC.

For relationships between signals in a system, refer to System Diagram .

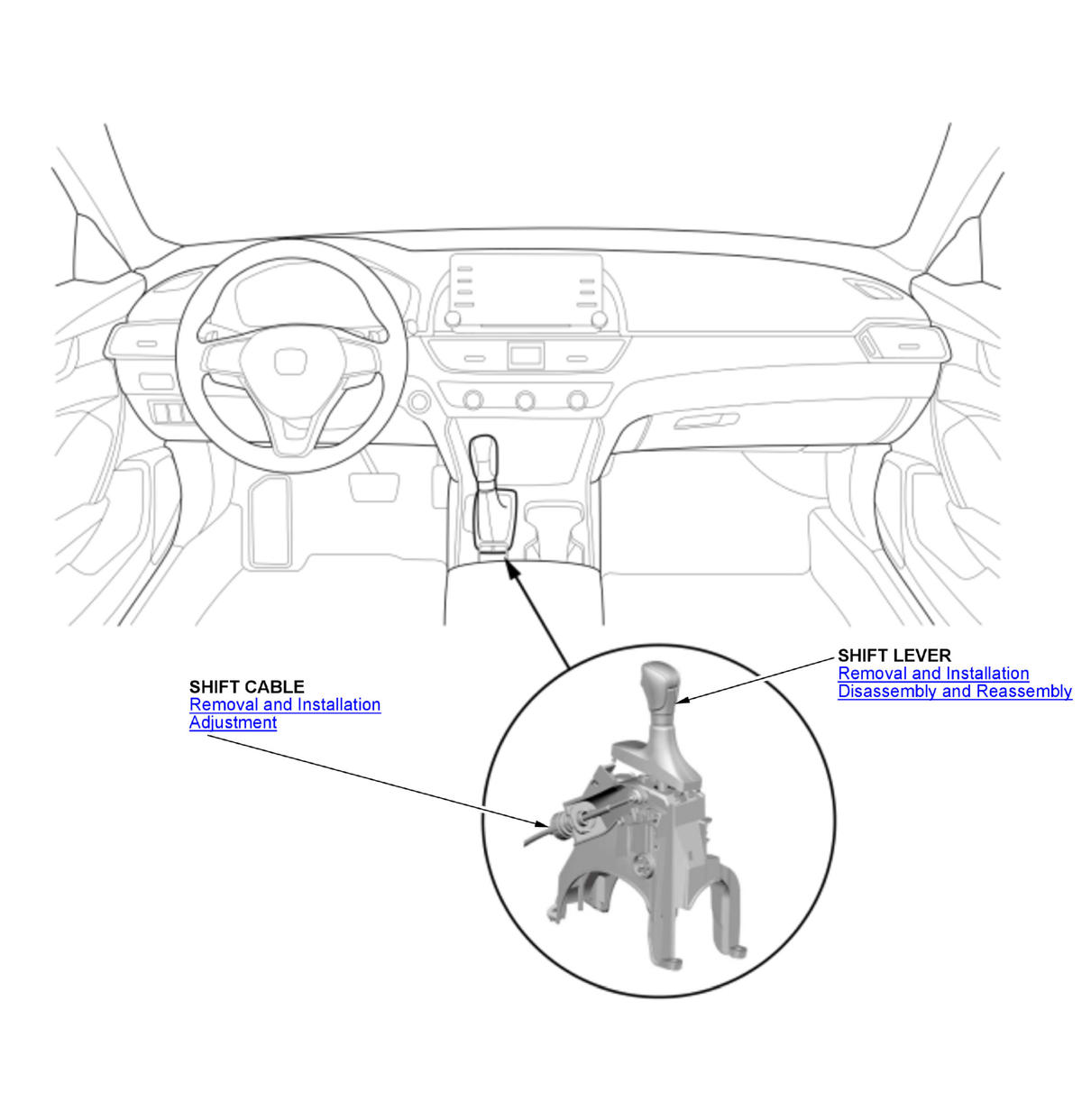

Fig 2: CVT System Component Location (CVT: With Auto Idle Stop System) (2 Of 2)

Courtesy of HONDA, U.S.A., INC.
