Front End Upper Tie Bar Replacement

Courtesy of GENERAL MOTORS COMPANY

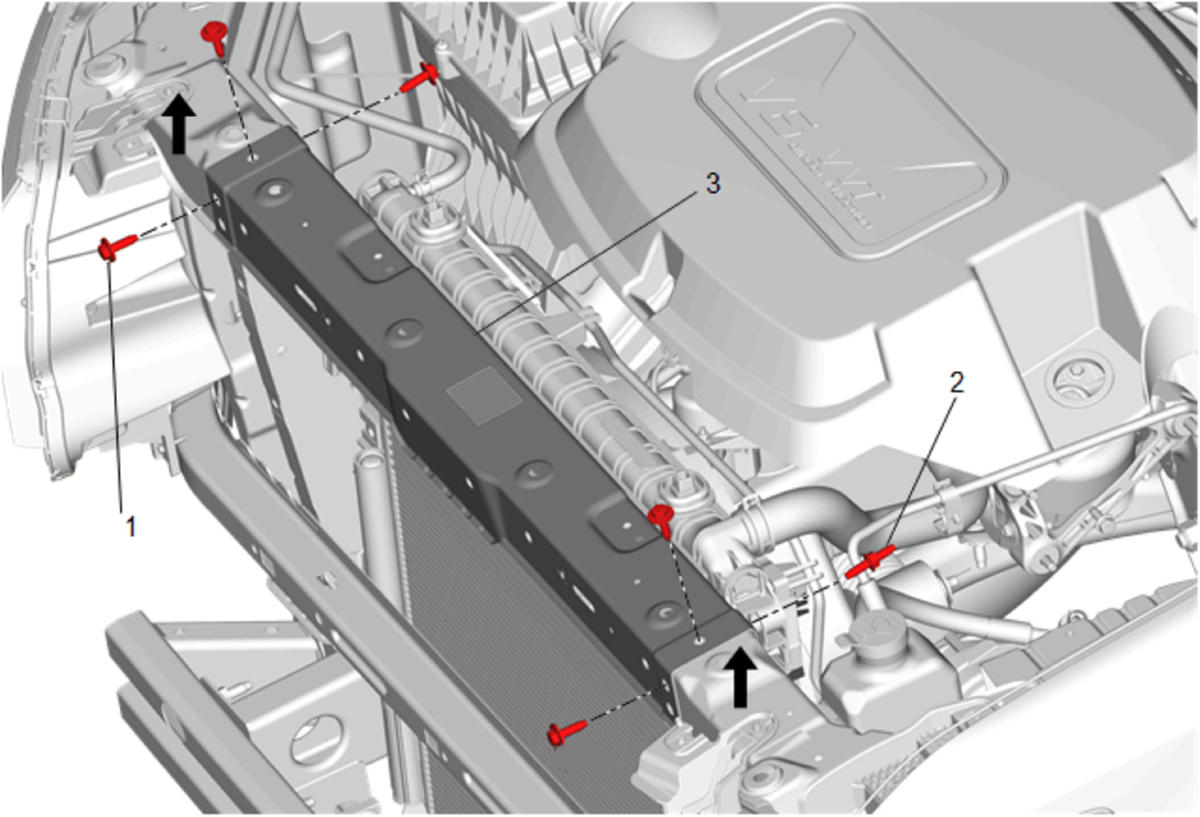

Callout	Component Name
Preliminary Procedures Front Bumper Shutter Replacement (Without Bison) , or Front Bumper Shutter Replacement (With Bison) Radiator Upper Bracket Replacement Hood Primary and Secondary Latch Replacement (Without, BTV) , or Hood Primary and Secondary Latch Replacement (With, BTV) Disconnect the electrical harness from the front end upper tie bar.
1	Front End Upper Tie Bar Bolt [5x] CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
2	Front End Upper Tie Bar Stud Tighten 22 N.m (16 lb ft)
3	Front End Upper Tie Bar Procedure Transfer components as necessary.
