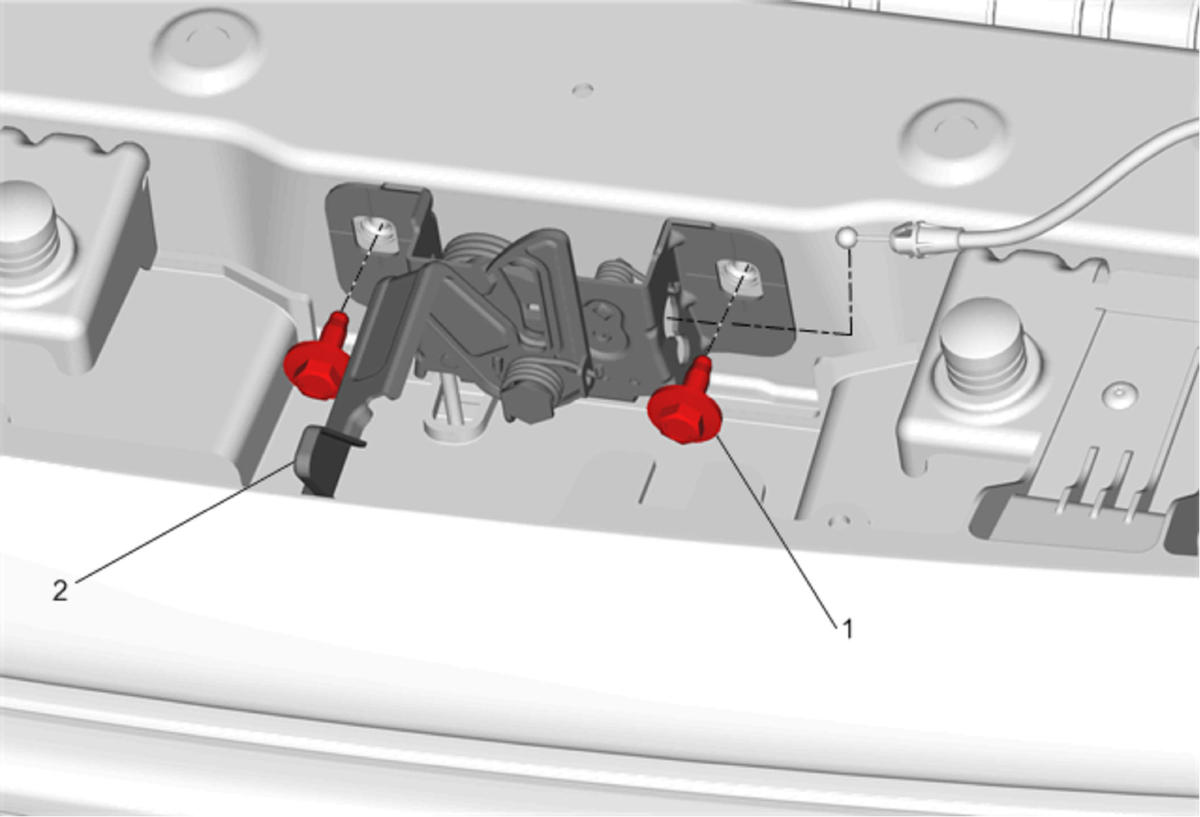

Hood Primary and Secondary Latch Replacement (Without, BTV)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front compartment front sight shield. Refer to Front Compartment Front Sight Shield Replacement
1	Hood Primary and Secondary Latch Bolts (Qty: 2) CAUTION: Refer to Fastener Caution . NOTE: Use a grease pencil to mark the location of the hood latch before removing the bolts. Tighten 22 N.m (16 lb ft)
2	Hood Primary and Secondary Latch Procedure Disconnect the hood release cable from hood latch. Disconnect any electrical connectors. Align the hood latch if necessary.

Callout

Component Name

Preliminary Procedure
Remove the front compartment front sight shield. Refer to Front Compartment Front Sight Shield Replacement

Hood Primary and Secondary Latch Bolts (Qty: 2)

CAUTION:

NOTE:

Use a grease pencil to mark the location of the hood latch before removing the bolts.

Tighten
22 N.m (16 lb ft)

Hood Primary and Secondary Latch

Procedure
