Hood Primary and Secondary Latch Replacement (With, BTV)

Courtesy of GENERAL MOTORS COMPANY

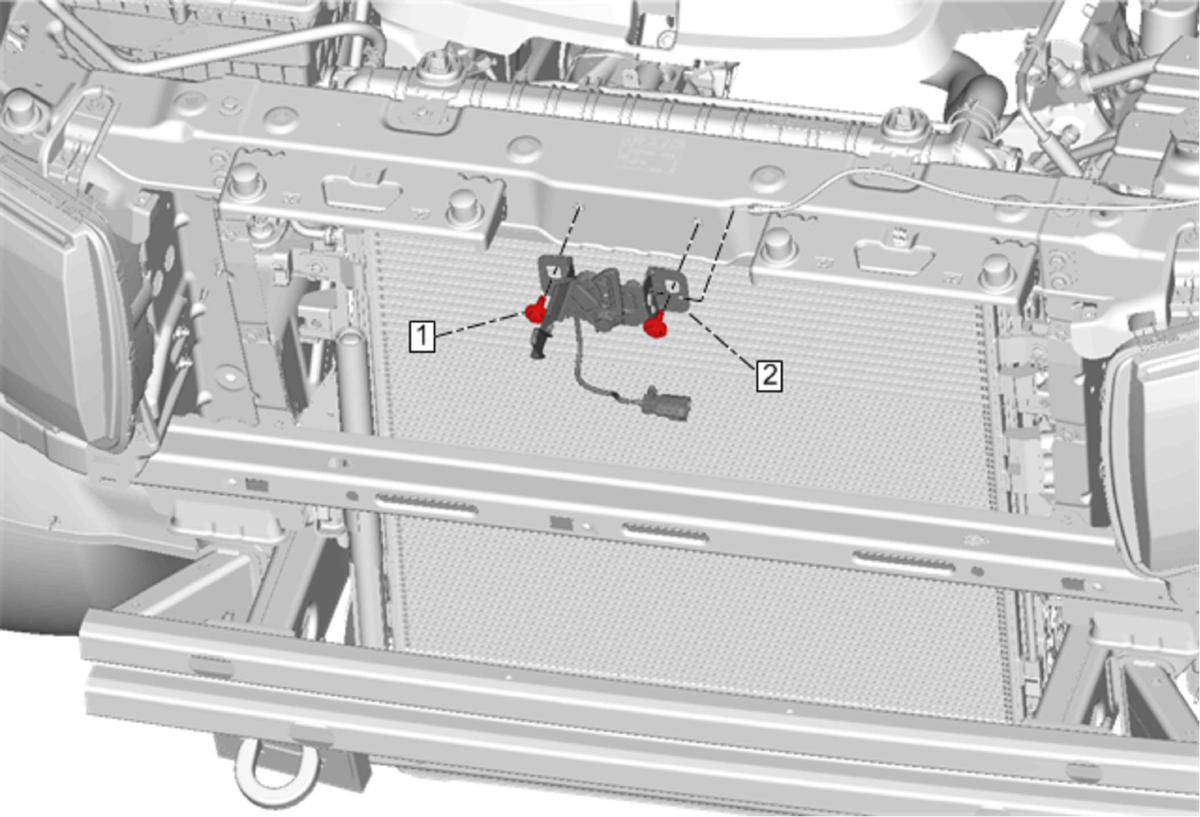

Callout	Component Name
Preliminary Procedure Front Bumper Shutter Replacement (Without Bison) , or Front Bumper Shutter Replacement (With Bison)
1	Hood Primary and Secondary Latch Bolt [2x] CAUTION: Refer to Fastener Caution . NOTE: Use a grease pencil to mark the location of the hood latch before removing the bolts. Tighten 22 N.m (16 lb ft)
2	Hood Primary and Secondary Latch Procedure Disconnect the hood release cable from hood latch. Disconnect any electrical connectors. Align the hood latch if necessary.

Callout

Component Name

Hood Primary and Secondary Latch Bolt [2x]

CAUTION:

NOTE:

Use a grease pencil to mark the location of the hood latch before removing the bolts.

Tighten
22 N.m (16 lb ft)

Hood Primary and Secondary Latch

Procedure
