Radiator Upper Bracket Replacement

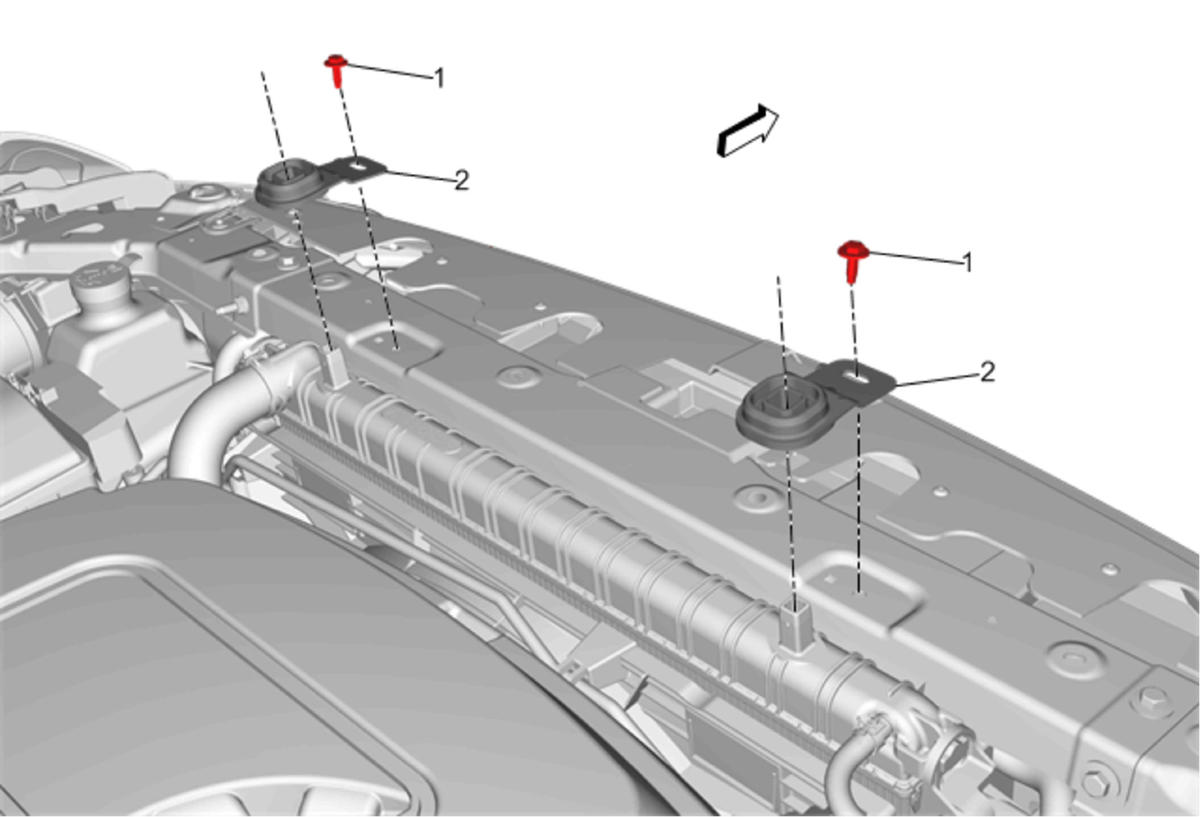

| Callout | Component Name |
|---|---|
| Preliminary Procedure Front Compartment Front Sight Shield Replacement - Remove{ If equipped } |
|
| 1 | Radiator Upper Bracket Bolt (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 9 Y (80 lb in) |
| 2 | Radiator Upper Bracket (Qty: 2) |
