Rear Seat Back Cushion Cover and Pad Replacement (Coupe)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

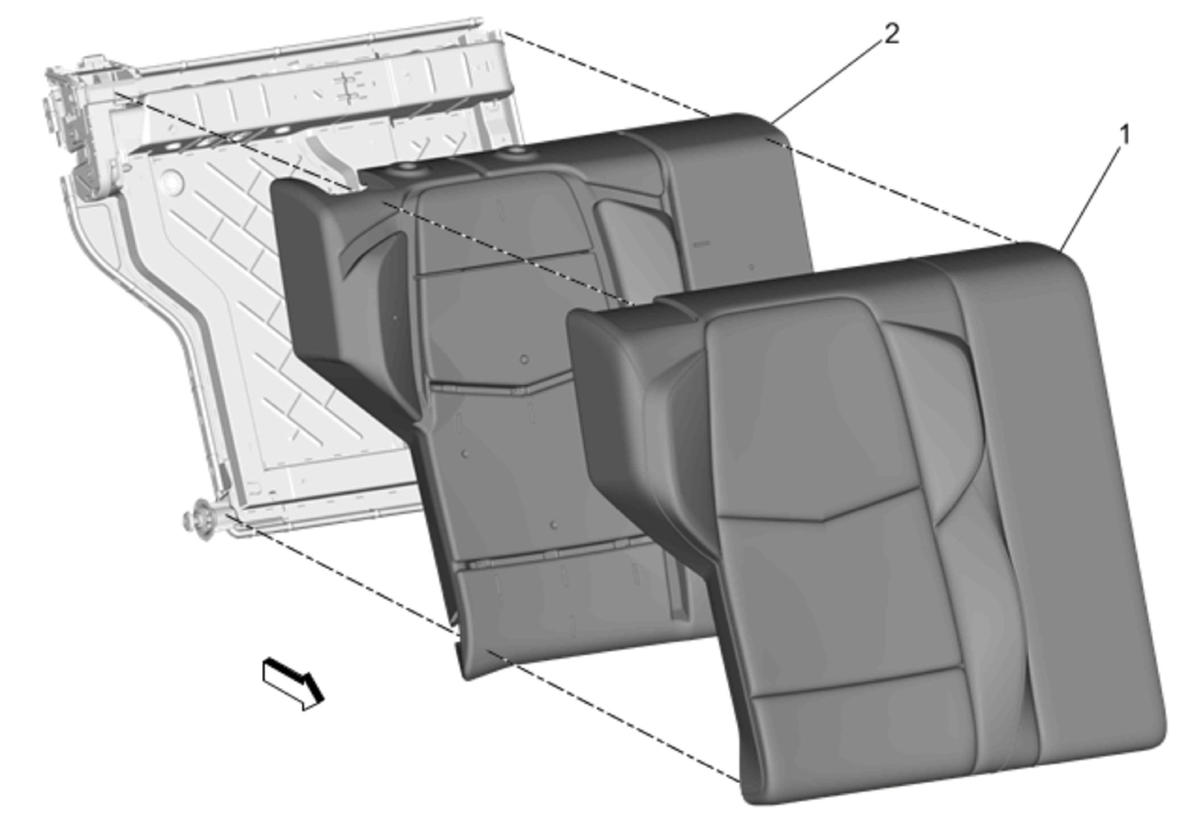

Fig 1: Rear Seat Back Cushion Cover and Pad (Coupe)
GM3703891Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the rear seat back cushion. Refer to Rear Seat Back Cushion Removal and Installation (40% Seat with AM9) Rear Seat Back Cushion Removal and Installation (60% Seat with AM9) Rear Seat Back Cushion Removal and Installation (without AM9) .
  2. Remove the rear seat back cushion panel. Refer to Rear Seat Back Cushion Panel Replacement (60% with AM9) Rear Seat Back Cushion Panel Replacement (40% with AM9) .
  3. Remove the rear seat head restraint guides. Refer to Rear Seat Head Restraint Guide Replacement (with AM9) Rear Seat Head Restraint Guide Replacement (without AM9) .
  4. Remove the rear seat back cushion latch release handle bezel. Refer to Rear Seat Back Latch Bezel Replacement .
  5. Remove the rear seat back hinge pivot bolt. Refer to Rear Seat Back Hinge Pivot Bolt Replacement
1 Rear Seat Back Cushion Cover
Procedure
Remove the hog ring fasteners that secure the rear seat back cushion cover to the pad and replace with new.
2 Rear Seat Back Cushion Pad
