Rear Seat Head Restraint Guide Replacement (with AM9)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

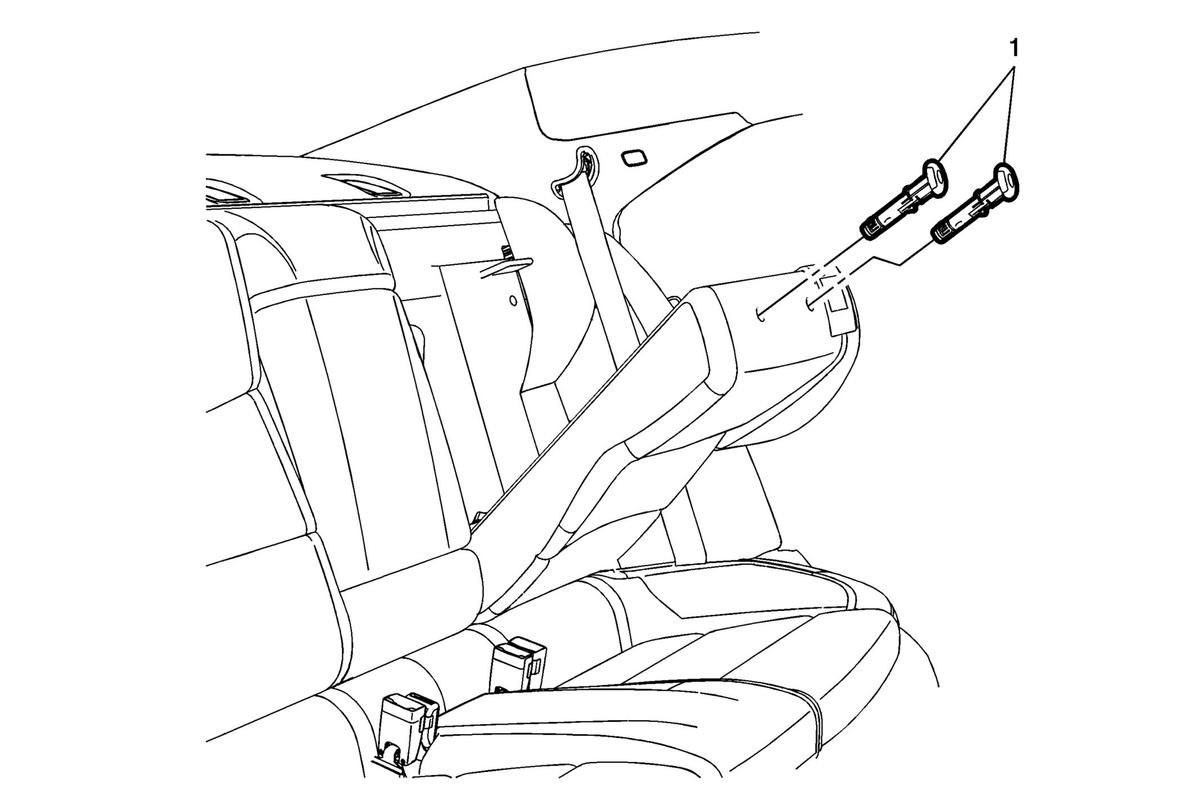

Fig 1: Rear Seat Head Restraint Guides (with AM9)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear seat head restraint. Refer to Rear Seat Head Restraint Replacement (with AM9) .
1	Rear Seat Head Restraint Guide (Qty: 2) Procedure Lower the seat back forward to gain space between the head restraint guide and the roof. The guide is released from the inboard side by inserting a suitable flat-bladed tool into the slot and prying it inward until released. Using a suitable flat-bladed tool, slide the tool into the guide until you find the slot on the inboard side of the guide. Push inward on the guide slot tab, while pulling upward to remove the guide from the seat back frame.

Callout

Component Name

Preliminary Procedure
Remove the rear seat head restraint. Refer to Rear Seat Head Restraint Replacement (with AM9) .

Rear Seat Head Restraint Guide (Qty: 2)

Procedure

Lower the seat back forward to gain space between the head restraint guide and the roof.
The guide is released from the inboard side by inserting a suitable flat-bladed tool into the slot and prying it inward until released.
Using a suitable flat-bladed tool, slide the tool into the guide until you find the slot on the inboard side of the guide. Push inward on the guide slot tab, while pulling upward to remove the guide from the seat back frame.
