Rear Seat Back Cushion Panel Replacement (40% with AM9)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY

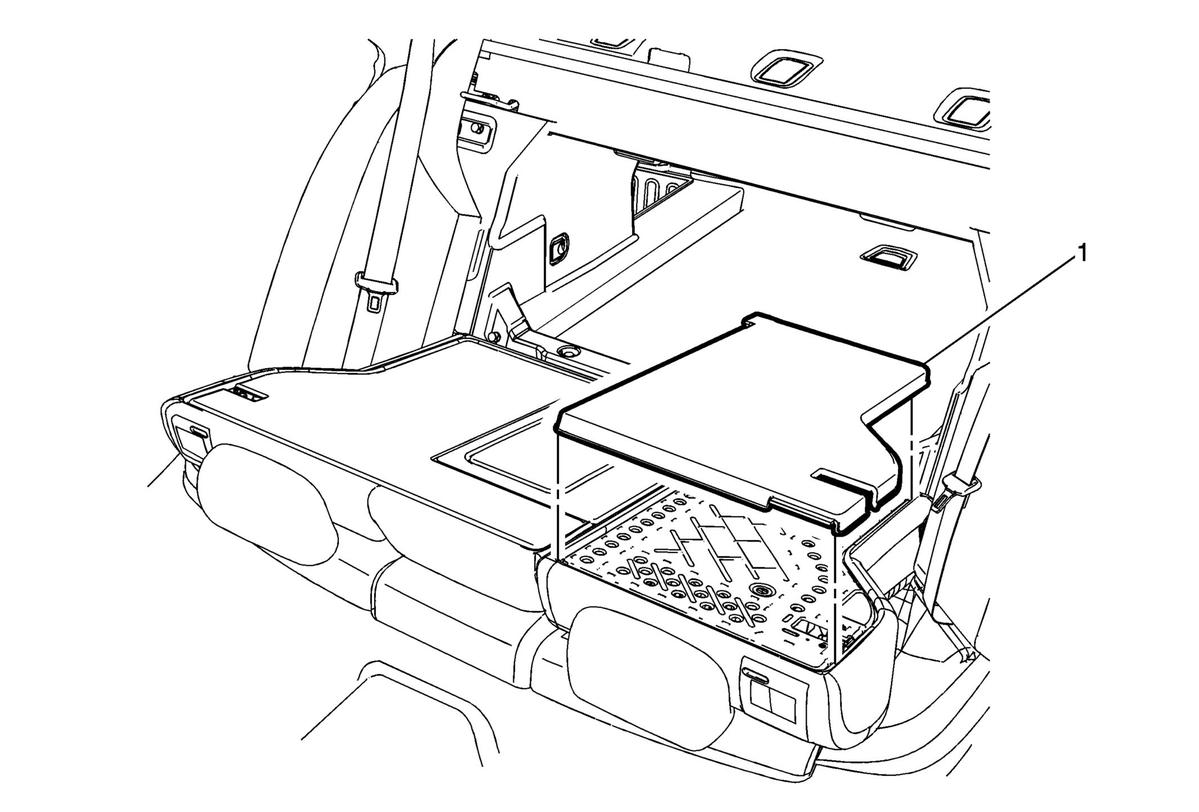

| Callout |
Component Name |
| 1 |
Rear Seat Back Cushion Panel Procedure
- Fold rear seat back cushion forward.
- Disengage the j-channel retainers from the seat back cushion frame.
- Remove rear seat back cushion panel.
|
