Rear Seat Back Cushion Panel Replacement (60% with AM9)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

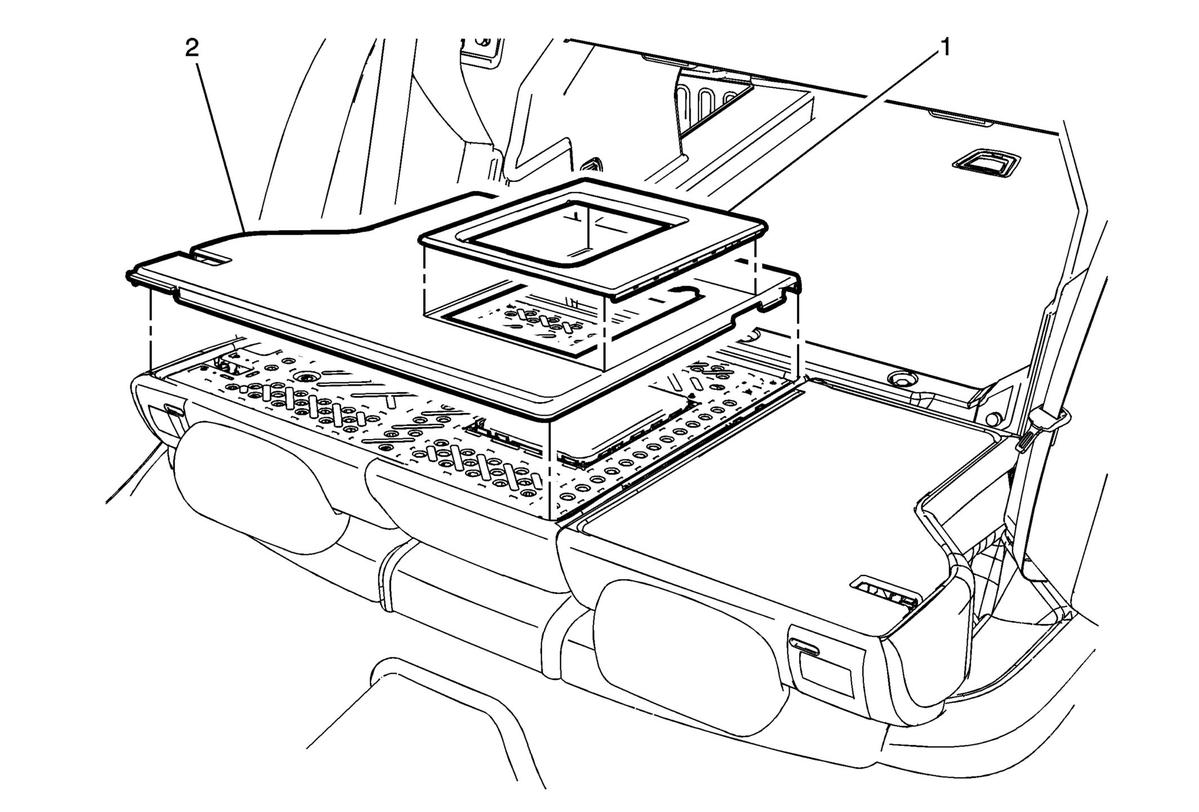

Fig 1: Rear Seat Back Cushion Panel (60% with AM9)
GM2819144Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the rear seat back cushion armrest closeout panel. Refer to Rear Seat Armrest Closeout Panel Replacement (with AM9) .
1 Rear Seat Back Cushion Closeout Panel
2 Rear Seat Back Cushion Panel

Procedure

  1. Fold rear seat back cushion forward.
  2. Disengage the j-channel retainers from the seat back cushion frame.
  3. Disengage any retainers holding the panel around the armrest closeout panel.
  4. Remove rear seat back cushion panel.
