Rear Seat Back Hinge Pivot Bolt Replacement
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

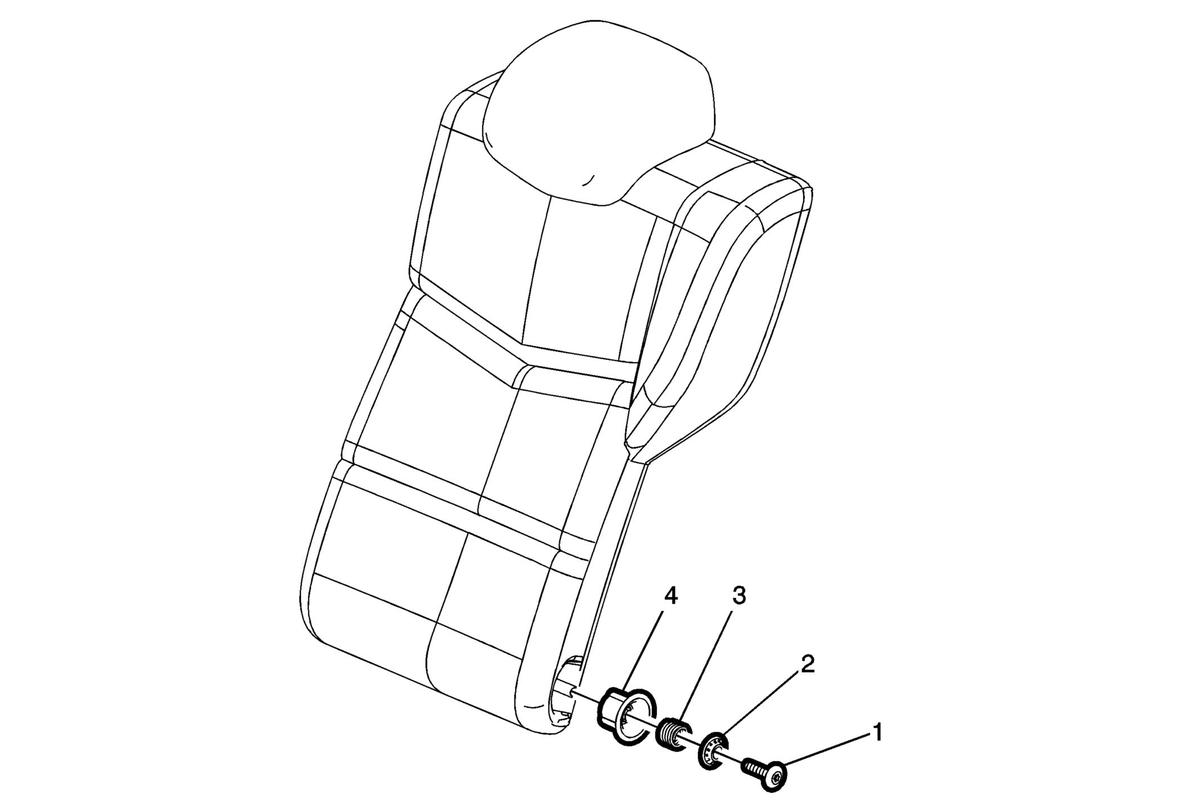

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the rear seat back cushion. Refer to Rear Seat Back Cushion Removal and Installation (40% Seat with AM9) Rear Seat Back Cushion Removal and Installation (60% Seat with AM9) Rear Seat Back Cushion Removal and Installation (without AM9) . |
|
| 1 | Rear Seat Back Outer Pivot Bolt
CAUTION:
Refer to Fastener Caution . Tighten 20 N.m (15 lb ft) |
| 2 | Rear Seat Back Cushion Pivot Support |
| 3 | Rear Seat Back Cushion Outer Pivot Bolt Spring |
| 4 | Rear Seat Back Hinge Finish Cover |
