Section 67 (Interior Trim): Headliner: Removal

WARNING: This page is about a different car, the 2004 Dodge Dakota and 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove sun visors and visor hooks. (Refer to BODY/INTERIOR/SUN VISOR-REMOVAL  )
  2. Remove coat hooks. (Refer to BODY/INTERIOR/COAT HOOK-REMOVAL  )
  3. Remove overhead console, if equipped. Refer to OVERHEAD CONSOLE
  4. Remove A-pillar trim. (Refer to BODY/INTERIOR/A-PILLAR TRIM-REMOVAL  )
  5. Remove B-pillar trim. (Refer to BODY/INTERIOR/B-PILLAR TRIM-REMOVAL  )
  6. Remove quarter trim, if equipped. (Refer to BODY/INTERIOR/QUARTER TRIM PANEL-REMOVAL  )
  7. Remove C-pillar trim, if equipped. (Refer to BODY/INTERIOR/C-PILLAR TRIM-REMOVAL  )
  8. Remove dome lamp.

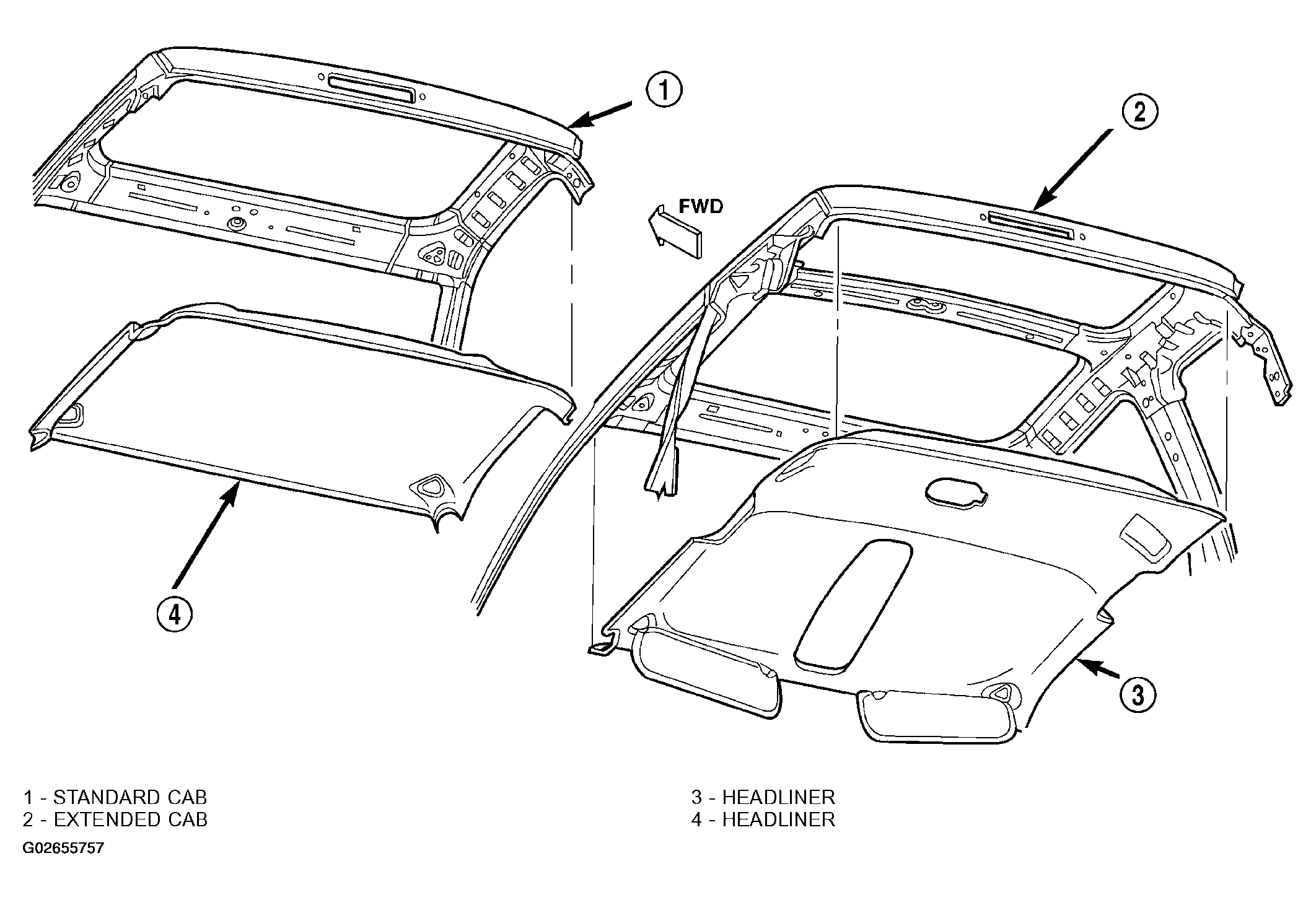

  9. Separate headliner from roof panel (Figure ) and (Figure ).
  10. Extract headliner through door opening.
