Quarter Trim Panel: Removal

WARNING: This page is about a different car, the 2004 Dodge Dakota and 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove door sill cover as necessary to clear quarter trim.
  2. Remove cab back panel trim. (Refer to BODY/INTERIOR/REAR CAB BACK PANEL TRIM-REMOVAL  )
  3. Remove front and rear shoulder belt turning loops.
  4. Remove the screws attaching the quarter trim panel to the cab back panel (Fig 1 ).
  5. Grasp quarter trim panel and firmly pull outward to disengage the push-in fasteners.
  6. Route front and rear shoulder belts through access slots in quarter trim panel.
  7. Separate club cab quarter trim panel from quarter panel (Fig 1 ).

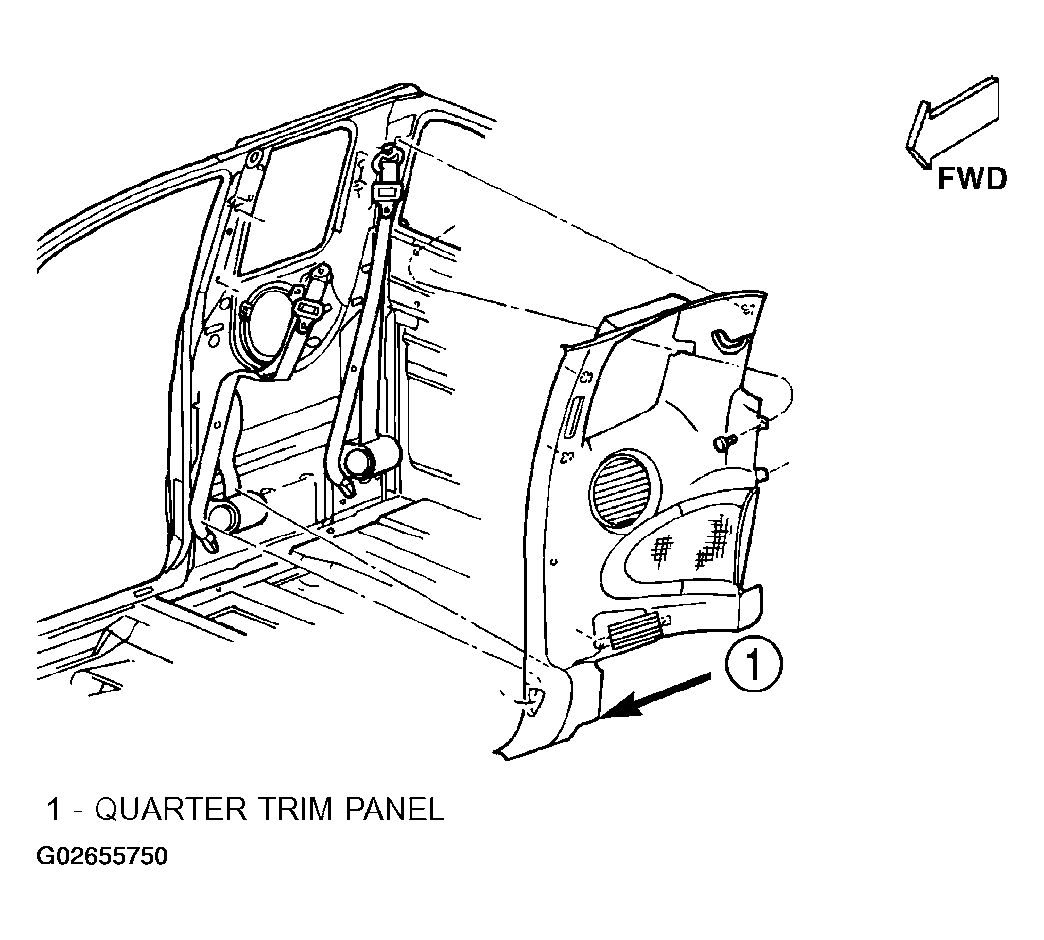

    Fig 1: Removing/Installing Quarter Trim Panel
    G02655750Courtesy of DAIMLERCHRYSLER CORP.
