B-Pillar Trim: Removal
WARNING: This page is about a different car, the 2004 Dodge Dakota and 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The B-pillar trim panel is attached to the B-pillar with push-in fasteners.
- Remove door sill cover as necessary to clear B-pillar trim.
- Remove shoulder belt turning loop.
- Grasp B-pillar trim panel and firmly pull outward.
- Disconnect speaker harness connector, if equipped.
- Route shoulder belt through access slots in B-pillar trim panel.

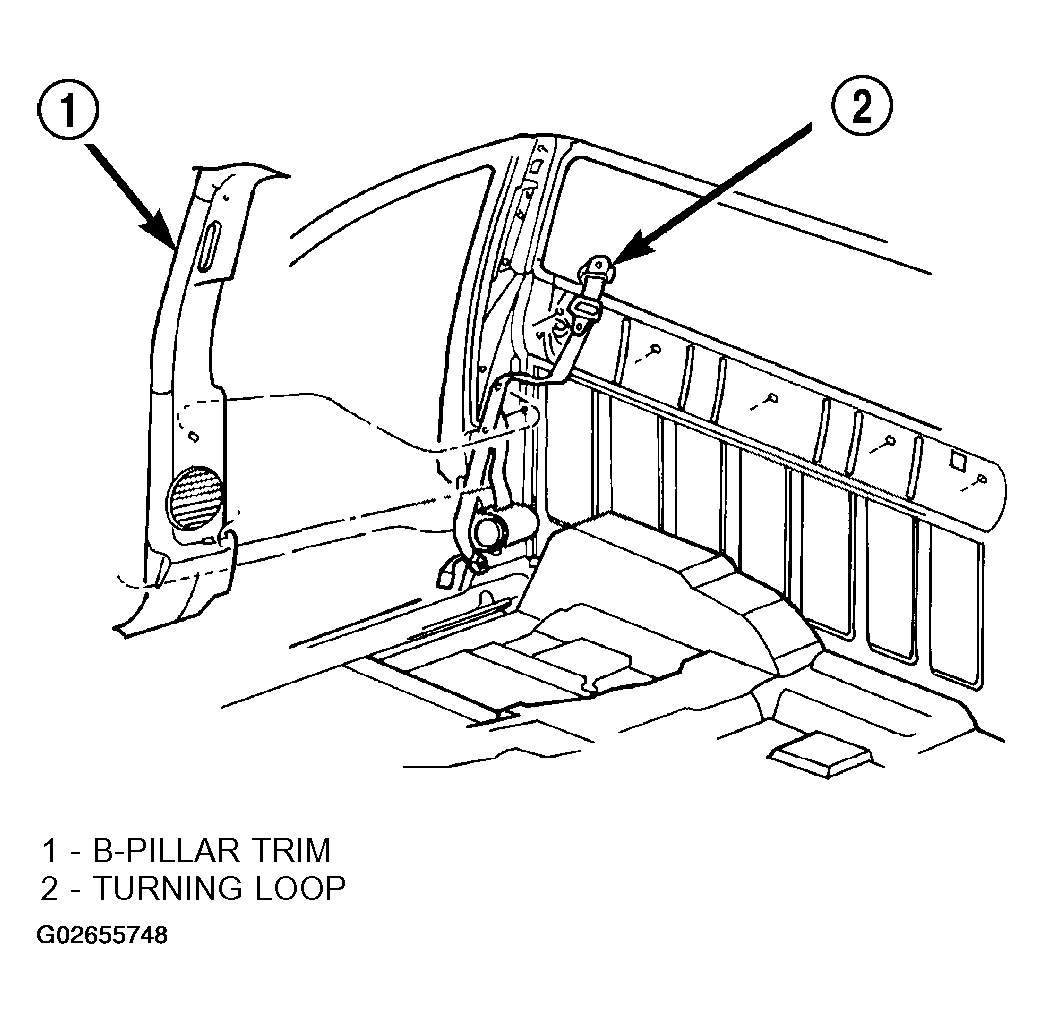

- Separate B-pillar trim panel from B-pillar (Fig 1 ).
