Sun Visors: Removal

WARNING: This page is about a different car, the 2004 Dodge Dakota and 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: All vehicles with driver and passenger side airbags must have a colored-coded, 5-bullet point airbag warning label applied to the sunvisor face surface (in the stored position). When replacing the sunvisor, verify label availability and ensure the label is installed.

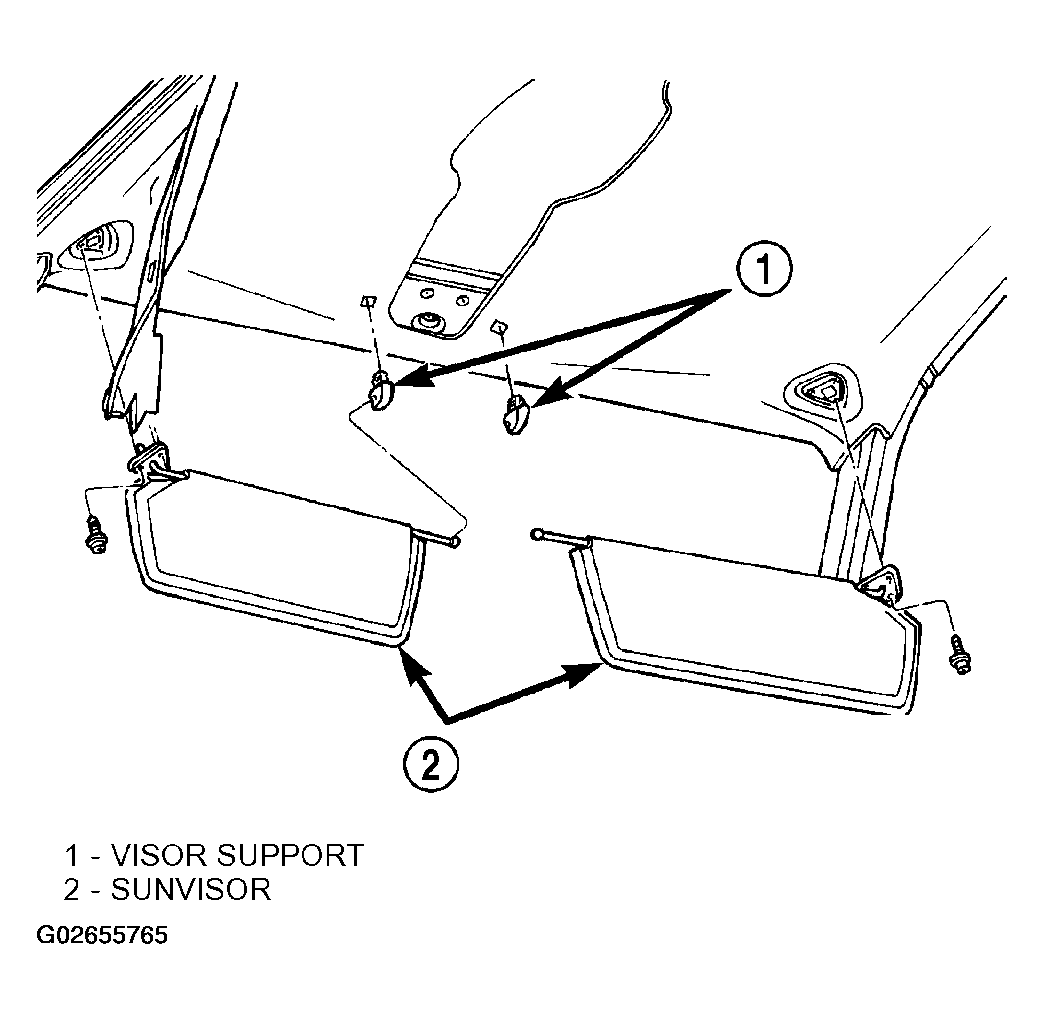

  1. Remove the screws that attach the sunvisor arm support bracket to the headliner and the roof panel (Figure ).
  2. Detach the sunvisor from the visor supports.
  3. Remove the sunvisor from the headliner and roof panel.
  4. If necessary, remove the screw attaching the visor supports to the headliner and roof panel.
