A-Pillar Trim: Removal

WARNING: This page is about a different car, the 2004 Dodge Dakota and 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove A-pillar grab handle, if equipped.
  2. Remove screws from cowl trim cover.
  3. Remove cowl trim cover.
    Fig 1: Removing/Installing Shift Boot - Transfer Case
    G02655745Courtesy of DAIMLERCHRYSLER CORP.
  4. Grasp A-pillar trim and pull outward to disengage clips attaching A-pillar trim to A-pillar (Fig 2 ).
  5. Separate A-pillar trim from vehicle.

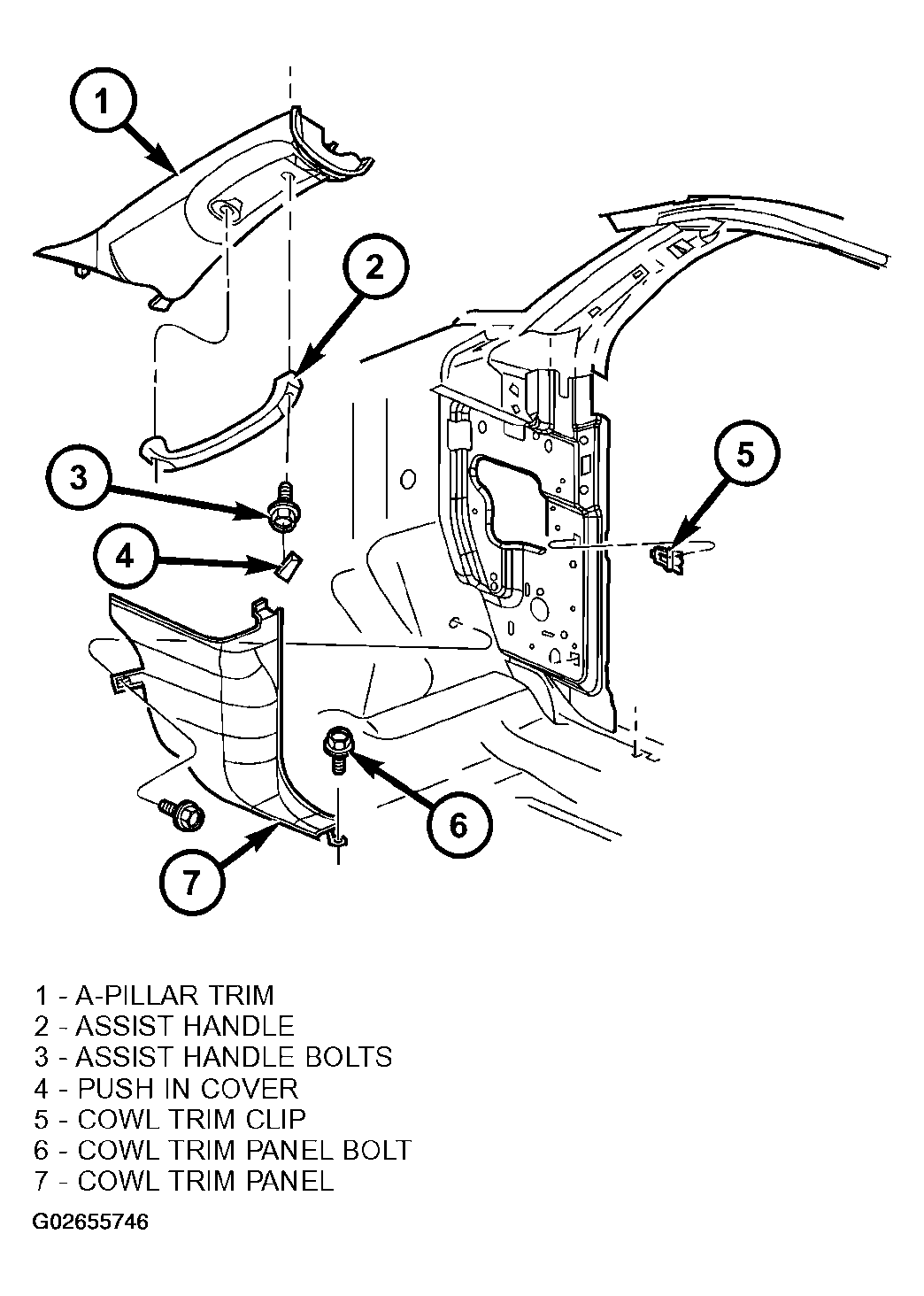

    Fig 2: Removing/Installing A-Pillar Trim
    G02655746Courtesy of DAIMLERCHRYSLER CORP.
