C-Pillar Trim: Removal

WARNING: This page is about a different car, the 2004 Dodge Dakota and 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the seat belt turning loop.
  2. Using a trim stick C-4755 or equivalent, remove the upper c-pillar trim panel (Fig 1 ).
  3. Remove the screws and remove position the lower c-pillar aside.
  4. Remove the seat belt anchor and route seat belt though the lower c-pillar trim panel.
  5. Remove the lower c-pillar trim.

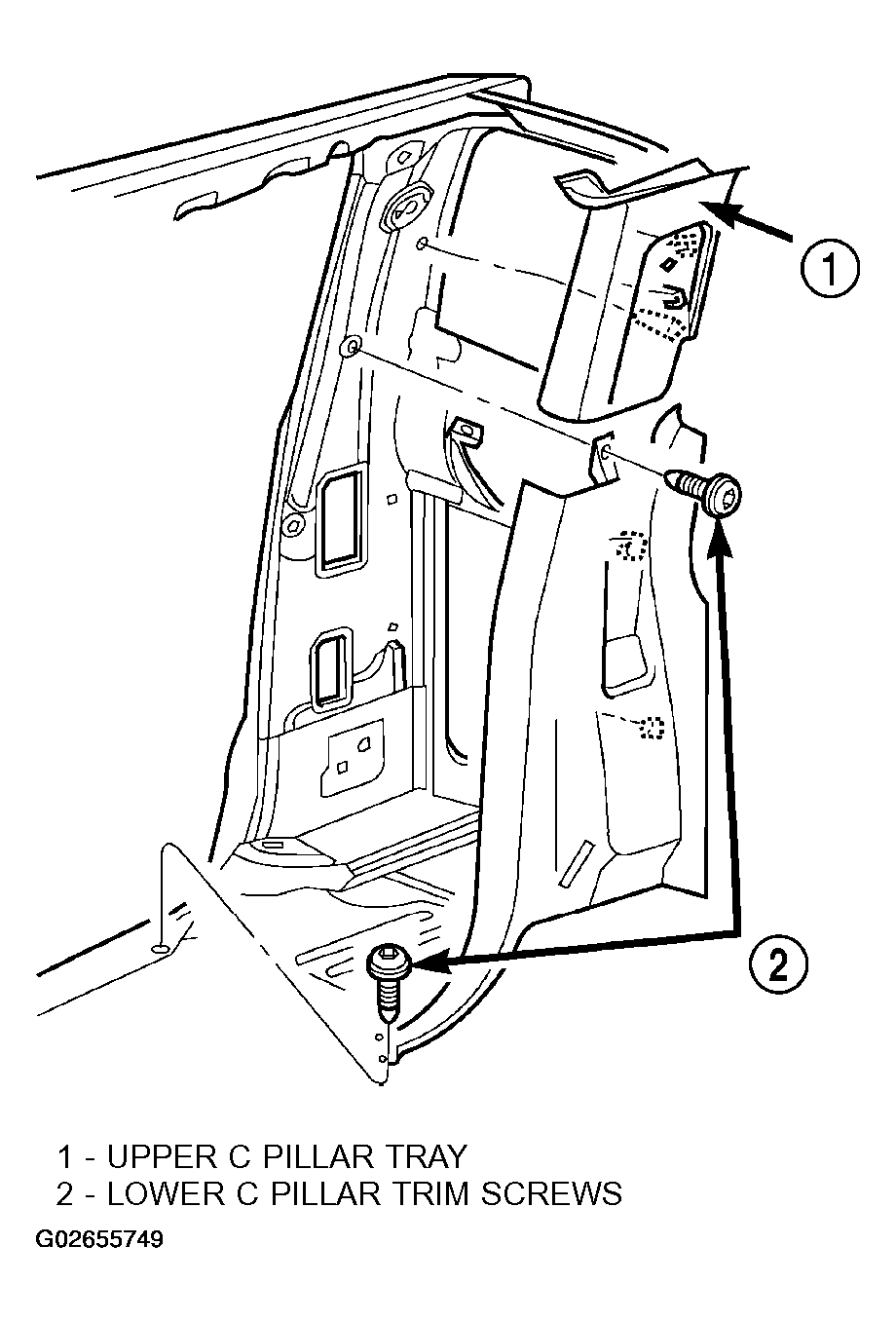

    Fig 1: Removing/Installing Upper C Pillar Trim
    G02655749Courtesy of DAIMLERCHRYSLER CORP.
