Installation Procedure

  1. With the aid of an assistant, position the instrument panel tie bar assembly into the vehicle.
  2. Install the instrument panel wiring harness to the position noted in the removal procedure.
  3. Connect the electrical connectors.
  4. Body Control Module Bracket - Install - Body Control Module Bracket Replacement

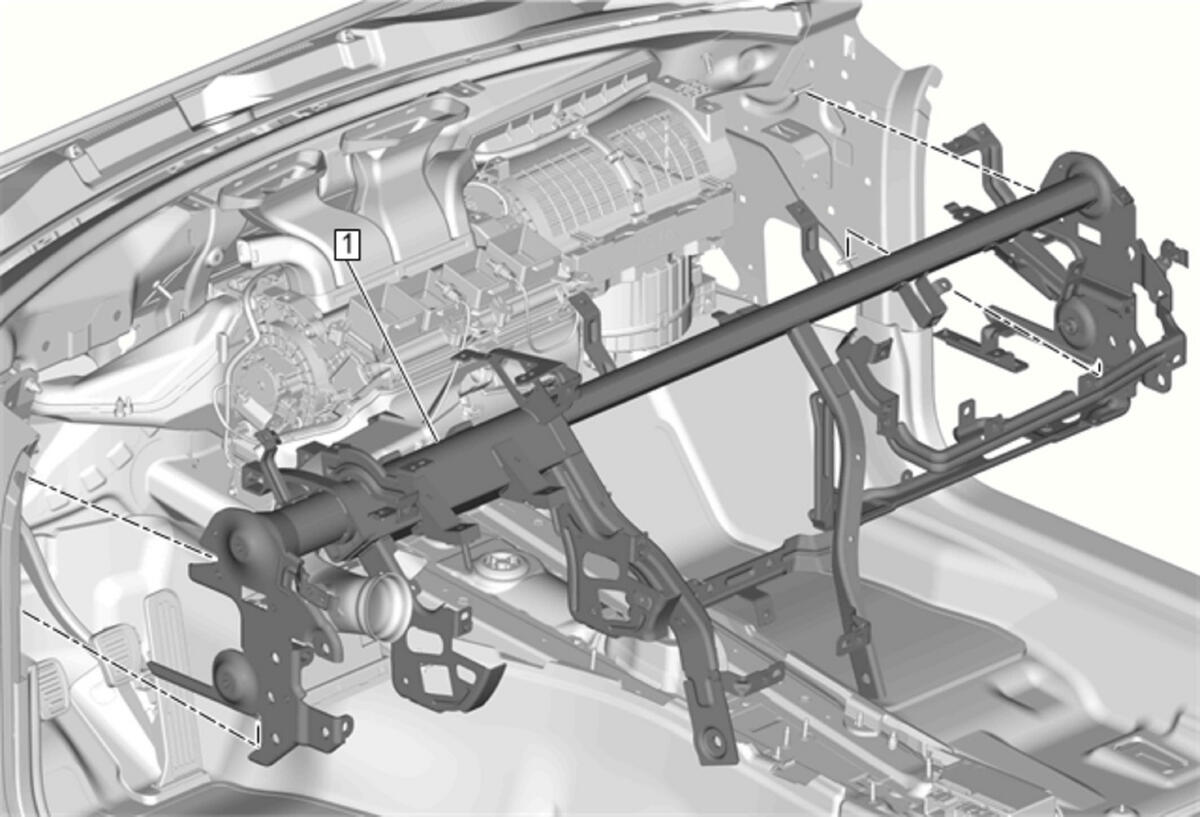

  5. GM4210056Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Tie Bar (1) - Install

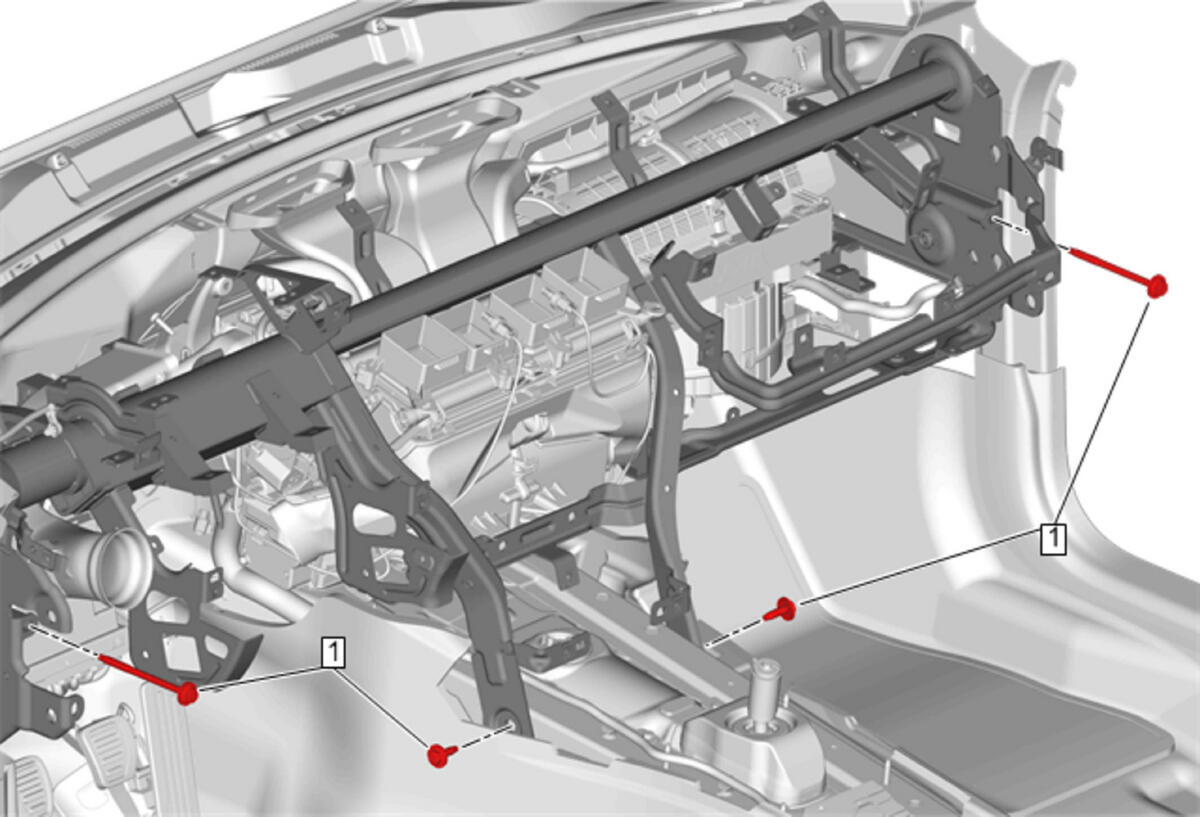

  6. GM4210055Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Instrument Panel Tie Bar Bolt (1) - Install and tighten [4x] 22 N.m (16 lb ft)

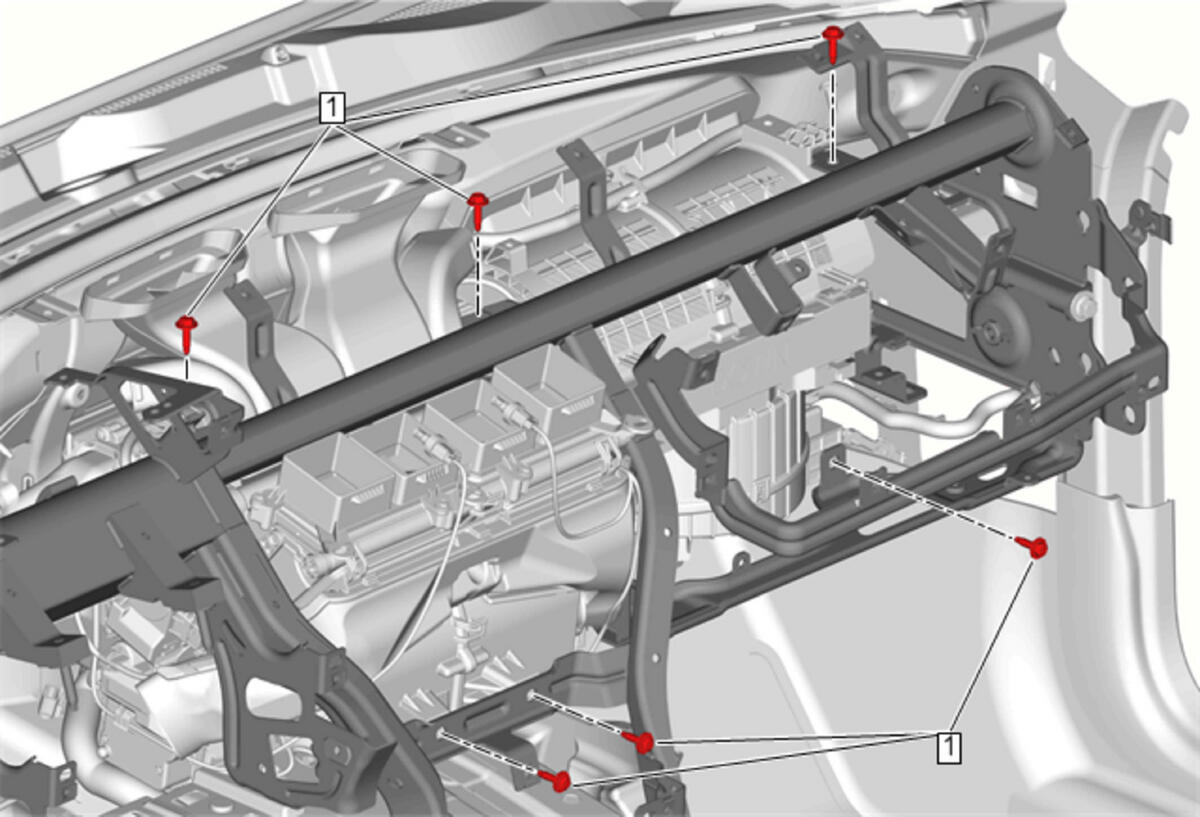

  7. GM4210054Courtesy of GENERAL MOTORS COMPANY

    Heater and Air Conditioning Evaporator and Blower Module Bolt (1) - Install and tighten [6x] 9 N.m (80 lb in)

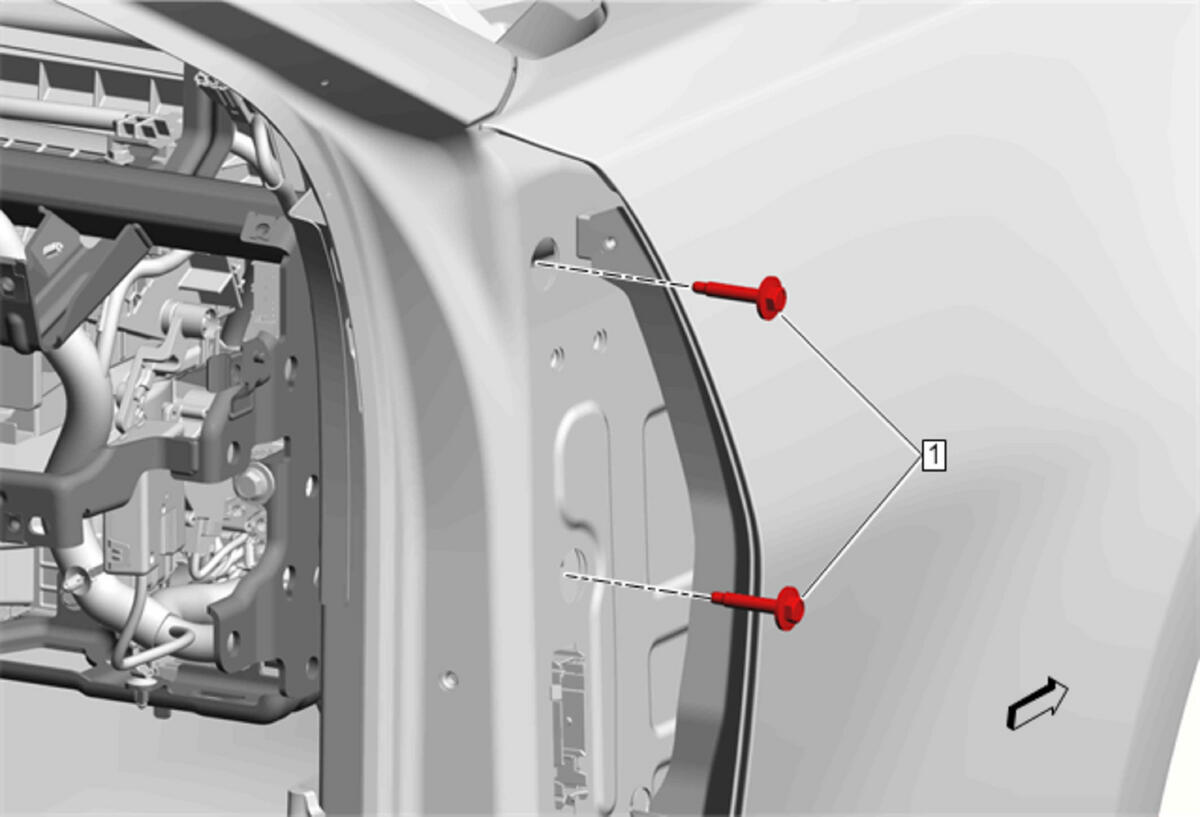

  8. GM4210053Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Tie Bar Bolt (1) - Install and tighten [2x] 22 N.m (16 lb ft)

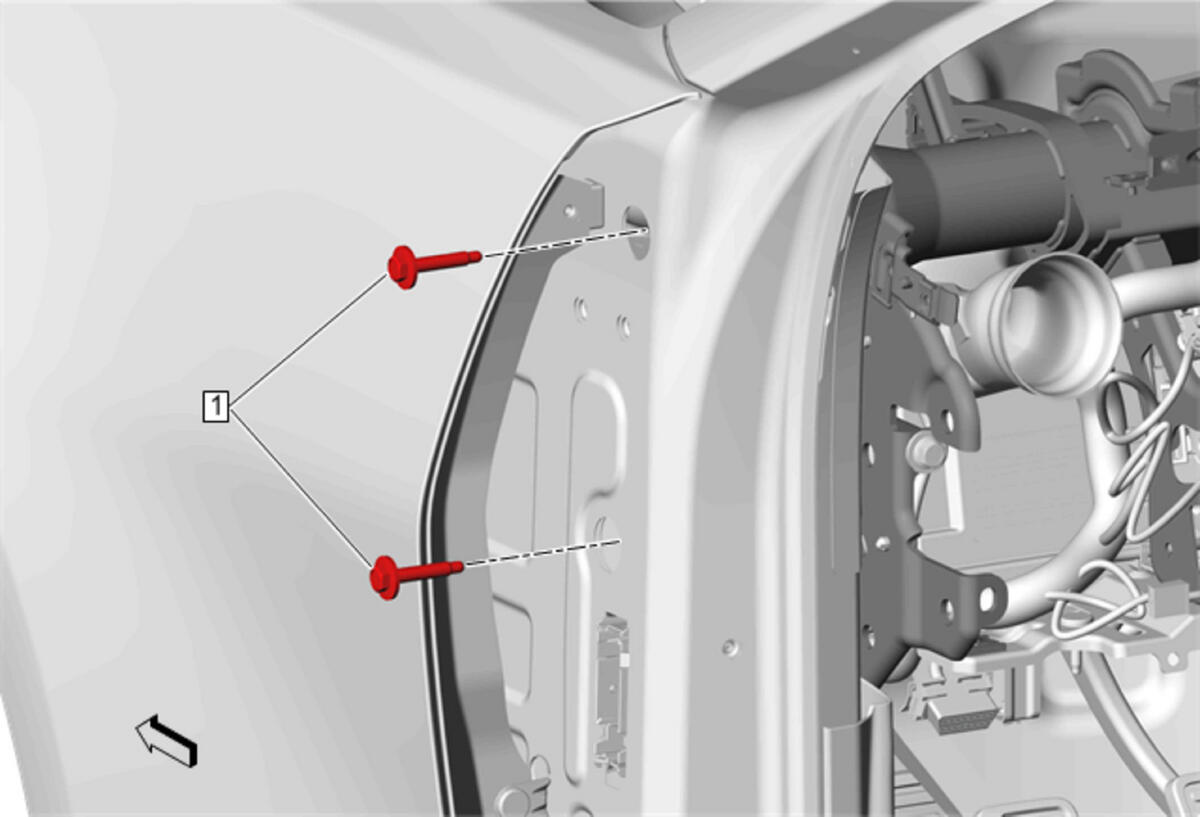

  9. GM4210052Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Tie Bar Bolt (1) - Install and tighten [2x] 22 N.m (16 lb ft)

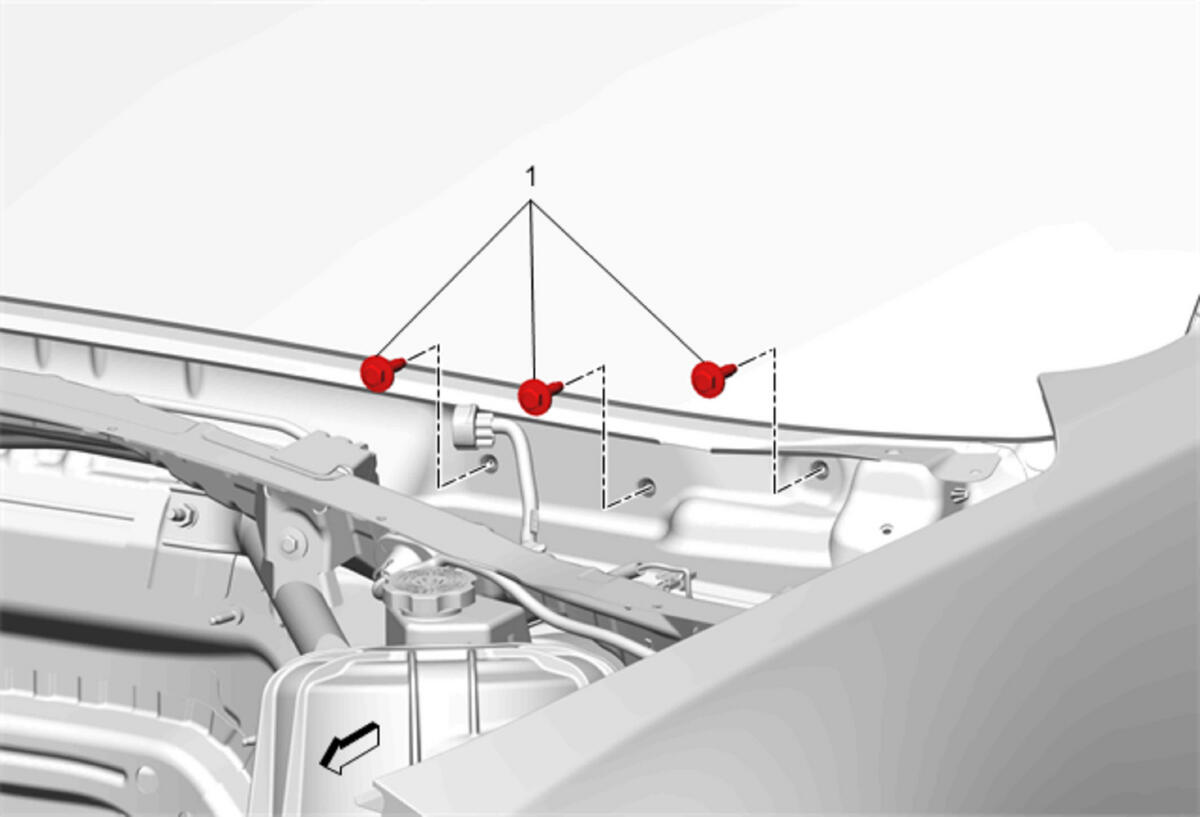

  10. GM4210051Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Tie Bar Bolt (1) - Install and tighten [3x] 22 N.m (16 lb ft)

  11. GM4183579Courtesy of GENERAL MOTORS COMPANY

    Windshield Wiper Transmission Replacement (2) - Install

  12. GM4193765Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Replacement (4) - Install

  13. GM4194386Courtesy of GENERAL MOTORS COMPANY

    Radio Bracket Replacement (2) - Install

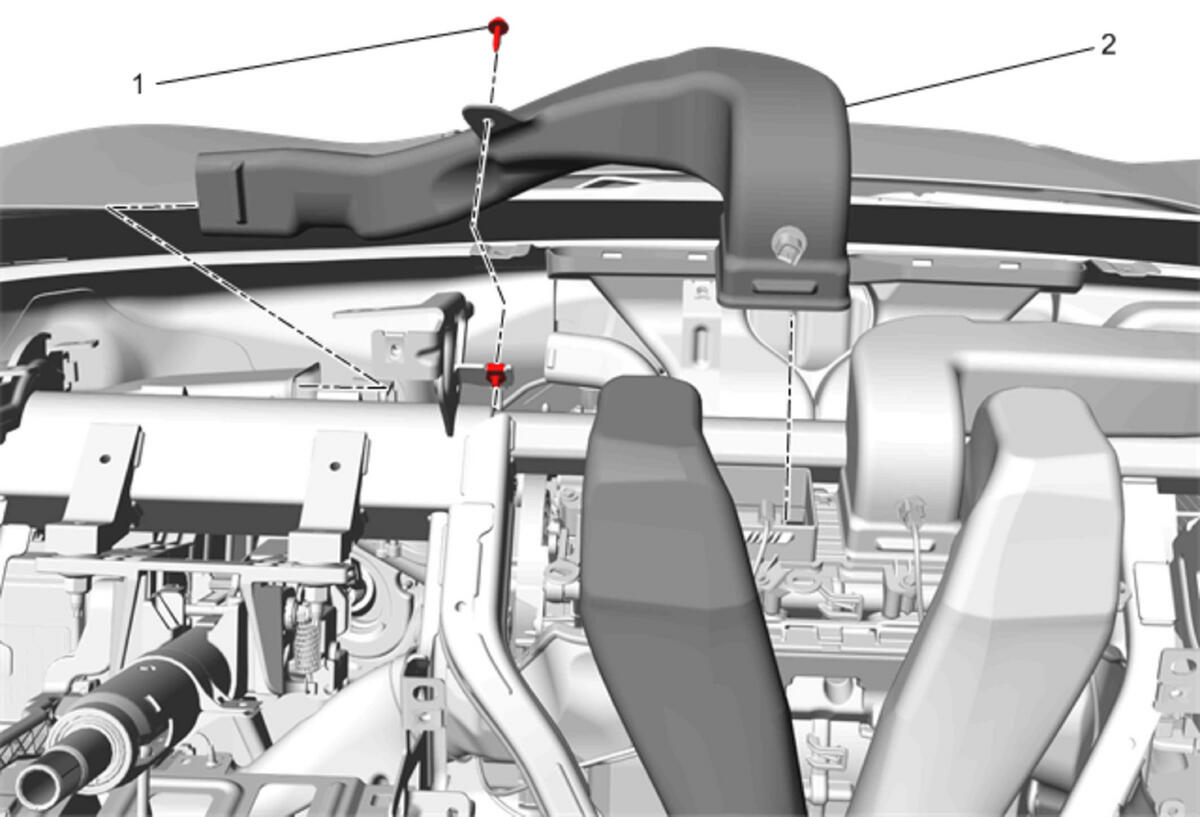

  14. GM4207971Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Outer Air Outlet Duct Replacement - Left Side (Outboard) , or Instrument Panel Outer Air Outlet Duct Replacement - Left Side (Inboard) (2) - Install

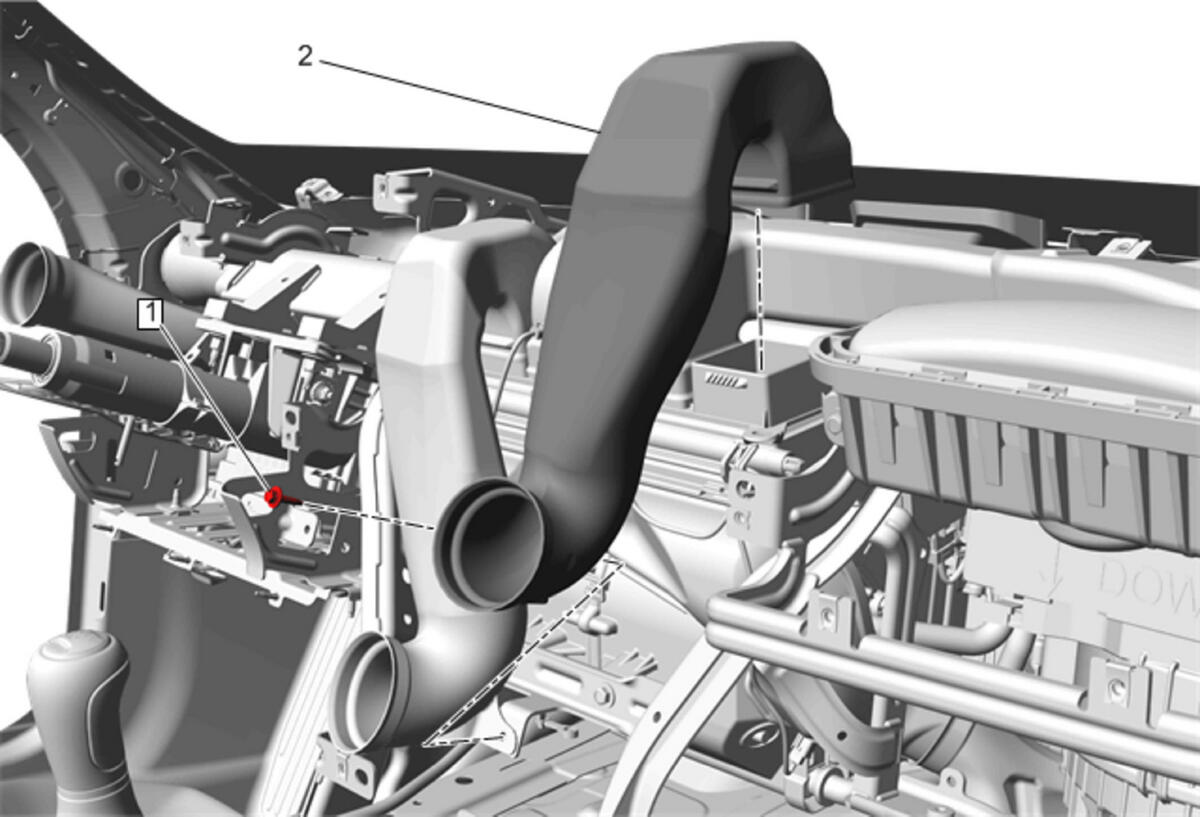

  15. GM4206904Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Center Air Outlet Duct Replacement (Left Side) , or Instrument Panel Center Air Outlet Duct Replacement (Right Side) (2) - Install

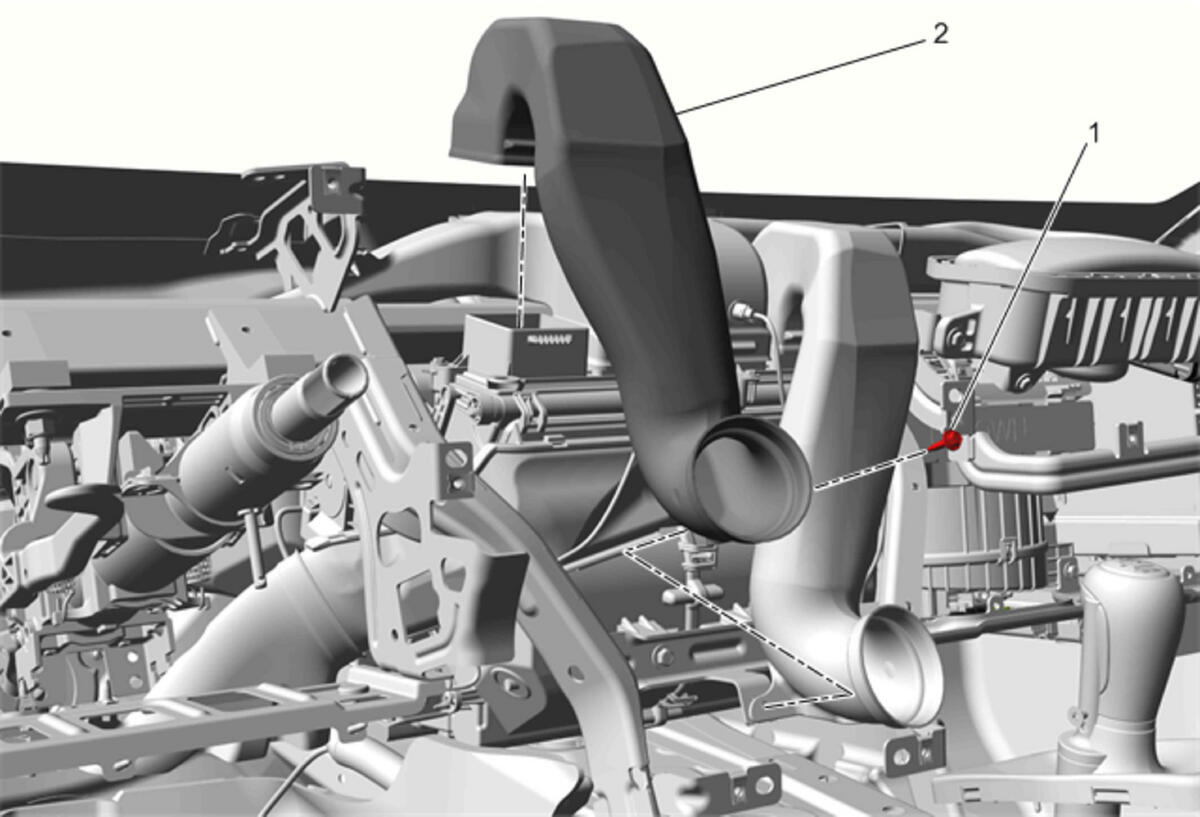

  16. GM4206902Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Center Air Outlet Duct Replacement (Left Side) , or Instrument Panel Center Air Outlet Duct Replacement (Right Side) (2) - Install

  17. GM4182307Courtesy of GENERAL MOTORS COMPANY

    Head-Up Display Replacement (2) - Install - {If equipped}

  18. GM4206664Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Trim Panel Replacement (with UV6) , or Instrument Panel Lower Trim Panel Replacement (without UV6)  (2) - Install

  19. GM4198913Courtesy of GENERAL MOTORS COMPANY

    Steering Column Replacement (1) - Install

  20. GM4195115Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Airbag Replacement - Driver Side (2) - Install

  21. GM4193857Courtesy of GENERAL MOTORS COMPANY

    Low Frequency Instrument Panel Antenna Replacement (1) - Install

  22. GM4182169Courtesy of GENERAL MOTORS COMPANY

    Instrument Cluster Replacement (2) - Install

  23. GM4181093Courtesy of GENERAL MOTORS COMPANY

    Heater and Air Conditioning User Interface Control Replacement (2) - Install

  24. GM4196614Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Replacement  (1) - Install

  25. GM4196441Courtesy of GENERAL MOTORS COMPANY

    Floor Front Air Outlet Duct Replacement - Left Side (2) - Install

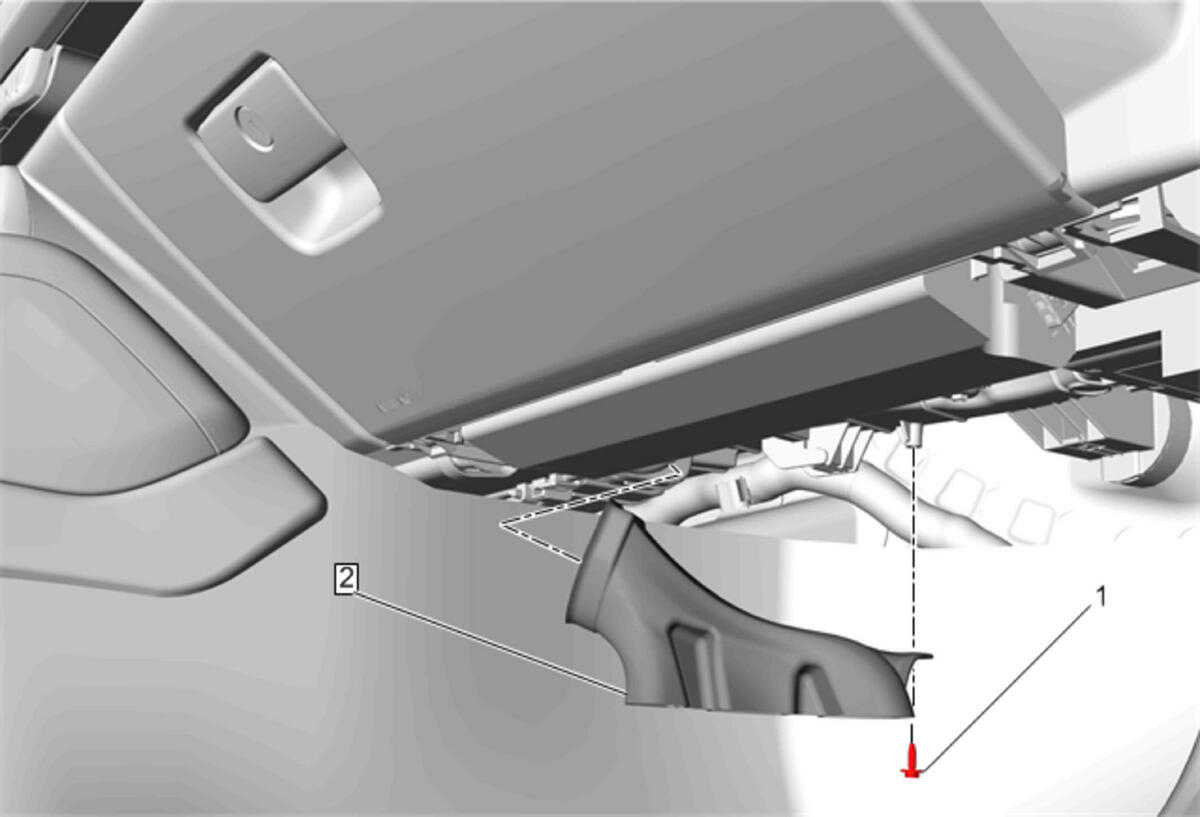

  26. GM4196446Courtesy of GENERAL MOTORS COMPANY

    Floor Front Air Outlet Duct Replacement - Right Side (2) - Install

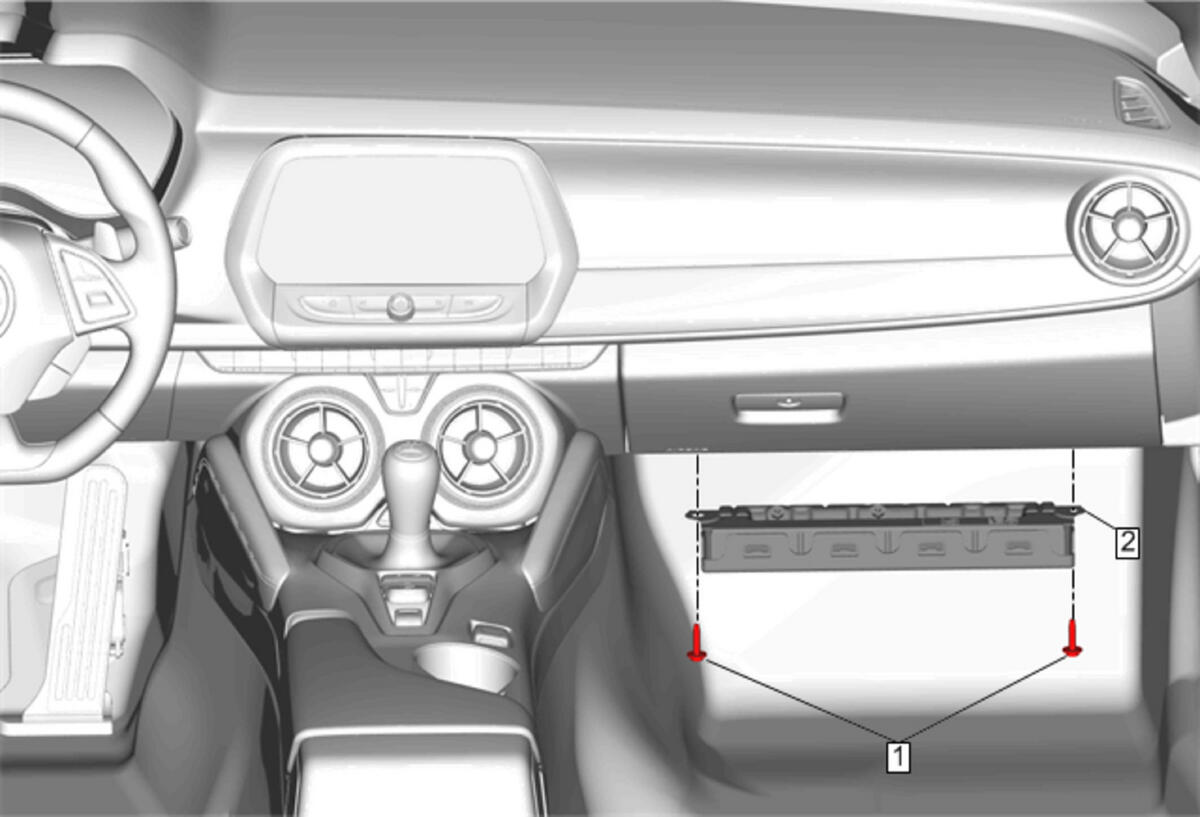

  27. GM4195008Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Airbag Replacement - Passenger Side (2) - Install

  28. GM4179868Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Upper Trim Panel Cover Replacement  (1) - Install

  29. GM4180657Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Compartment Replacement  (2) - Install

  30. GM4180617Courtesy of GENERAL MOTORS COMPANY

    Multiuse Module Bracket Replacement - Instrument Panel  (2) - Install

  31. GM4177233Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Cluster Trim Plate Replacement  (2) - Install

  32. GM4177166Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Center Trim Pad Replacement  (2) - Install

  33. GM4177050Courtesy of GENERAL MOTORS COMPANY

    Radio Control Assembly Replacement (IOS, IOT) (2) - Install

  34. GM4176884Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Accessory Center Trim Plate Replacement (With IOS, IOT) , or Instrument Panel Accessory Center Trim Plate Replacement (With IOR)  (1) - Install

  35. GM4176840Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Outer Trim Cover Replacement  (1) - Install

  36. GM5432172Courtesy of GENERAL MOTORS COMPANY

    Radio Front Speaker Replacement - Right Side (2) - Install

  37. GM5432169Courtesy of GENERAL MOTORS COMPANY

    Radio Front Speaker Replacement - Left Side (2) - Install

  38. GM4179494Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Pad Radio Speaker Opening Cover Replacement  (2) - Install

  39. GM4206540Courtesy of GENERAL MOTORS COMPANY

    Windshield Garnish Molding Replacement - Left Side (Coupe) , or Windshield Garnish Molding Replacement - Left Side (Convertible) (1) - Install

  40. GM4179703Courtesy of GENERAL MOTORS COMPANY

    Radio Front Center Speaker Replacement (2) - Install

  41. GM4952560Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Extension Replacement  (1) - Install

  42. GM4206633Courtesy of GENERAL MOTORS COMPANY

    Windshield Garnish Molding Replacement - Right Side (Coupe) , or Windshield Garnish Molding Replacement - Right Side (Convertible) (1) - Install
