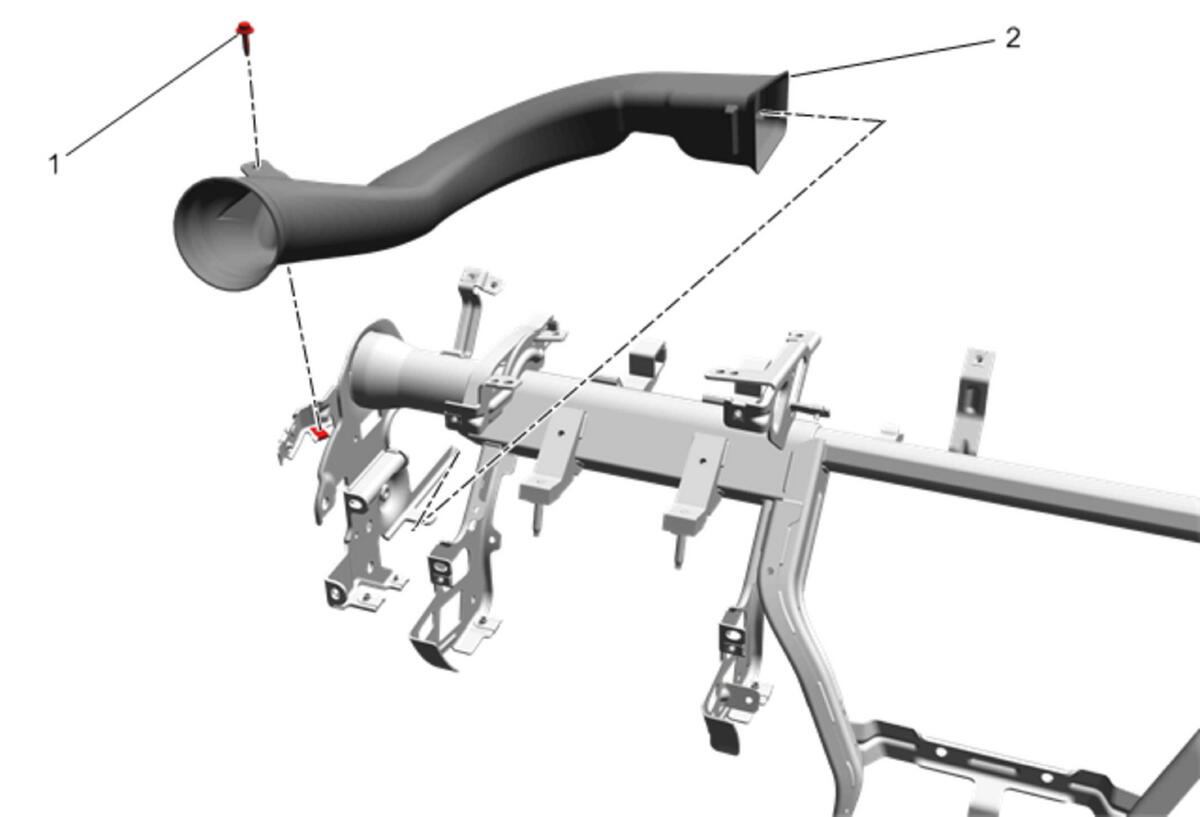

Instrument Panel Outer Air Outlet Duct Replacement - Left Side (Outboard)
| Call out | Component Name |
|---|---|
| Preliminary Procedure Instrument Panel Tie Bar Replacement |
|
| 1 | Instrument Panel Outer Air Outlet Duct Bolt
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 2 | Instrument Panel Outer Air Outlet Duct - Left SideOutboard |
