Removal Procedure

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Relieve the fuel system pressure. Refer to Fuel Pressure Relief .
  3. Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
  4. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  5. Drain the cooling system. Refer to Cooling System Draining and Filling .
  6. Recover the refrigerant. Refer to Refrigerant Recovery and Recharging (R-134a)Refrigerant Recovery and Recharging (R-1234yf) .
  7. Remove the front wheels and tires. Refer to Tire and Wheel Removal and Installation .
  8. Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
  9. Remove the engine control module. Refer to Engine Control Module Replacement .
  10. Remove the battery. Refer to Battery Replacement .
  11. Remove the battery tray. Refer to Battery Tray Replacement (without Engine Block Heater)Battery Tray Replacement (with Engine Block Heater) .
  12. Remove the steering gear dashboard inner seal by turning the seal (1).
    Fig 1: Steering Gear Dashboard Inner Seal, Lower Intermediate Steering Shaft And Bolt
    GM4045046Courtesy of GENERAL MOTORS COMPANY
    NOTE: Turn the steering wheel randomly to lock the steering wheel.
  13. Remove the lower intermediate steering shaft bolt (2) and detach the lower intermediate steering shaft (3).
  14. Remove the engine wiring harness fuse block cover.
    Fig 2: Engine Wiring Harness Fuse Block Cover
    GM4045047Courtesy of GENERAL MOTORS COMPANY
  15. Remove the fuse block. Refer to Fuse Block Replacement .
  16. Remove the ground bolt (1) and put the wiring harness (2) aside.
    Fig 3: Ground Bolt And Wiring Harness
    GM4044936Courtesy of GENERAL MOTORS COMPANY
  17. Remove the shift lever and selector lever cable (1) from the shift control housing (3).
    Fig 4: Shift Lever And Selector Lever Cable, Shift Control Housing And Selector And Shift Lever Cable Bracket
    GM4039055Courtesy of GENERAL MOTORS COMPANY
  18. Press Remove the shift lever and selector lever cable (2) from the selector and shift lever cable bracket (4).
  19. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  20. Remove the exhaust muffler. Refer to Exhaust Muffler Replacement (L5Q)Exhaust Muffler Replacement (LV7) .
  21. Disconnect the heater inlet hose. Refer to Heater Inlet Hose Replacement .
  22. Disconnect the heater outlet hose. Refer to Heater Outlet Hose Replacement .
  23. Remove the brake booster vacuum pipe (1) from the vacuum pump.
    Fig 5: Brake Booster Vacuum Pipe And Vacuum Pump
    GM4035571Courtesy of GENERAL MOTORS COMPANY
  24. Disconnect the fuel feed pipe fitting (1) from the fuel rail.
    Fig 6: Fuel Feed Pipe Fitting And Fuel Rail
    GM4013783Courtesy of GENERAL MOTORS COMPANY
  25. Disconnect the evaporative emission pipe fitting (1) from the evaporative emission canister purge solenoid valve.
    Fig 7: Evaporative Emission Pipe Fitting And Evaporative Emission Canister Purge Solenoid Valve
    GM4013904Courtesy of GENERAL MOTORS COMPANY
  26. Remove the surge tank fixing bolts and set aside.

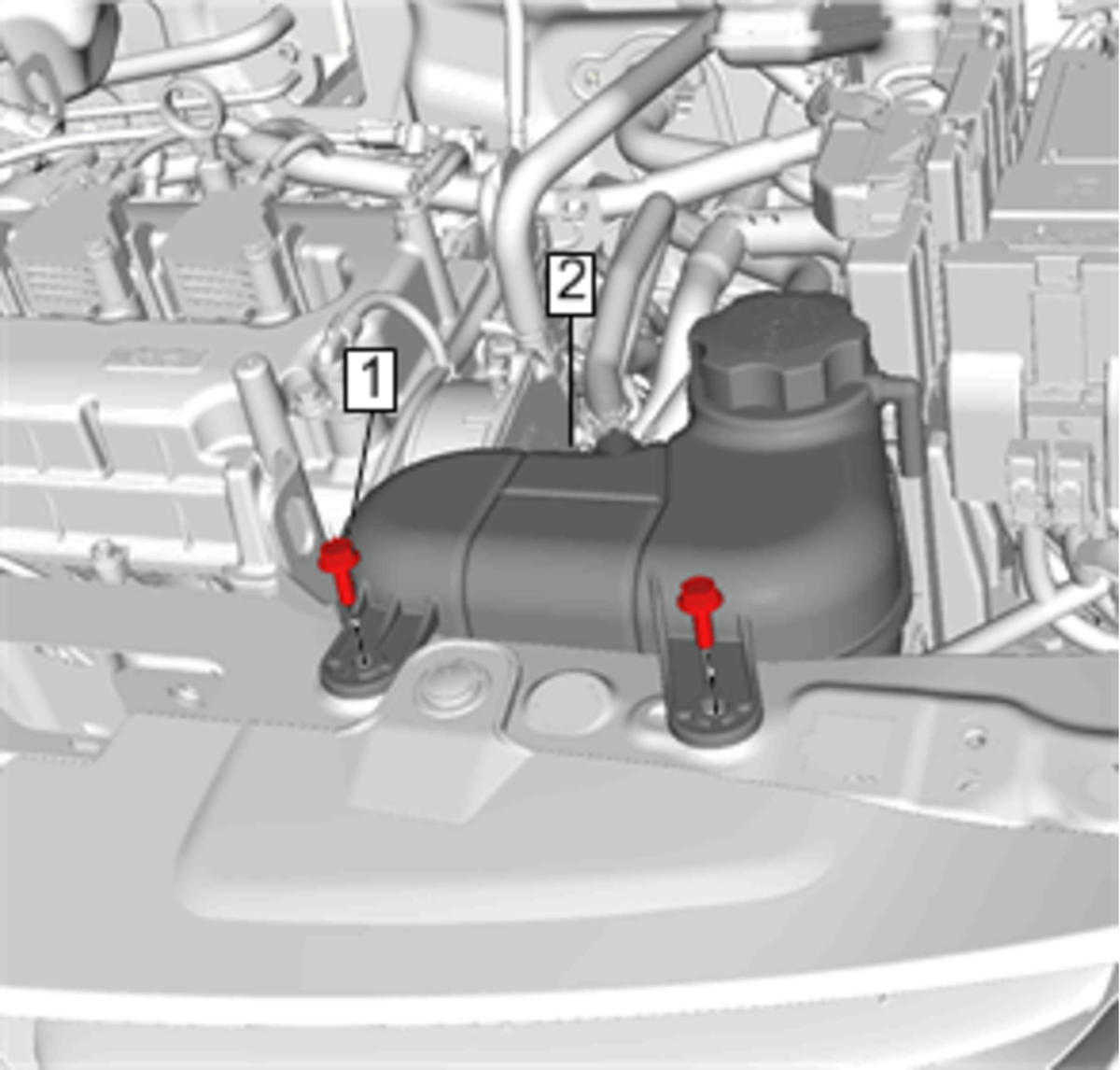

    Fig 8: Surge Tank And Fixing Bolts
    GM4035574Courtesy of GENERAL MOTORS COMPANY
  27. Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .
  28. Remove the radiator air upper baffle and deflector 6 retainers (1) and the radiator air upper baffle and deflector (2). Refer to Radiator Air Upper Baffle and Deflector Replacement .
    Fig 9: Radiator Air Upper Baffle And Deflector And Retainers
    GM4044937Courtesy of GENERAL MOTORS COMPANY
  29. Remove the radiator air lower baffle 5 retainers (1) and the radiator air lower baffle (2). Refer to Radiator Air Lower Baffle Replacement .
    Fig 10: Radiator Air Lower Baffle And Retainers
    GM4044938Courtesy of GENERAL MOTORS COMPANY
  30. Remove the air conditioning evaporator hose assembly bolt (1) from the air conditioning compressor and air conditioning evaporator hose assembly nut (2) from the condenser. Remove the air conditioning evaporator hose assembly (3, 4). Refer to Air Conditioning Evaporator Hose Assembly Replacement (L5Q)Air Conditioning Evaporator Hose Assembly Replacement (LV7) .
    Fig 11: Air Conditioning Evaporator Hose Assembly And Fasteners
    GM4044939Courtesy of GENERAL MOTORS COMPANY
  31. Detach the front brake hose (2) from the strut mounted brake hose retaining bracket and remove the front brake caliper retaining bolts (1) from the front steering knuckle. Repeat for opposite side.
    Fig 12: Front Brake Hose And Front Brake Caliper Retaining Bolts
    GM2308796Courtesy of GENERAL MOTORS COMPANY
    NOTE: DO NOT disconnect the hydraulic brake flexible hose from the brake caliper otherwise complete bleeding of the braking system will be necessary.
  32. Support the front brake caliper with heavy mechanics wire or equivalent. Repeat for opposite side.
    CAUTION: Support the brake caliper with heavy mechanic wire or equivalent, whenever it is separated from its mount and the hydraulic flexible brake hose is still connected. Failure to support the caliper in this manner will cause the flexible brake hose to bear the weight of the caliper, which may cause damage to the brake hose and in turn may cause a brake fluid leak.
  33. Disconnect the outer tie rod assembly from the steering knuckle. Repeat for opposite side. Refer to Steering Linkage Outer Tie Rod Replacement .
  34. Remove the wheel drive shaft nut and washer from the wheel drive shaft and discard. Repeat for opposite side. Refer to Front Wheel Drive Shaft Replacement .
  35. Separate the control arm ball joint from the steering knuckle. Repeat for opposite side. Refer to Lower Control Arm Replacement .
  36. Remove the front upper stabilizer shaft link nut (1) and push the front upper stabilizer shaft link (2) aside. Repeat for opposite side.
    Fig 13: Front Upper Stabilizer Shaft Link Nut
    GM2756919Courtesy of GENERAL MOTORS COMPANY
  37. Disconnect any additional electrical connections as necessary.
  38. Remove the clutch actuator cylinder front pipe retaining clip (1).
    Fig 14: Clutch Actuator Cylinder Front Pipe And Retaining Clip
    GM4010383Courtesy of GENERAL MOTORS COMPANY
  39. Disconnect the clutch actuator cylinder front pipe (2) from the clutch actuator cylinder pipe elbow.
  40. Position the engine assembly on a suitable powertrain table or an engine lifter below the cradle with suitable woodblocks or suitable rubber blocks.
  41. Lower the vehicle until the suitable powertrain table or the engine lifter with suitable woodblocks or suitable rubber blocks.
  42. Remove the cradle bracket bolts (1).
    Fig 15: Cradle Bracket Bolts
    GM4041666Courtesy of GENERAL MOTORS COMPANY
  43. Remove the cradle front bolts (1) and washers (2) and cradle rear bolts (3) and washers (4).
    Fig 16: Cradle Front Bolts And Washers
    GM4041668Courtesy of GENERAL MOTORS COMPANY
  44. Mark the location of the bolts before removing.
    Fig 17: Engine Mount Bolts
    GM4043897Courtesy of GENERAL MOTORS COMPANY
  45. Remove the engine mount retaining bolts (1) from the engine mount (2).
  46. Mark the location of the bolts before removing.
    Fig 18: Transmission Mount Bolts
    GM4043936Courtesy of GENERAL MOTORS COMPANY
  47. Remove the left transmission mount bolts (1) from the transmission mount bracket (2).
  48. With the aid of an assistant, lower the engine lifter or raise the vehicle to remove the engine, transmission and cradle assembly from the vehicle.
    NOTE: Make sure that all the hoses, wires, pipes and front struts clear the vehicle during the removal process.
  49. Remove the engine master harness wiring assembly (1) from the engine assembly.
    Fig 19: Engine Master Harness Wiring Assembly
    GM4044940Courtesy of GENERAL MOTORS COMPANY
  50. Remove the battery positive cable assembly and body master harness wiring assembly (1) from the engine assembly.
    Fig 20: Battery Positive Cable Assembly And Body Master Harness Wiring Assembly
    GM4044942Courtesy of GENERAL MOTORS COMPANY
  51. Remove the air cleaner outlet duct (1) from the engine assembly.
    Fig 21: Air Cleaner Outlet Duct
    GM4044944Courtesy of GENERAL MOTORS COMPANY
  52. Remove the radiator inlet hose. Refer to Radiator Inlet Hose Replacement .
  53. Remove the radiator outlet hose. Refer to Radiator Outlet Hose Replacement .
  54. Remove the air conditioning compressor and condenser hose. Refer to Air Conditioning Compressor and Condenser Hose Replacement .
  55. Remove the radiator. Refer to Radiator Replacement .
  56. Remove the both front wheel drive shafts (1) from the transmission. Refer to Front Wheel Drive Shaft Replacement .
    Fig 22: Front Wheel Drive Shaft
    GM4039284Courtesy of GENERAL MOTORS COMPANY
  57. Remove the transmission upper bolts (1) and nut (2) from the transmission.
    Fig 23: Transmission Upper Bolts And Nut
    GM4039268Courtesy of GENERAL MOTORS COMPANY
  58. Remove the transmission rear mount bracket. Refer to Transmission Rear Mount Bracket Replacement .
  59. Support the transmission with a suitable jack.
  60. Remove the transmission lower bolt (1).
    Fig 24: Transmission Lower Bolts And Transmission Side Cover
    GM4039276Courtesy of GENERAL MOTORS COMPANY
  61. Remove the transmission side cover (2).
  62. Separate the transmission from the engine.
  63. Lower the transmission with the transmission jack far enough to remove the transmission.
  64. Install the engine to an engine stand.
  65. Transfer parts as needed.
