Front Bumper Fascia Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

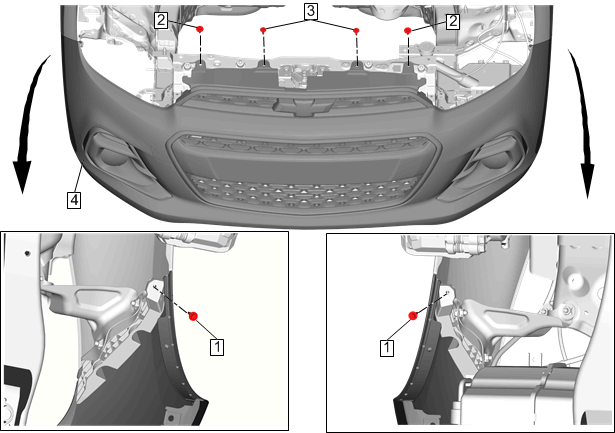

Fig 1: Front Bumper Fascia

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement . Remove the front compartment insulator. Refer to Front Compartment Insulator Replacement . Remove the head lamp. Refer to Headlamp Replacement (Projection/SBV)Headlamp Replacement (BASE/SBM) .
1	Front Bumper Fascia Side Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Front Bumper Fascia Bolt (Qty: 2) Tighten 6 N.m (53 lb in)
3	Front Bumper Fascia Retainer (Qty: 2)
4	Front Bumper Fascia Procedure Unclip from front bumper fascia guides. Pull forward to remove the front bumper fascia. Disconnect any electrical connectors. Transfer parts as needed.
