Installation Procedure

  1. Remove the engine from the engine stand.
  2. GM4039268Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Combine the engine with the transmission, and tighten upper bolts (1) and nut (2) to 58 N.m (43 lb ft). Refer to Transmission Replacement (With 1.0L Engine) .

  3. GM4039276Courtesy of GENERAL MOTORS COMPANY

    Install the transmission side cover (2).

  4. Install the transmission lower bolt (1) and tighten to 58 N.m (43 lb ft).
  5. Install the transmission rear mount bracket. Refer to Transmission Rear Mount Bracket Replacement .
  6. GM4039284Courtesy of GENERAL MOTORS COMPANY

    Install the both front wheel drive shafts (1) from the transmission. Refer to Front Wheel Drive Shaft Replacement .

  7. Install the radiator. Refer to Radiator Replacement
  8. Install the air conditioning compressor and condenser hose. Refer to Air Conditioning Compressor and Condenser Hose Replacement .
  9. Install the radiator outlet hose. Refer to Radiator Outlet Hose Replacement .
  10. Install the radiator inlet hose. Refer to Radiator Inlet Hose Replacement .
  11. GM4044944Courtesy of GENERAL MOTORS COMPANY

    Install the air cleaner outlet duct (1) from the engine assembly.

  12. GM4044942Courtesy of GENERAL MOTORS COMPANY

    Install the battery positive cable assembly and body master harness wiring assembly (1) from the engine assembly.

  13. GM4044940Courtesy of GENERAL MOTORS COMPANY

    Install the engine master harness wiring assembly (1) from the engine assembly.

  14. With the aid of an assistant, raise the table and/or lower the vehicle to install the engine, transmission, and cradle assembly to the vehicle.

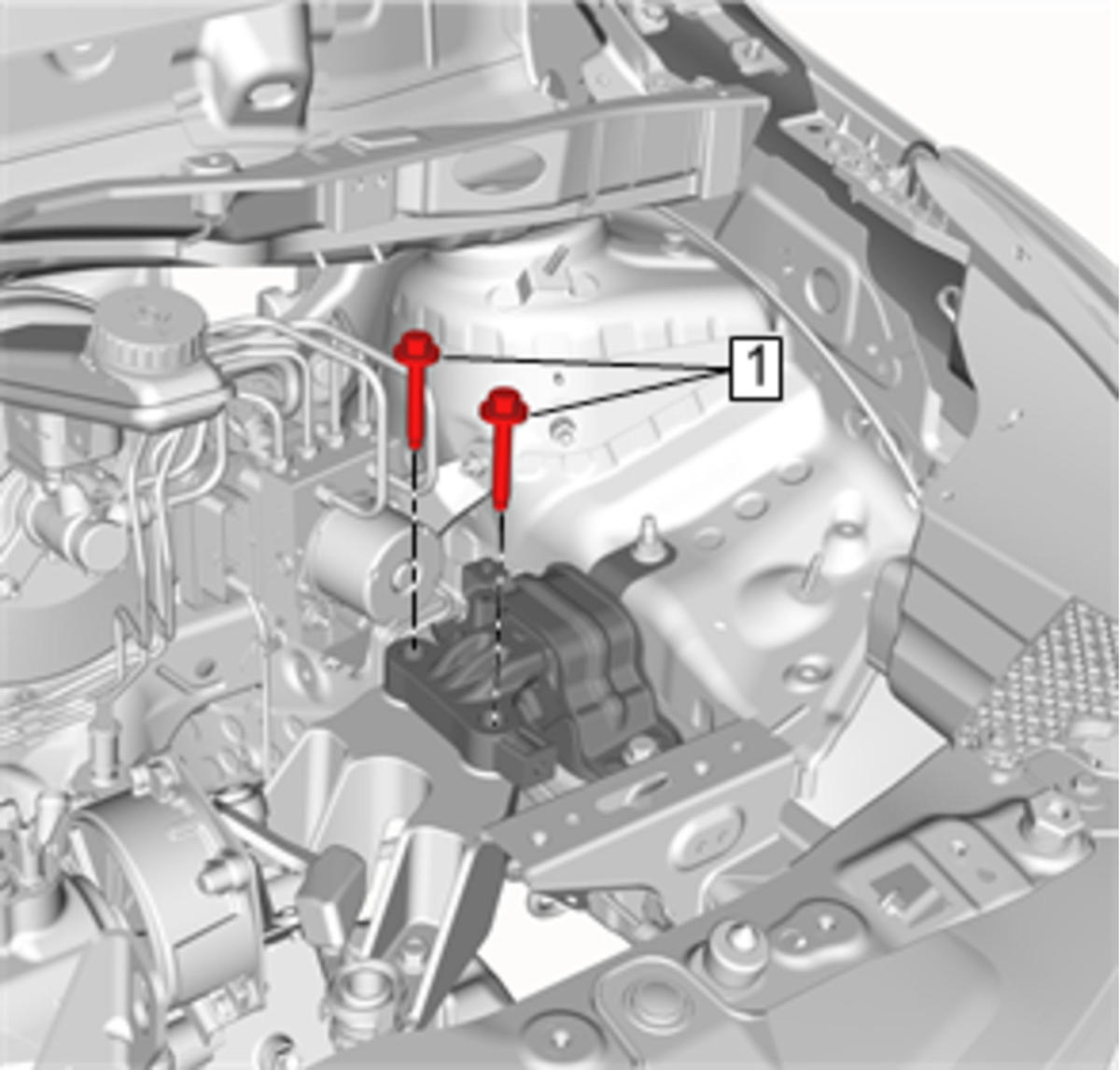

  15. GM4043936Courtesy of GENERAL MOTORS COMPANY

    Install the transmission mount bolts (1) and tighten to 58 N.m (43 lb ft) + 60 - 75 degrees.

  16. GM4043897Courtesy of GENERAL MOTORS COMPANY

    Install the engine mount bolts (1) and tighten to 58 N.m (43 lb ft) + 60 - 75 degrees.

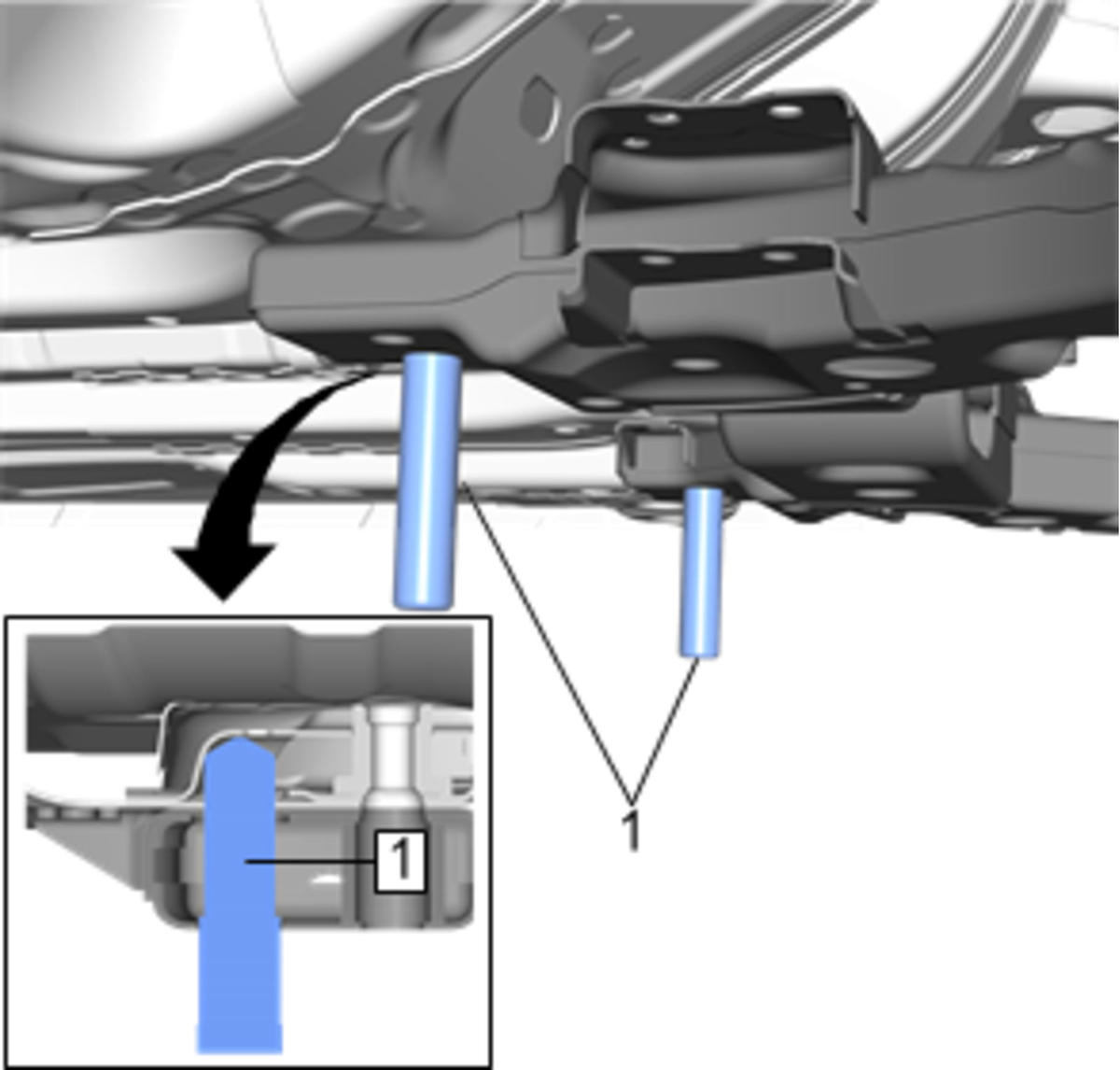

  17. GM4041670Courtesy of GENERAL MOTORS COMPANY

    Using the CH-51034  cradle alignment guide pins (1), have an assistant vertically insert and hold the pins through the front suspension cradle and floor panel.

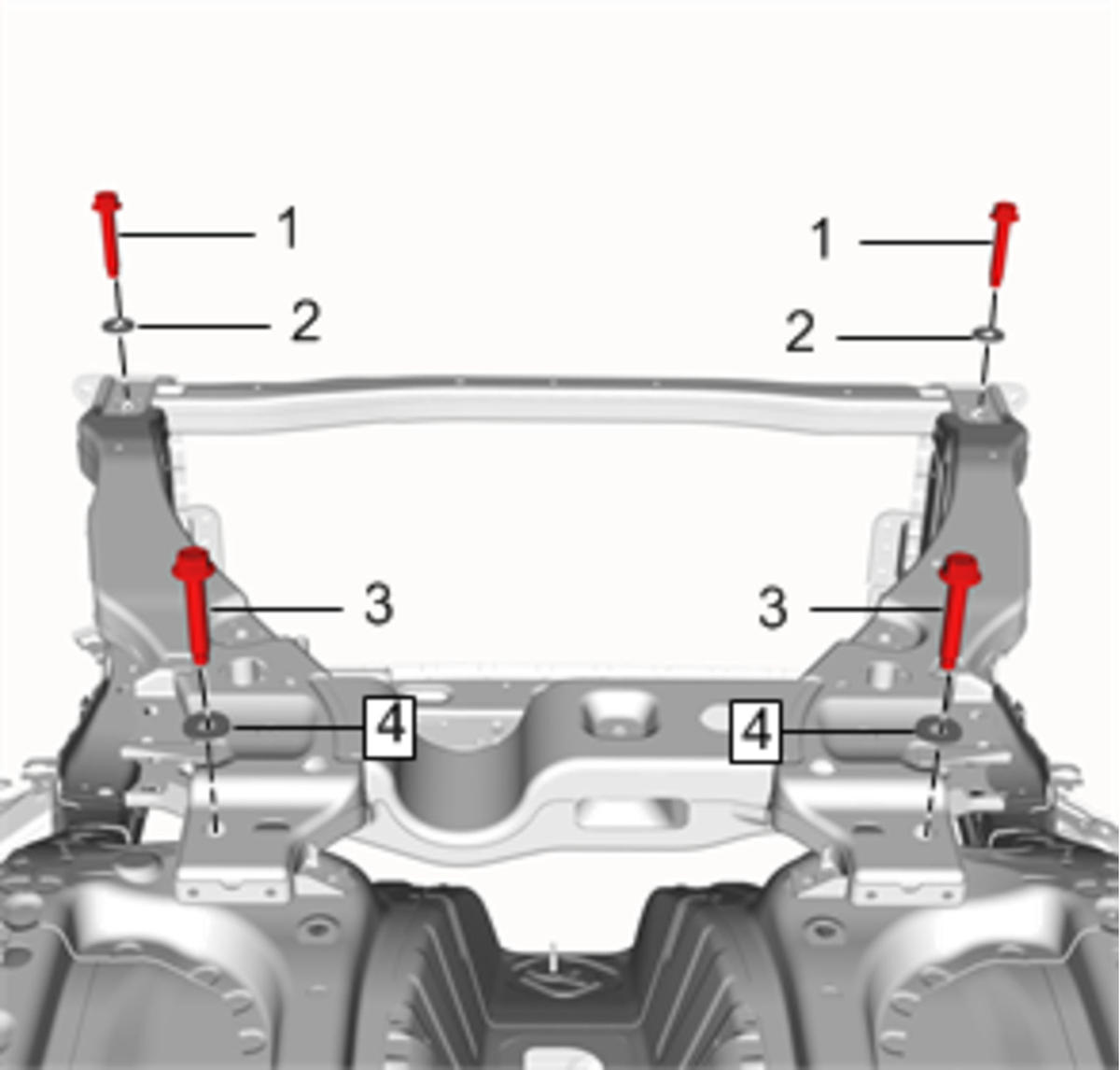

  18. GM4041668Courtesy of GENERAL MOTORS COMPANY

    Install the cradle front washers (2) and bolts (1), and cradle rear washers (4) and bolts (3) and tighten the cradle front and rear bolts to 120 N.m (89 lb ft) + 30 - 45 degrees.

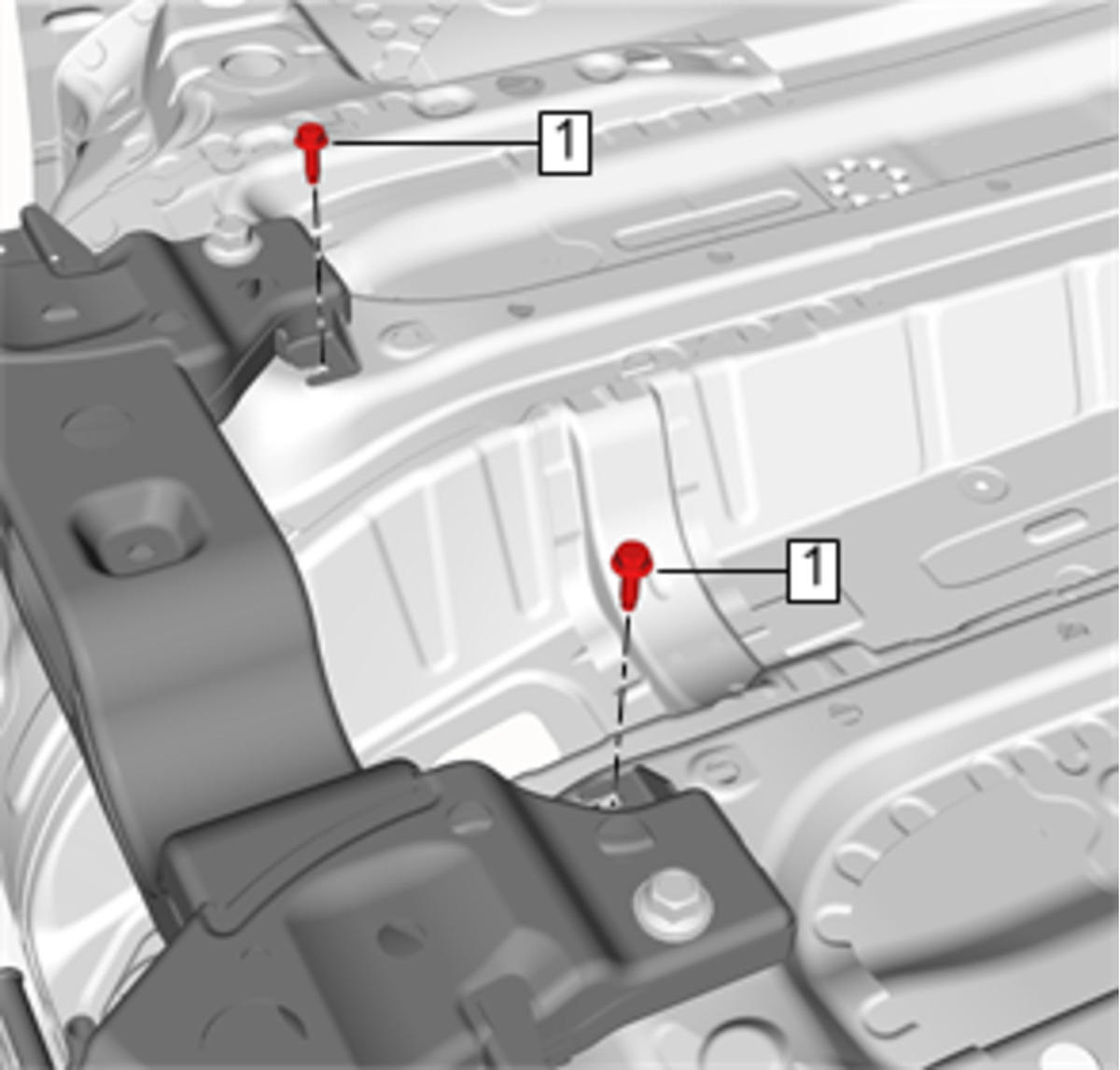

  19. GM4041666Courtesy of GENERAL MOTORS COMPANY

    Install the cradle bracket bolts (1) and tighten to 26 N.m (19 lb ft).

  20. GM4010383Courtesy of GENERAL MOTORS COMPANY

    Connect the clutch actuator cylinder front pipe (2) to the clutch actuator cylinder pipe elbow.

  21. Install the retaining clip (1).

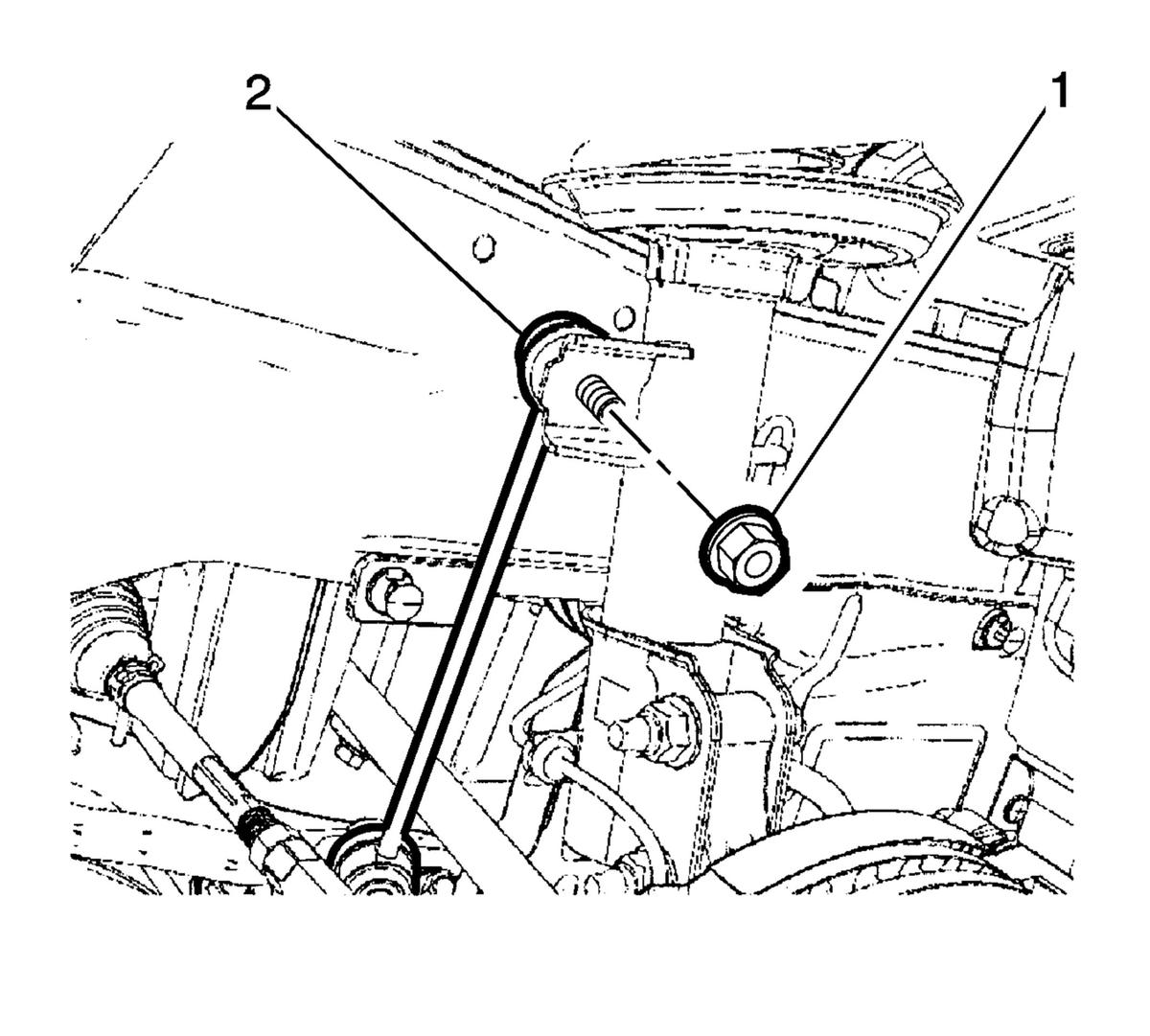

  22. GM2756919Courtesy of GENERAL MOTORS COMPANY

    Install the front upper stabilizer shaft link nut (1) to the front upper stabilizer shaft link (2) and tighten to 70 N.m (52 lb ft). Repeat for opposite side.

  23. Install the control arm ball joint to the steering knuckle. Repeat for opposite side. Refer to Lower Control Arm Replacement .
  24. Install the wheel drive shaft nut and washer to the wheel drive shaft. Repeat for opposite side. Refer to Front Wheel Drive Shaft Replacement .
  25. Connect the outer tie rod assembly from the steering knuckle. Repeat for opposite side. Refer to Steering Linkage Outer Tie Rod Replacement .

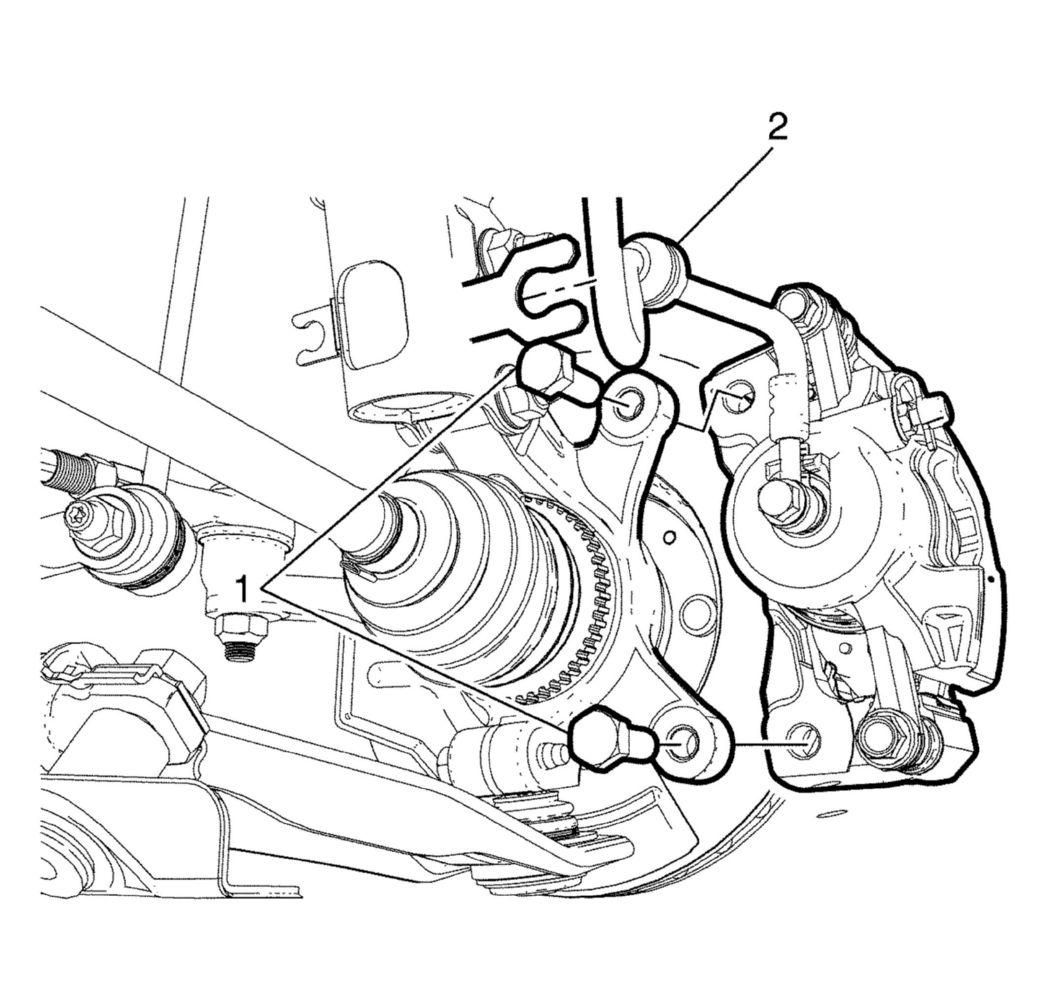

  26. GM2308796Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Make sure the brake hose is not twisted or kinked after installation. Damage to the hose could result.

    Remove the heavy mechanics wire, or equivalent support from the brake caliper.

  27. Install the lower brake caliper guide pin bolts (1) and tighten to 28 N.m (21 lb ft).
  28. Attach the brake hose (2) to the strut mounted brake hose retaining bracket. Repeat for opposite side.

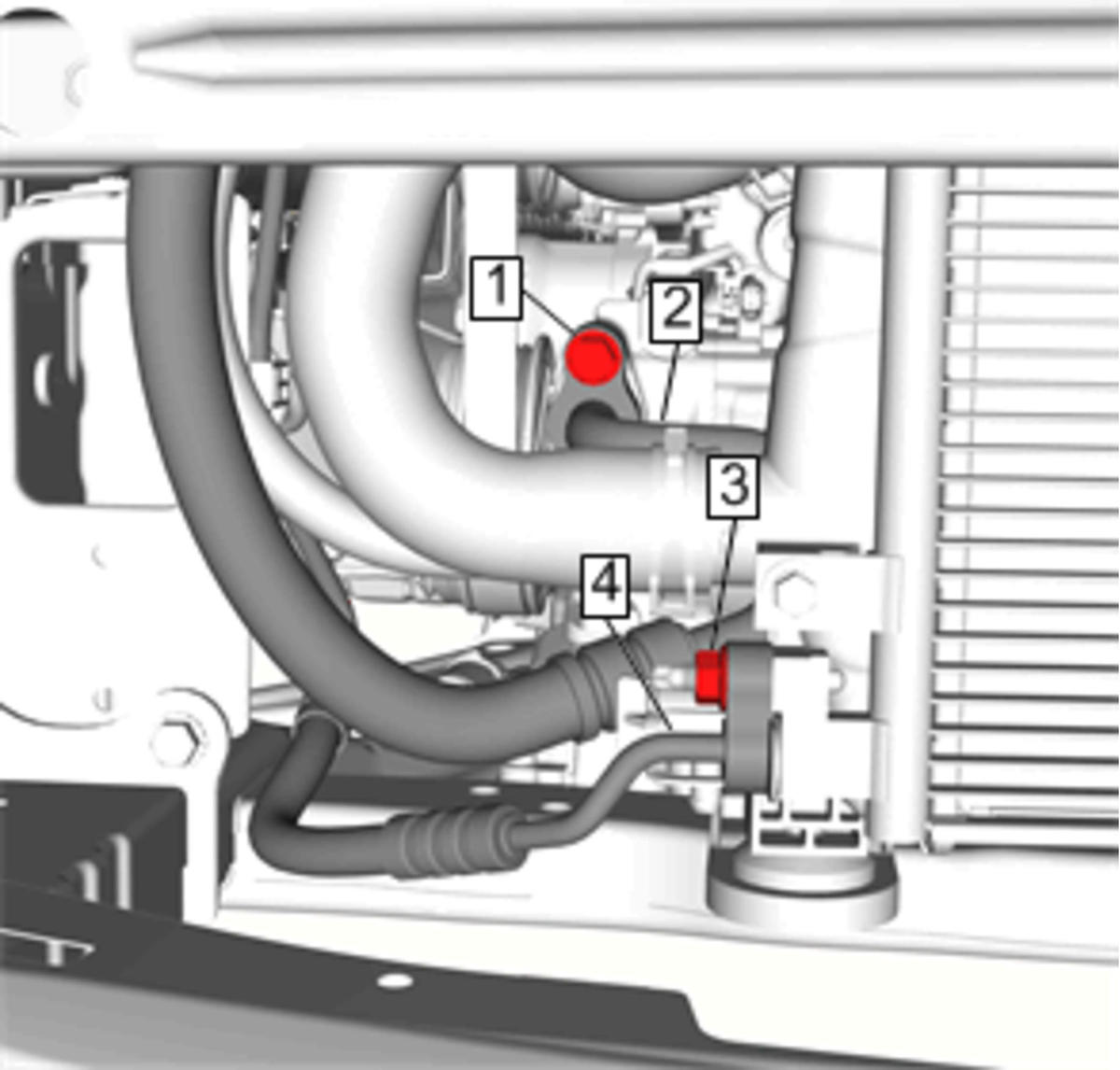

  29. GM4044939Courtesy of GENERAL MOTORS COMPANY

    Install the air conditioning evaporator hose assembly bolt (1) to the air conditioning compressor and air conditioning evaporator hose assembly nut (2) to the condenser. Install the air conditioning evaporator hose assembly (3, 4). Refer to Air Conditioning Evaporator Hose Assembly Replacement (L5Q) .

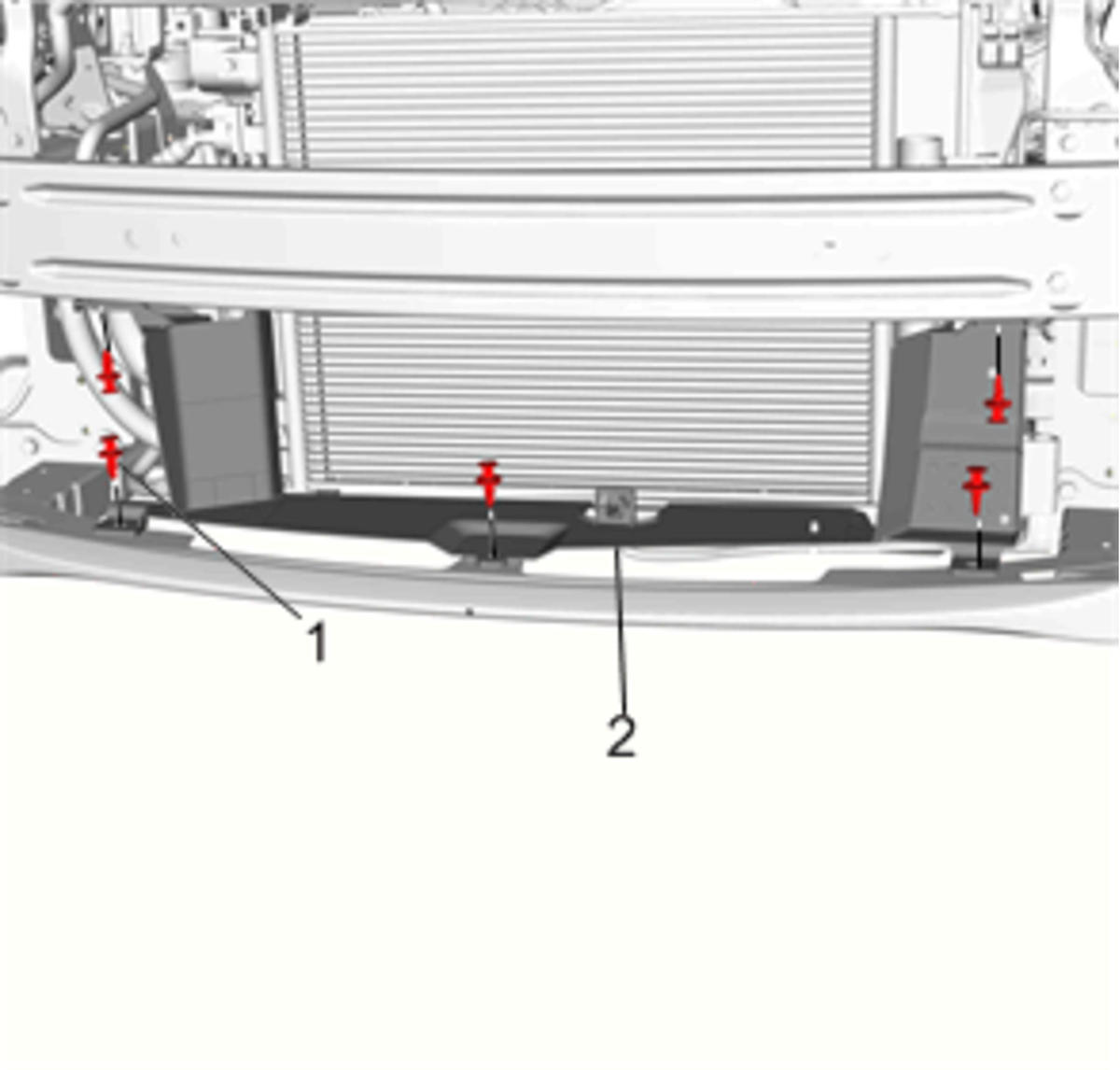

  30. GM4044938Courtesy of GENERAL MOTORS COMPANY

    Install the radiator air lower baffle 5 retainers (1) and the radiator air lower baffle (2). Refer to Radiator Air Lower Baffle Replacement .

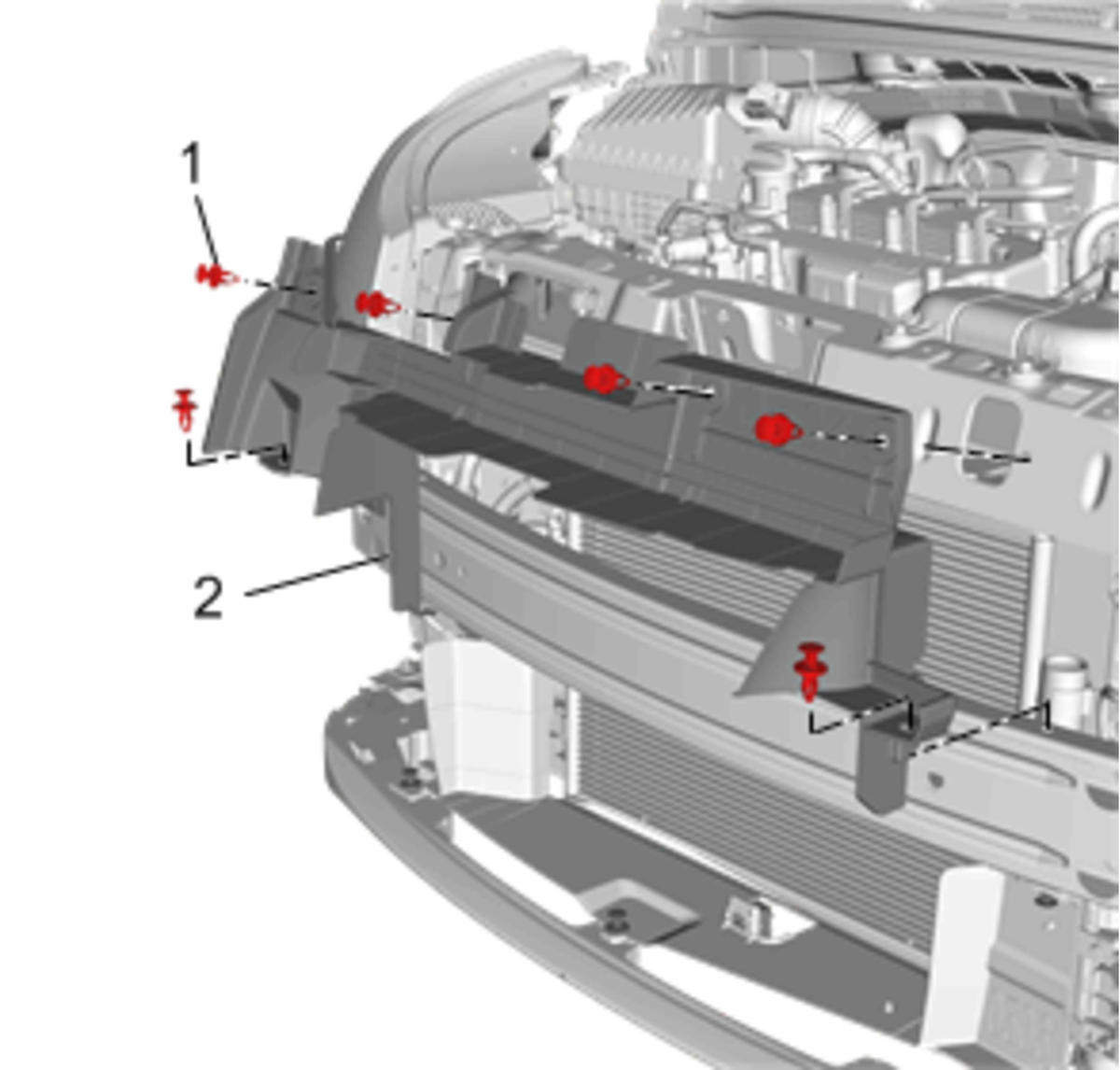

  31. GM4044937Courtesy of GENERAL MOTORS COMPANY

    Install the radiator air upper baffle and deflector 6 retainers (1) and the radiator air upper baffle and deflector (2). Refer to Radiator Air Upper Baffle and Deflector Replacement .

  32. GM4045051Courtesy of GENERAL MOTORS COMPANY

    Install the surge tank fixing bolts and tighten to 5 N.m (44 lb in).

  33. Install the front bumper fascia. Refer to Front Bumper Fascia Replacement .

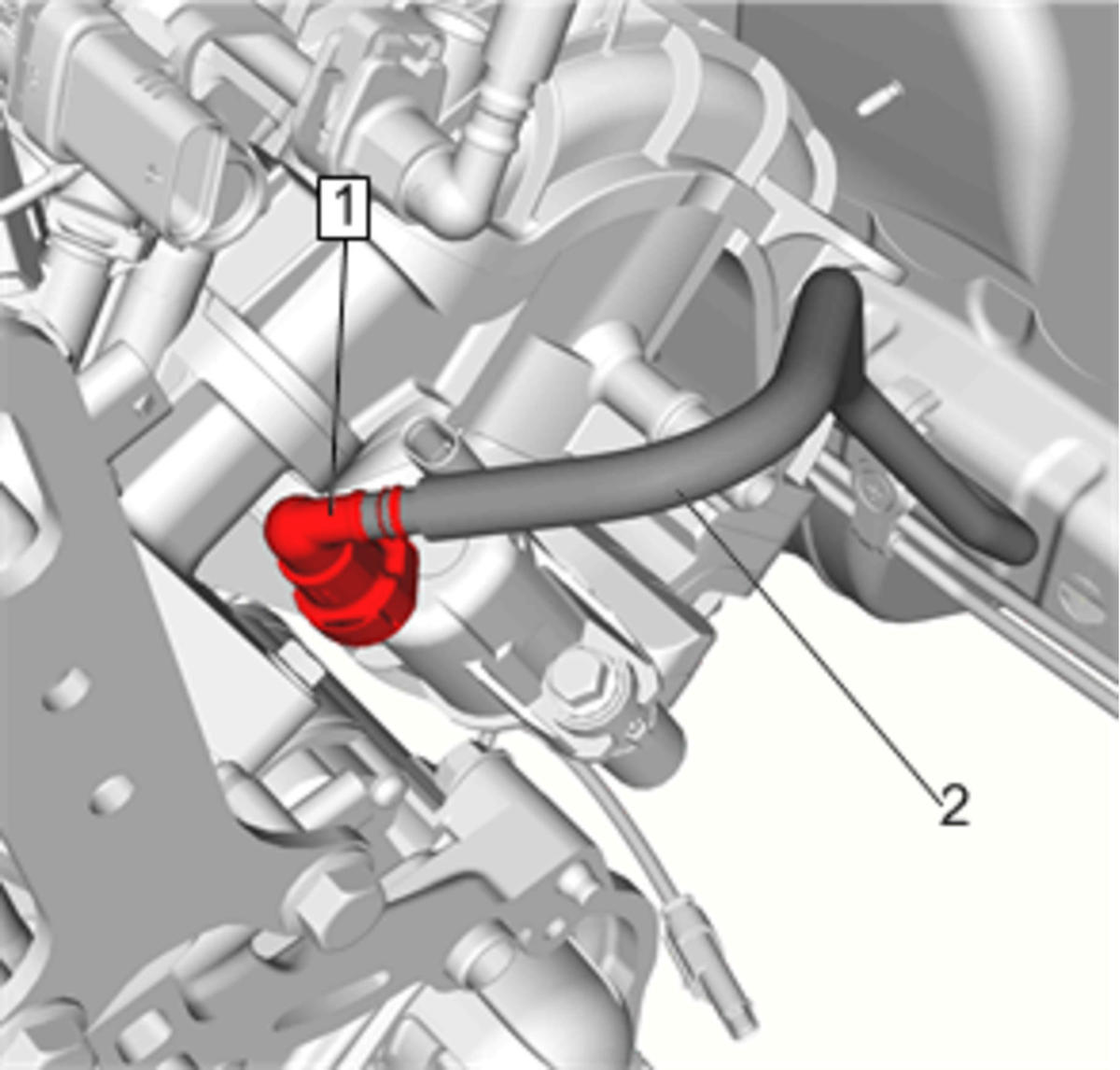

  34. GM4013904Courtesy of GENERAL MOTORS COMPANY

    Connect the evaporative emission pipe fitting (1) from the evaporative emission canister purge solenoid valve.

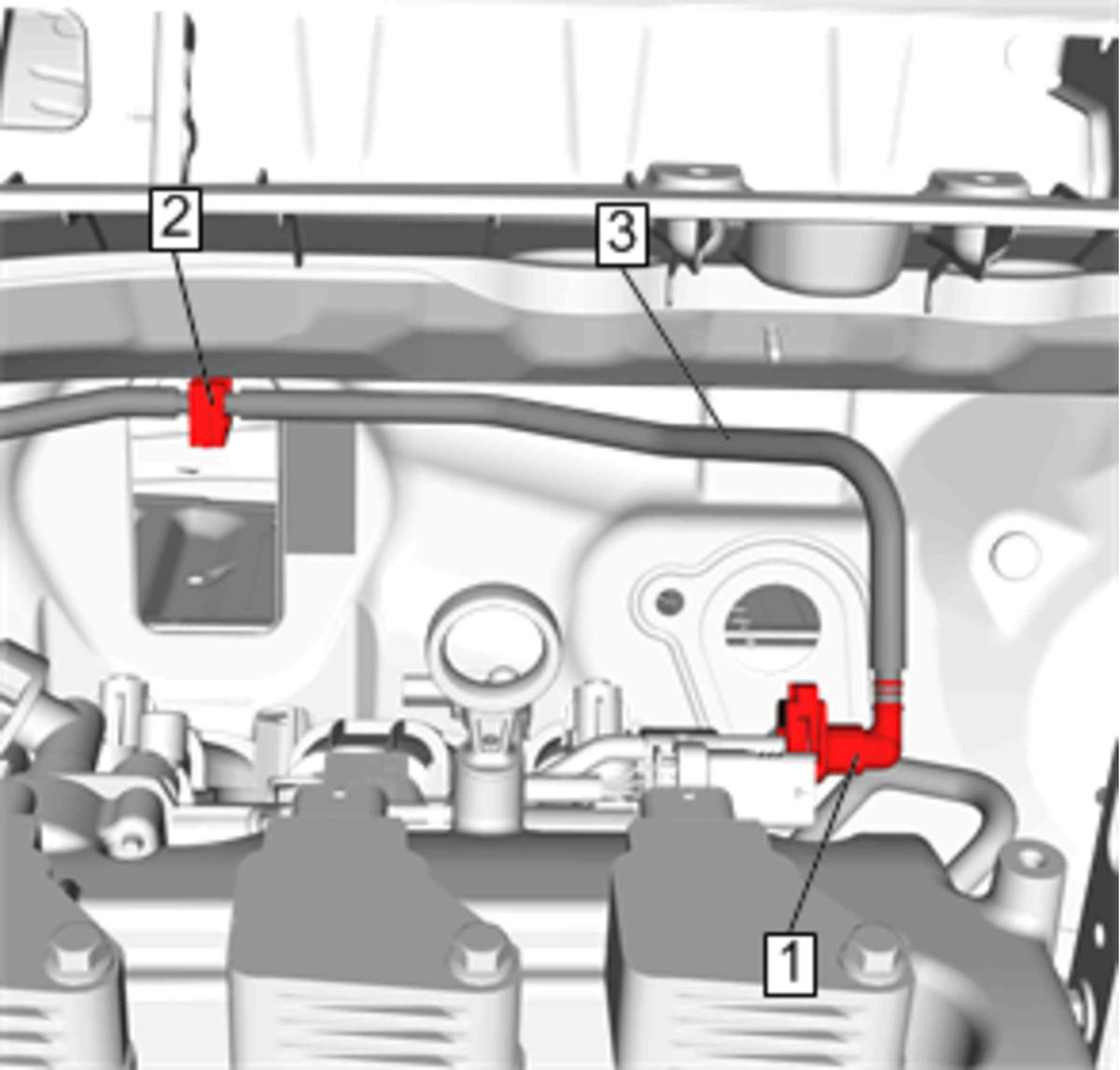

  35. GM4013783Courtesy of GENERAL MOTORS COMPANY

    Connect the fuel feed pipe fitting (1) from the fuel rail.

  36. GM4035571Courtesy of GENERAL MOTORS COMPANY

    Install the brake booster vacuum pipe (1) from the vacuum pump.

  37. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  38. Connect the heater outlet hose. Refer to Heater Outlet Hose Replacement .
  39. Connect the heater inlet hose. Refer to Heater Inlet Hose Replacement .
  40. Install the exhaust muffler. Refer to Exhaust Muffler Replacement (L5Q) .
  41. Lower the vehicle.
  42. GM4039055Courtesy of GENERAL MOTORS COMPANY

    Install the shift lever and selector lever cable (2) to the selector and shift lever cable bracket (4).

  43. Install the shift lever and selector lever cable (1) to the shift control housing (3).

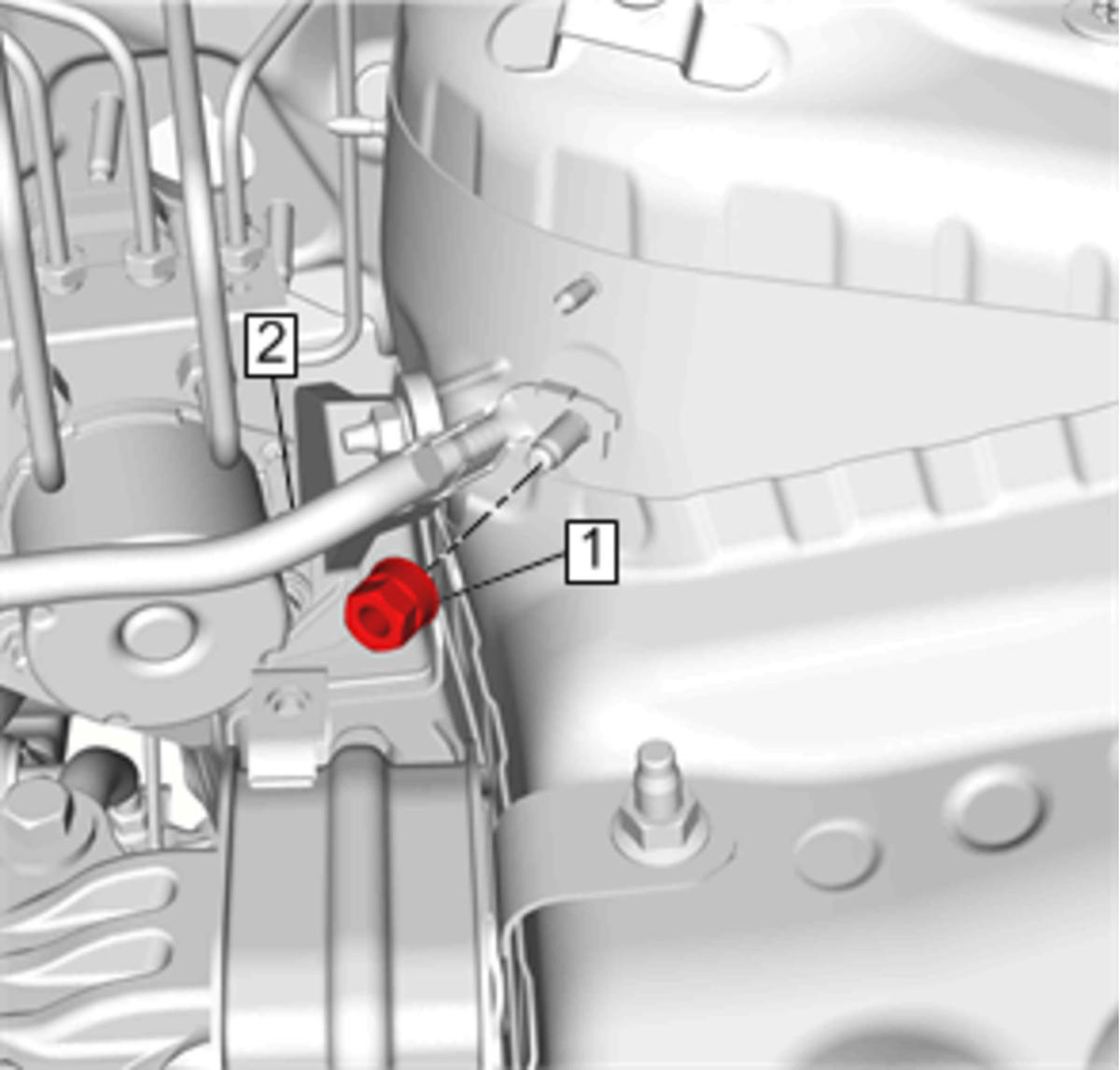

  44. GM4044936Courtesy of GENERAL MOTORS COMPANY

    Install the wiring harness (2) and ground bolt. Tighten to 9 N.m (80 lb in).

  45. Install the fuse block. Refer to Fuse Block Replacement .

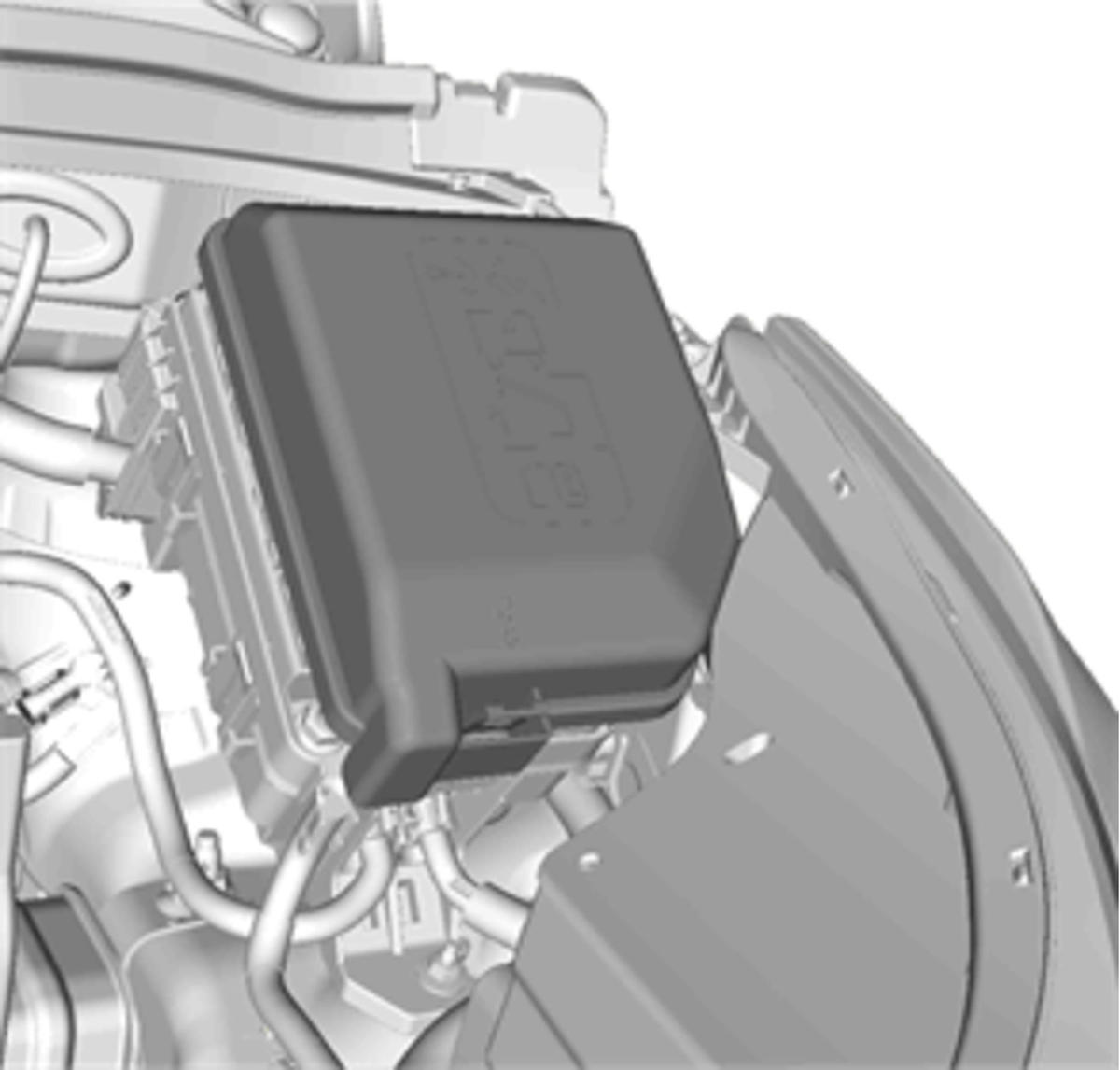

  46. GM4045047Courtesy of GENERAL MOTORS COMPANY

    Install the engine wiring harness fuse block cover.

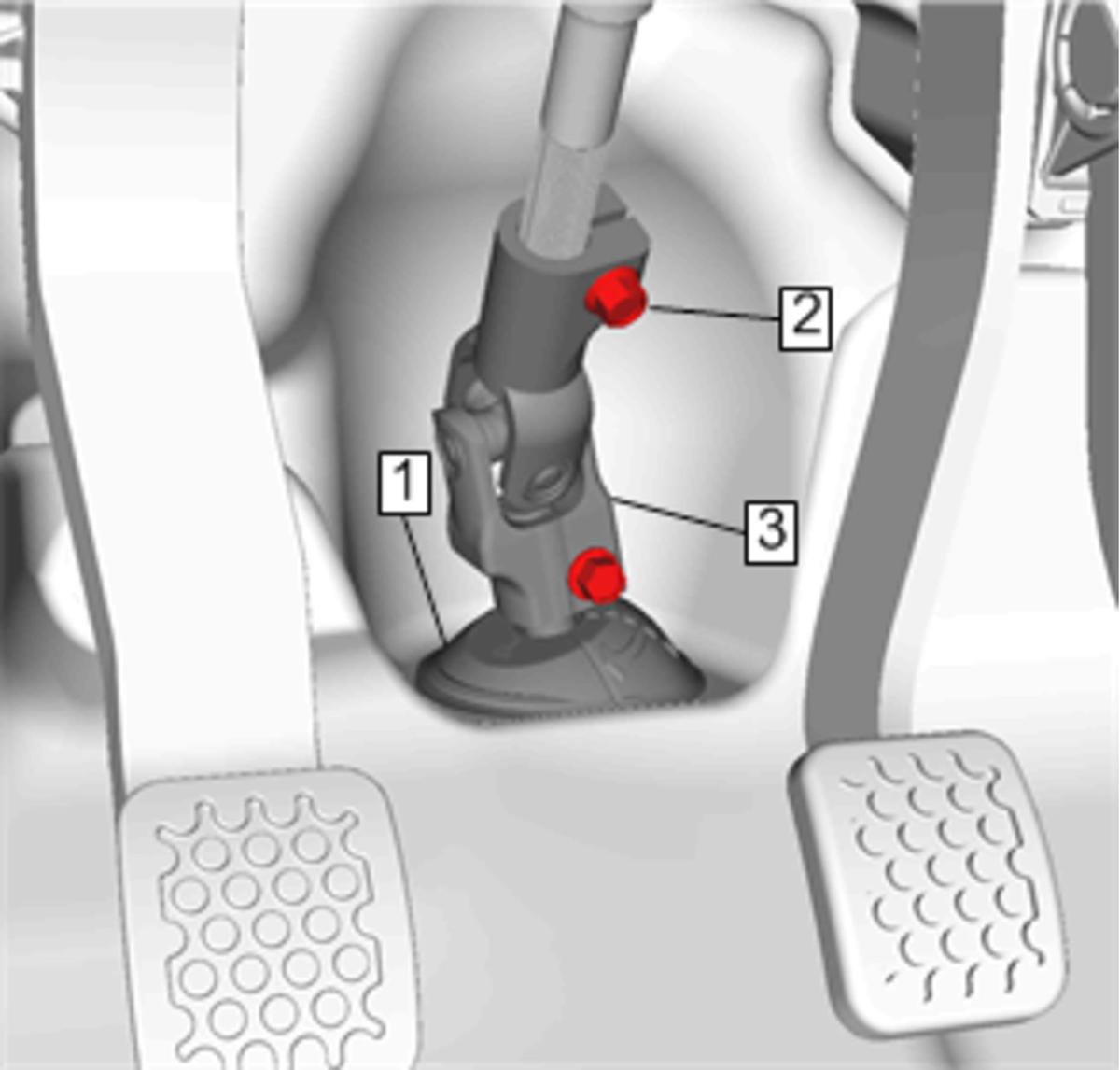

  47. GM4045046Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    The recess of the fine tooth in the universal joint have to be precisely aligned to the recess of the fine tooth on the steering gear pinion. The bore in the universal joint have to be aligned to the groove on the steering gear pinion.

    Install the steering gear dashboard inner seal by turning the seal (1).

  48. Connect the intermediate steering shaft (3) to the steering gear pinion shaft.
  49. Install the intermediate steering shaft lower bolt (2) and tighten to 34 N.m (25 lb ft).
  50. Install the battery tray. Refer to Battery Tray Replacement (without Engine Block Heater)Battery Tray Replacement (with Engine Block Heater) .
  51. Install the battery. Refer to Battery Replacement .
  52. Install the engine control module. Refer to Engine Control Module Replacement .
  53. Install the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
  54. Install the front wheels and tires. Refer to Tire and Wheel Removal and Installation .
  55. Recharge the refrigerant. Refer to Refrigerant Recovery and Recharging (R-134a)Refrigerant Recovery and Recharging (R-1234yf) .
  56. Refill the cooling system. Refer to Cooling System Draining and Filling .
  57. Check the oil level and fill NEW engine oil up if necessary.
  58. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
  59. Close the hood.
