Heater Inlet Hose Replacement

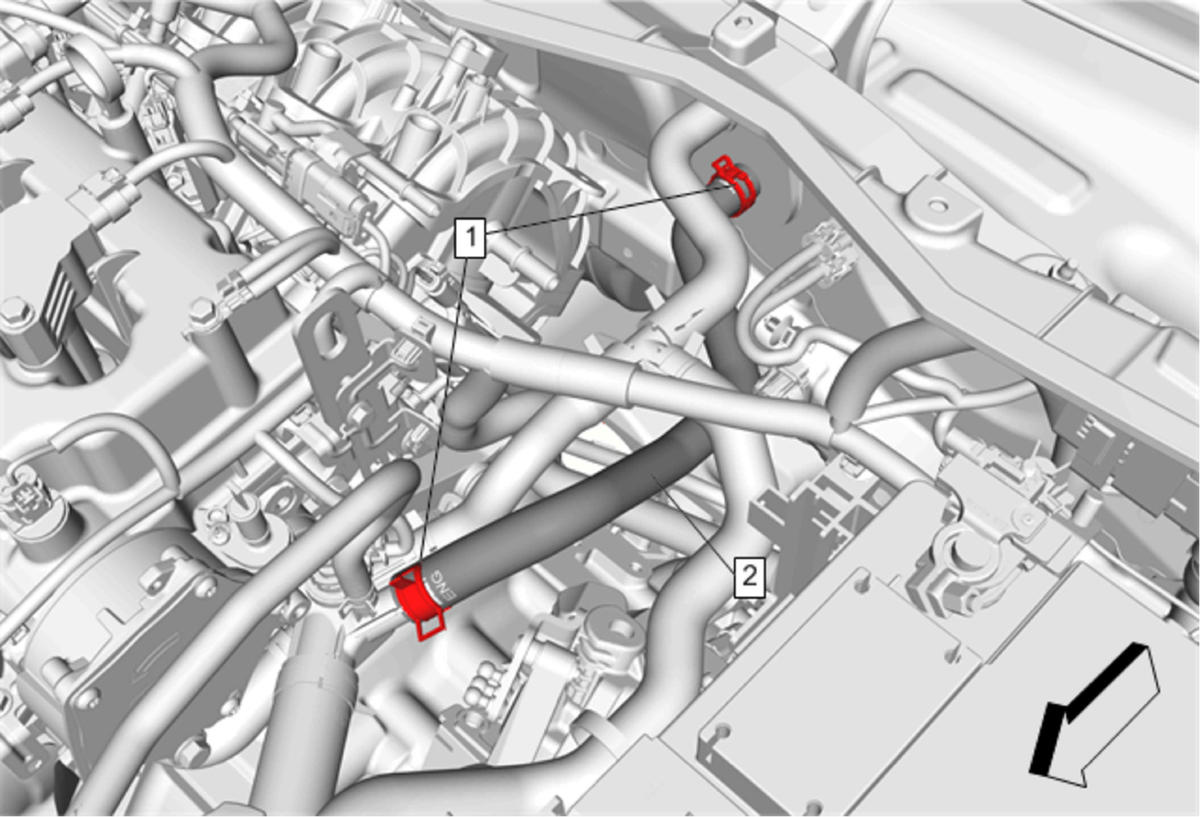

GM4051678Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
  2. Drain the cooling system. Refer to Cooling System Draining and Filling .
  3. Disengage the heater outlet hose clamp from the heater core to disengage the heater Inlet hose clamp easily.
1 Heater Inlet Hose Clamp (Qty: 2)
2 Heater Inlet Hose
