Radiator Air Lower Baffle Replacement

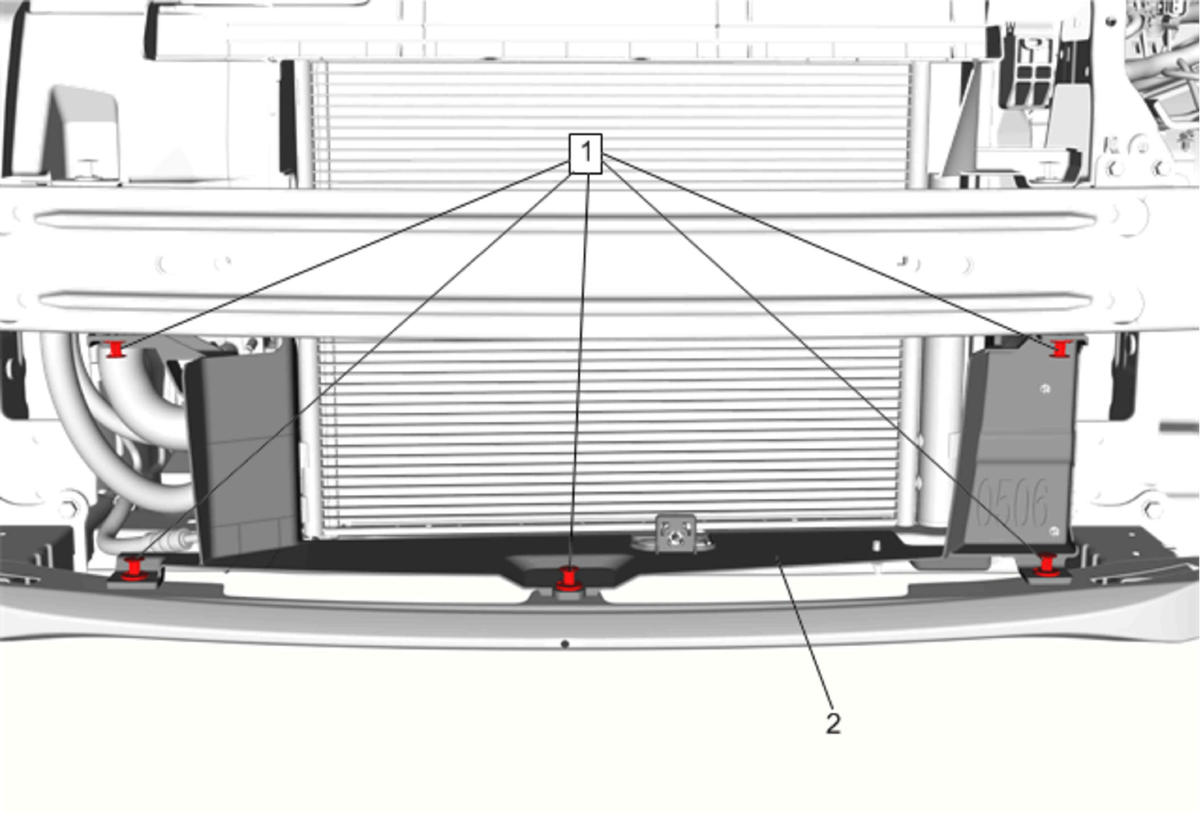

GM4051685Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the front bumper fascia assembly. Refer to Front Bumper Fascia Replacement .
  2. If equipped, remove the ambient air temperature gauge sensor. Refer to Ambient Air Temperature Sensor Replacement .
  3. Unclip the electrical wiring harness retaining clips attached to the lower baffle.
1 Radiator Air Lower Baffle Push Pin Retainers (Qty: 5)
2 Radiator Air Lower Baffle Assembly
