Radiator Inlet Hose Replacement

Courtesy of GENERAL MOTORS COMPANY

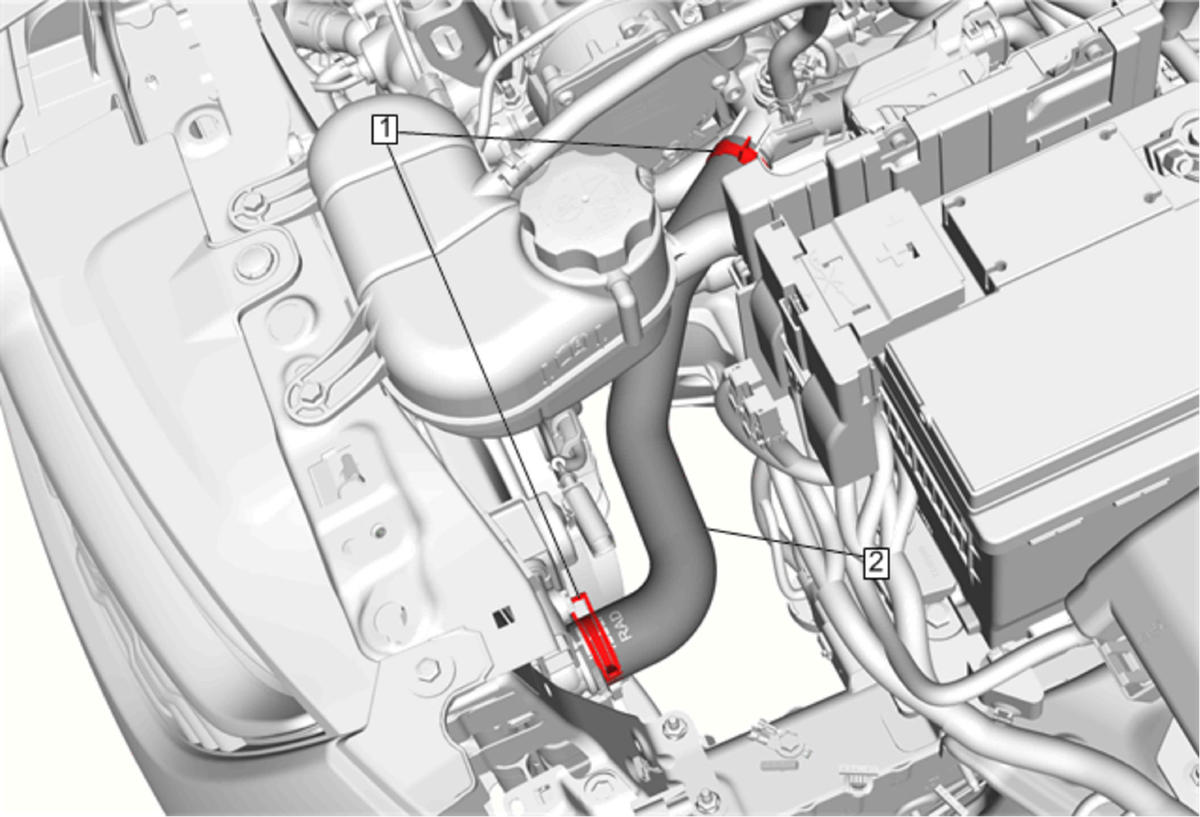

Callout	Component Name
Preliminary Procedures Open the hood. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection . Drain the cooling system. Refer to Cooling System Draining and Filling .
1	Radiator Inlet Hose Clamp (Qty: 2) Procedure Disconnect the engine cooler fan assembly electrical connector. Loosen the radiator inlet hose clamp.
2	Radiator Inlet Hose

Callout

Component Name

Preliminary Procedures

Open the hood.
Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
Drain the cooling system. Refer to Cooling System Draining and Filling .

Radiator Inlet Hose Clamp (Qty: 2)

Procedure

Radiator Inlet Hose
