Air Conditioning Compressor and Condenser Hose Replacement

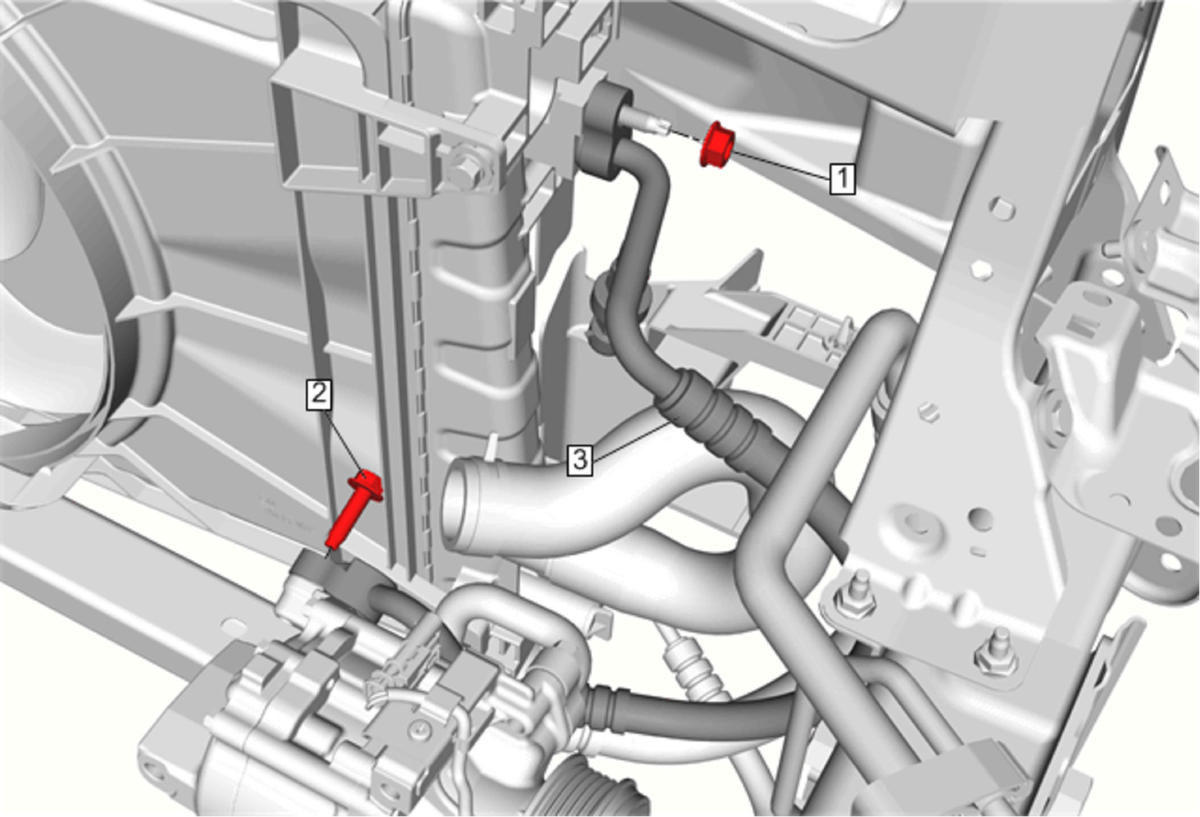

GM4051874Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Open the hood.
  2. Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
  3. Recover the refrigerant. Refer to Refrigerant Recovery and Recharging (R-134a) Refrigerant Recovery and Recharging (R-1234yf) .
  4. Disconnect the A/C refrigerant pressure sensor electrical connector.
1 Air Conditioning Compressor and Condenser Hose Nut to Air Conditioning Condenser
CAUTION:

Refer to Fastener Caution .


Tighten
22 N.m (16 lb ft)
2 Air Conditioning Compressor and Condenser Hose Bolt to Air Conditioning Compressor
Tighten
25 N.m (18 lb ft)
3 Air Conditioning Compressor and Condenser Hose
NOTE:

Remove and discard the old sealing washers and replace NEW sealing washers.
