Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Ensure that the vehicle is properly supported and squarely positioned. Lifting and Jacking the Vehicle .
    WARNING: Do not use a service jack in locations other than those specified to lift this vehicle. Lifting the vehicle with a jack in those other locations could cause the vehicle to slip off the jack and roll; this could cause injury or death.
    WARNING:

    Always perform the High Voltage Disabling procedure prior to servicing any High Voltage component or connection. Personal Protection Equipment (PPE) and proper procedures must be followed.

    The High Voltage Disabling procedure will perform the following tasks:

    • Identify how to disable high voltage.
    • Identify how to test for the presence of high voltage.
    • Identify condition under which high voltage is always present and personal protection equipment (PPE) and proper procedures must be followed.

    Failure to follow the procedures exactly as written may result in serious injury or death.

  2. Disable the high voltage system and disconnect the A4 Hybrid/EV Battery Pack high voltage harness connector at the T6 Power Inverter Module. Refer to High Voltage Disabling
  3. Set the parking brake.
  4. Remove the range selector lever cable from the transmission. Range Selector Lever Cable Replacement
    Fig 1: Range Selector Lever Cable And Range Selector Lever Cable Lever
    GM4117394Courtesy of GENERAL MOTORS COMPANY
  5. Drive Motor Generator Power Inverter Module Cooling System Draining and Filling - Drain
  6. Radiator Inlet Hose Replacement (LFV)Radiator Inlet Hose Replacement (LTG)Radiator Inlet Hose Replacement (LKN) - Remove
  7. Drive Motor Battery Radiator Surge Tank Replacement - Remove
  8. Drive Motor Generator Control Module Coolant Pump Hose Replacement (Pump to Aux Radiator) (1) - Remove
  9. Drive Motor Power Inverter Module Cooling Inlet Hose Replacement (Drive Motor Bat Rad Surge Tank To Pump)Drive Motor Power Inverter Module Cooling Inlet Hose Replacement (Trans Pipe to Aux Radiator) (1) - Remove
  10. Drain the transmission fluid. Refer to Transmission Fluid Drain and Fill
  11. Transmission Fluid Cooler Outlet Pipe Replacement (LFV With MHN)Transmission Fluid Cooler Outlet Pipe Replacement (LKN With MKE) (1) - Remove
  12. Transmission Fluid Cooler Inlet Pipe Replacement (LFV With MHN)Transmission Fluid Cooler Inlet Pipe Replacement (LKN With MKE) (1) - Remove
  13. Ground Cable Bolt (1) - Remove
    Fig 2: Ground Cable And Bolt
    GM4117475Courtesy of GENERAL MOTORS COMPANY
  14. Ground Cable (2) - Remove
  15. Ground Cable Bolt (1) - Remove [2x]
    Fig 3: Wiring Harness Bracket And Bolts
    GM4117476Courtesy of GENERAL MOTORS COMPANY
  16. Wiring Harness Bracket (2) - Remove
  17. Engine support fixture - Install
  18. Remove the transmission mount (5). Refer to Transmission Mount Replacement
    Fig 4: Transmission Mount Bolt
    GM4283617Courtesy of GENERAL MOTORS COMPANY
  19. Heater Inlet Hose Bracket Bolt (1) - Remove
    Fig 5: Heater Inlet Hose Bracket And Bolt
    GM4117477Courtesy of GENERAL MOTORS COMPANY
  20. Heater Inlet Hose Bracket (2) - Remove
  21. Drivetrain and Front Suspension Cradle Replacement - Remove
  22. Remove the left front wheel drive shaft. Refer to Front Wheel Drive Half Shaft Replacement - Left Side (MKE)Front Wheel Drive Half Shaft Replacement - Left Side (MNH)Front Wheel Drive Half Shaft Replacement - Left Side (M3E)
  23. Remove the right front wheel drive shaft. Refer to Front Wheel Drive Half Shaft Replacement - Right Side (LFV, LKN)Front Wheel Drive Half Shaft Replacement - Right Side (LTG)
  24. Remove the 3 transmission bolts (1).
    Fig 6: Transmission Bolts
    GM4224540Courtesy of GENERAL MOTORS COMPANY
  25. Heater Coolant Pump Replacement (LFV)Heater Coolant Pump Replacement (LKN) - Remove
  26. Transmission Bolt (1) - Remove
    Fig 7: Transmission Bolt
    GM4224537Courtesy of GENERAL MOTORS COMPANY
  27. Starter opening cover bolts (2) - Remove [2x]
    Fig 8: Starter Opening Cover And Bolts
    GM4117478Courtesy of GENERAL MOTORS COMPANY
  28. Remove the starter opening cover (1).
  29. Remove the four input drive flange bolts (1).
    Fig 9: Torque Converter Bolts
    GM4117480Courtesy of GENERAL MOTORS COMPANY
  30. Support the transmission with a suitable jack.
  31. Using a suitable straps or chains, secure the transmission to the transmission jack.
  32. Remove the transmission bolts. (1) [2x]

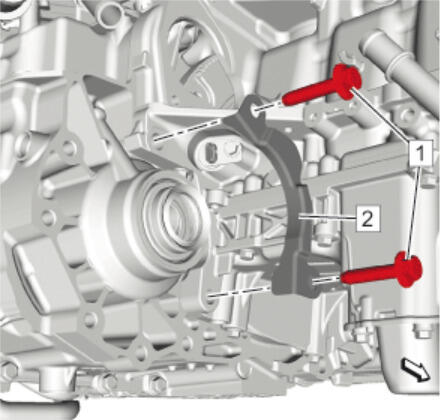

    Fig 10: Transmission Cover And Bolts
    GM4117481Courtesy of GENERAL MOTORS COMPANY
  33. Transmission Cover (2) - Remove
  34. Remove the ground cable retaining bolt (1), then position the cable out of the way.

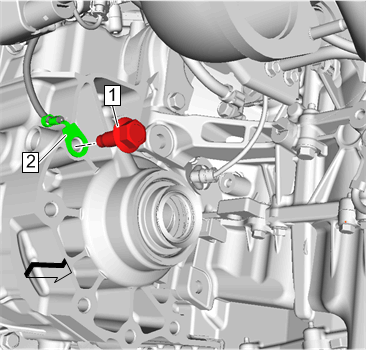

    Fig 11: Ground Cable Retaining Bolt
    GM4839868Courtesy of GENERAL MOTORS COMPANY
  35. Remove the transmission bolts. (1) [2x]
    Fig 12: Transmission Bolts
    GM4117482Courtesy of GENERAL MOTORS COMPANY
  36. Transmission Bolt (1) - Remove
    Fig 13: Transmission Bolt
    GM4117483Courtesy of GENERAL MOTORS COMPANY
    NOTE: This is the last transmission bolt.
  37. Carefully lower the transmission along with the jack, closely watching hoses and wiring harnesses to not disturb.
  38. Ensure the transmission locating pins (1) are properly seated in the engine block and not damaged.
    Fig 14: Transmission Locating Pins
    GM4224539Courtesy of GENERAL MOTORS COMPANY
  39. Flush and flow test the fluid cooler and lines. Refer to Transmission Fluid Cooler Flow Test and Flushing (6T40)Transmission Fluid Cooler Flow Test and Flushing (AF50-8)Transmission Fluid Cooler Flow Test and Flushing (9T50)
