Radiator Inlet Hose Replacement (LTG)

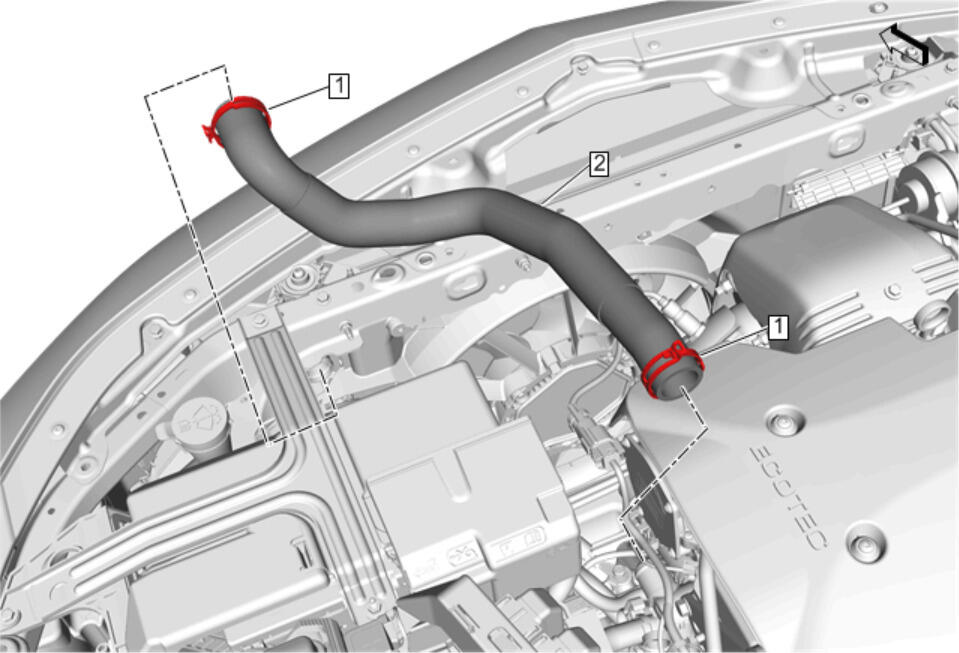

Fig 1: Radiator Inlet Hose (LTG)
GM4237536Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Drain the cooling system. Refer to Cooling System Draining and Filling (Static) Cooling System Draining and Filling (GE 47716)
1 Radiator Inlet Hose Clamp [2x]
Procedure
Reposition the radiator inlet hose clamps using GE-47622  Hose Clamp Pliers.
Special Tools
GE-47622  Hose Clamp Pliers Special Tools
2 Radiator Inlet Hose

Procedure

  1. Fill the coolant to the proper level. Refer to Cooling System Draining and Filling (Static) Cooling System Draining and Filling (GE 47716)
  2. Inspect for coolant leaks.
