Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Install the transmission to the engine. Refer to Transmission Replacement
  2. Position the powertrain and support table under the vehicle.
  3. Raise the powertrain into position under the vehicle.
    NOTE: Ensure that all hoses, harnesses and pipes clear when raising the powertrain.
  4. With the table positioned, if required, carefully raise the engine table and lower the body on the hoist until the engine/transaxle and frame are connected.
  5. Install the drivetrain and front suspension cradle to the vehicle. Refer to Drivetrain and Front Suspension Cradle Replacement
  6. Lower the vehicle. Refer to Lifting and Jacking the Vehicle
  7. Transmission Mount Bolt (4) Install NEW [3x] Transmission Mount Replacement
    Fig 1: Transmission Mount Bolt
    GM4283617Courtesy of GENERAL MOTORS COMPANY
  8. Engine Mount Bolt (1) - Install NEW [3x] Engine Mount Replacement

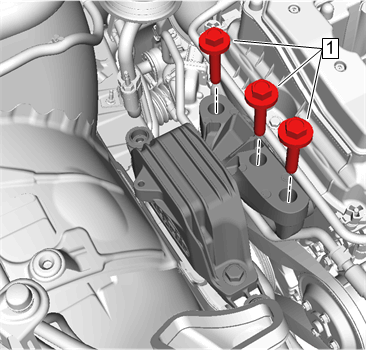

    Fig 2: Engine Mount Bolt
    GM4292418Courtesy of GENERAL MOTORS COMPANY
  9. Generator Control Module Coolant Pump Bracket Bolt (1) - Install Generator Control Module Coolant Pump Replacement
    Fig 3: Generator Control Module Coolant Pump Bracket Bolt
    GM4322552Courtesy of GENERAL MOTORS COMPANY
    NOTE: Reposition the generator control module coolant pump and bracket to the frame.
  10. Intermediate Steering Shaft @ Steering Gear - Connect Intermediate Steering Shaft Replacement

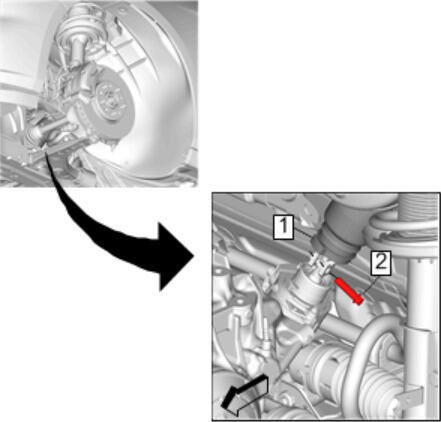

    Fig 4: Intermediate Steering Shaft Outer Boot
    GM4249184Courtesy of GENERAL MOTORS COMPANY
  11. Front Wheel Drive Shaft - Left Side (1) - Install Front Wheel Drive Half Shaft Replacement - Left Side (MKE)Front Wheel Drive Half Shaft Replacement - Left Side (MNH)Front Wheel Drive Half Shaft Replacement - Left Side (M3E)

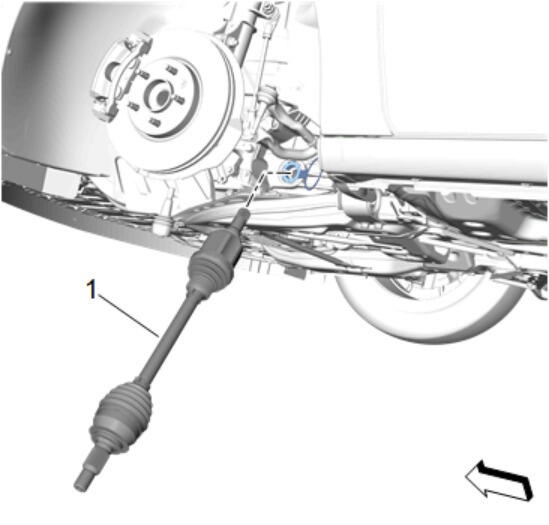

    Fig 5: Front Wheel Drive Half Shaft-Left Side
    GM4213361Courtesy of GENERAL MOTORS COMPANY
  12. Front Wheel Drive Shaft-Right Side (1) - Install Front Wheel Drive Half Shaft Replacement - Right Side (LFV, LKN)

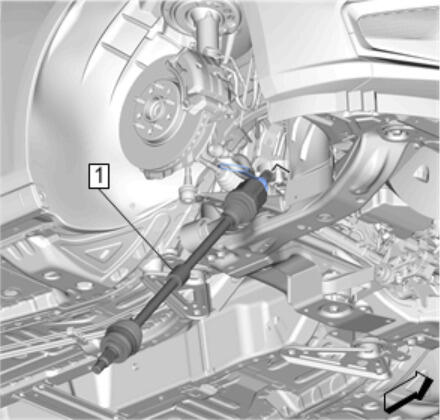

    Fig 6: Front Wheel Drive Half Shaft-Right Side
    GM4213807Courtesy of GENERAL MOTORS COMPANY
  13. Stabilizer Shaft Link (2) @ Stabilizer Shaft - Connect [2x]

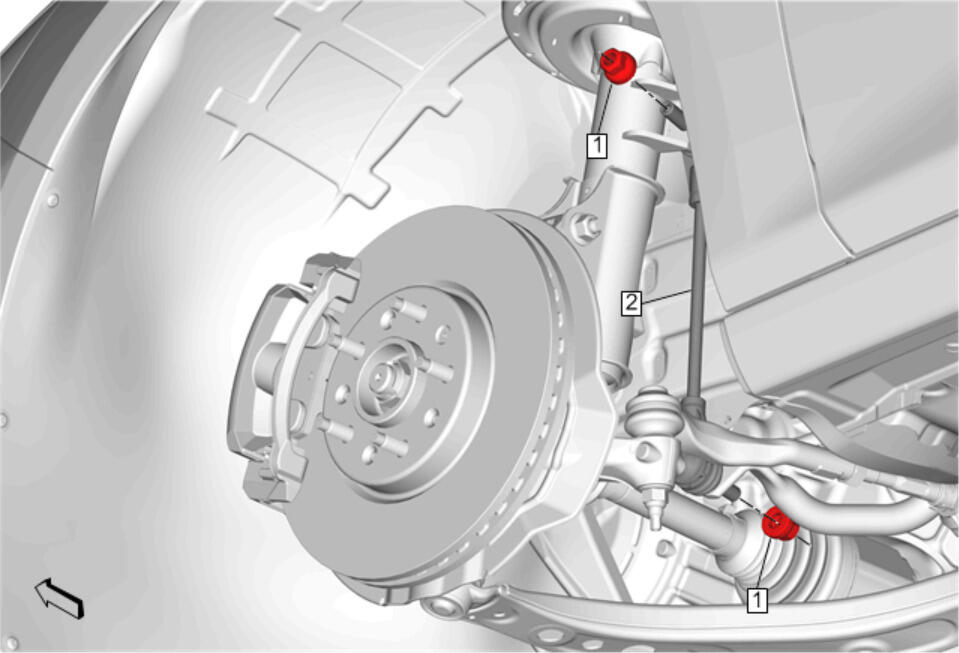

    Fig 7: Stabilizer Shaft Link
    GM4218109Courtesy of GENERAL MOTORS COMPANY
    NOTE: Install both sides. Left side shown, right side similar.
  14. Transmission Fluid Cooler Outlet Pipe (2) @ Transmission - Install Transmission Fluid Cooler Outlet Pipe Replacement (LKN With MKE)
    Fig 8: Transmission Fluid Cooler Pipe Bolt
    GM4296768Courtesy of GENERAL MOTORS COMPANY
    NOTE: Remove any previously installed covers prior to installing pipe.
  15. Transmission Fluid Cooler Inlet Pipe (2) @ Transmission - Install Transmission Fluid Cooler Inlet Pipe Replacement (LKN With MKE)

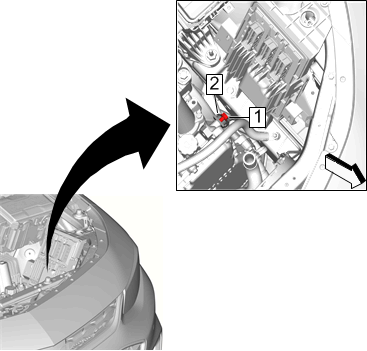

    Fig 9: Transmission Fluid Cooler Pipe Bolt
    GM4296784Courtesy of GENERAL MOTORS COMPANY
    NOTE: Remove any previously installed covers prior to installing pipe.
  16. Front Wheelhouse Liner - Left Side - Install Front Wheelhouse Liner Replacement
  17. Exhaust Front Pipe - Install Exhaust Front Pipe Replacement (LKN)
  18. Engine Wiring Harness Retainer (1) - Connect [2x]
  19. Position the engine wiring harness (5) as needed.

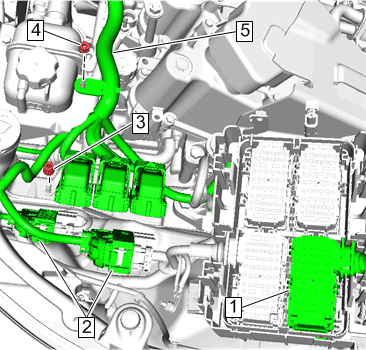

    Fig 10: Engine Wiring Harness Junction Block
    GM4323811Courtesy of GENERAL MOTORS COMPANY
  20. Wiring Harness Connector (1) @ Engine Wiring Harness Junction Block - Install
  21. Wiring Harness Connector (2) - Connect [2x]
  22. Ground Cable Nut (3) - Install and tighten 10 N.m (89 lb in)
  23. Engine Wiring Harness Clip Nut (4) - Install and tighten 10 N.m (89 lb in)
  24. Engine Wiring Harness Junction Block - Install Engine Wiring Harness Junction Block Replacement (With HP4)Engine Wiring Harness Junction Block Replacement (Without HP4)
  25. Engine Control Module Bracket - Install Engine Control Module Bracket Replacement
  26. Engine Wiring Harness (5) - Reposition
    NOTE: Reposition the wiring harness to the top of the engine.
  27. Drive Motor Power Inverter Module Coolant Pipe - Install Drive Motor Power Inverter Module Coolant Pipe Replacement (LKN)
  28. Lower the vehicle. Refer to Lifting and Jacking the Vehicle
  29. Range Selector Lever Cable (1) @ Transmission - Connect Range Selector Lever Cable Replacement
    Fig 11: Transmission Range Selector Lever Cable
    GM4278830Courtesy of GENERAL MOTORS COMPANY
  30. Radiator Inlet Hose (2) @ Water Outlet - Connect Radiator Inlet Hose Replacement (LKN)

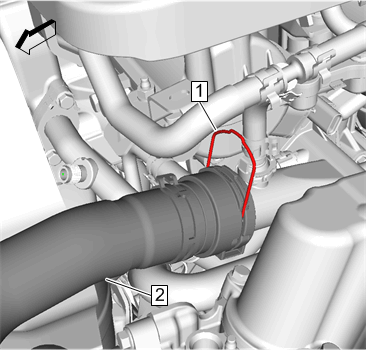

    Fig 12: Radiator Inlet Hose Retainer
    GM4322240Courtesy of GENERAL MOTORS COMPANY
  31. Radiator Outlet Hose (2) @ Engine Coolant Thermostat Housing - Connect Radiator Outlet Hose Replacement (LKN)

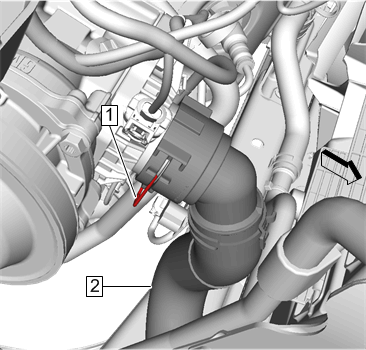

    Fig 13: Radiator Outlet Hose Retainer
    GM4322547Courtesy of GENERAL MOTORS COMPANY
  32. Air Conditioning Compressor and Condenser Hose (1) @ Air Conditioning Condenser - Connect Air Conditioning Compressor and Condenser Hose Replacement (LKN)
    Fig 14: Air Conditioning Condenser Hose Nut
    GM4322151Courtesy of GENERAL MOTORS COMPANY
  33. Air Conditioning Evaporator Connector Hose/Tube and Compressor Hose (2) @ Air Conditioning Condenser and Air Conditioning Evaporator Tube - Connect Air Conditioning Evaporator Connector Hose/Tube and Compressor Hose Replacement (LKN)
    Fig 15: Air Conditioning Evaporator Connector Hose/Tube and Compressor Hose
    GM4318447Courtesy of GENERAL MOTORS COMPANY
  34. Fuel Feed Front Pipe @ Fuel Injection Pump - Connect Fuel Feed Front Pipe Replacement
  35. Evaporative Emission Canister Vent Front Pipe @ Evaporative Emission Canister Purge Solenoid Valve - Connect Evaporative Emission Front Pipe Replacement
  36. Heater Inlet Hose (2) @ Water Outlet - Connect Heater Inlet Hose Replacement (LKN)

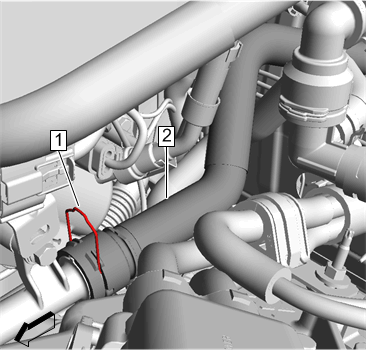

    Fig 16: Heater Inlet Hose Retainer
    GM4320748Courtesy of GENERAL MOTORS COMPANY
  37. Heater Coolant Pump Hose - Outlet (2) @ Heater Coolant Pump - Connect Heater Coolant Pump Hose Replacement (Outlet)Heater Coolant Pump Hose Replacement (Pump Inlet LKN)Heater Coolant Pump Hose Replacement (Pump Outlet LKN)

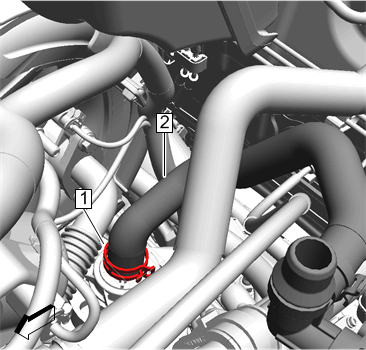

    Fig 17: Heater Coolant Pump Hose Clamp
    GM4321392Courtesy of GENERAL MOTORS COMPANY
  38. Engine Coolant Air Bleed Hose (2) @ Radiator Surge Tank - Connect Engine Coolant Air Bleed Hose Replacement (LKN Radiator Surge Tank to Water Outlet to Exhaust Gas Recirculation Cooler Outlet Pipe)

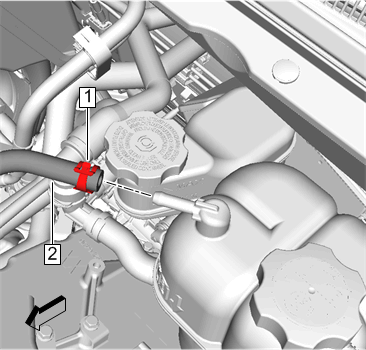

    Fig 18: Engine Coolant Air Bleed Hose Clamp
    GM4297341Courtesy of GENERAL MOTORS COMPANY
  39. Air Cleaner Assembly - Install Air Cleaner Assembly Replacement
  40. Air Cleaner Outlet Duct - Install Air Cleaner Outlet Duct Replacement
  41. Recharge the refrigerant. Refer to Refrigerant Recovery and Recharging (LKN)
  42. Fill the cooling system. Refer to Cooling System Draining and Filling (Static)Cooling System Draining and Filling (GE 47716)
  43. Fill the drive motor generator power inverter module cooling system. Refer to Drive Motor Generator Power Inverter Module Cooling System Draining and Filling
  44. Enable the high voltage system. Refer to High Voltage Enabling
  45. Intake Manifold Cover (1) - Remove Intake Manifold Cover Replacement
    Fig 19: Intake Manifold Cover
    GM4291640Courtesy of GENERAL MOTORS COMPANY
  46. Check oil level, fill or change filter and oil as needed. Refer to Engine Oil and Oil Filter Replacement
  47. Check the transmission fluid for proper level. Refer to Transmission Fluid Drain and Fill
