Intake Manifold Cover Replacement

WARNING: This page is about a different variant/trim than selected.

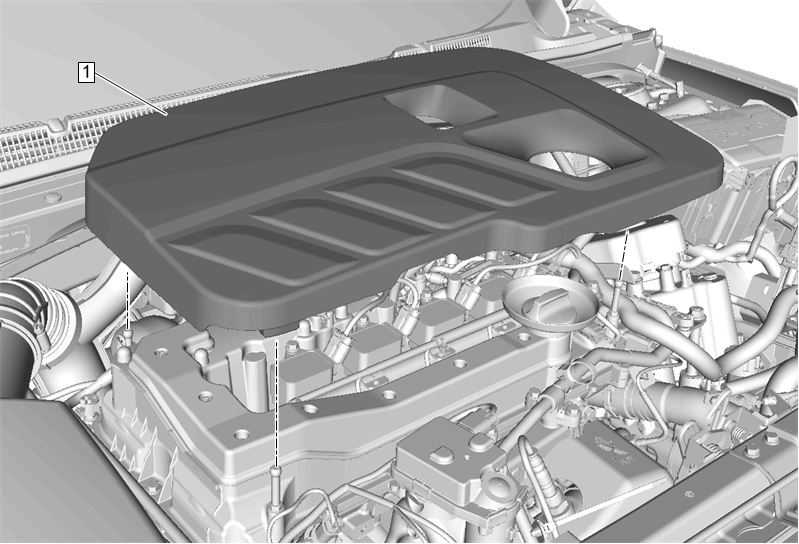

Fig 1: Intake Manifold Cover
GM4291640Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Intake Manifold Cover
Procedure
Release the engine sight shield retainers by pulling the engine sight shield upwards.
