Fuel Feed Front Pipe Replacement

WARNING: This page is about a different variant/trim than selected.

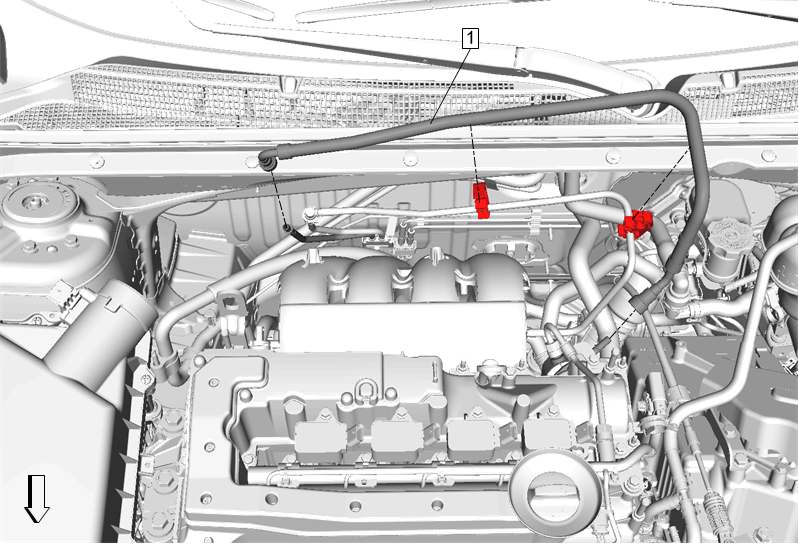

Fig 1: Fuel Feed Front Pipe

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Gasoline/Gasoline Vapors Warning . WARNING: Refer to Safety Glasses Warning . Preliminary Procedures Relieve the fuel system pressure. Refer to Fuel Pressure Relief Air Cleaner Outlet Duct Replacement Intake Manifold Cover Replacement
1	Fuel Feed Front Pipe Procedure Disconnect the quick connect fittings and remove from retainers. Refer to Metal Collar Quick Connect Fitting Service Cycle ignition to pressurize fuel system and check for fuel leaks.

Callout

Component Name

WARNING: Refer to Gasoline/Gasoline Vapors Warning .

WARNING: Refer to Safety Glasses Warning .

Preliminary Procedures

Fuel Feed Front Pipe

Procedure

Disconnect the quick connect fittings and remove from retainers. Refer to Metal Collar Quick Connect Fitting Service
Cycle ignition to pressurize fuel system and check for fuel leaks.
