Evaporative Emission Front Pipe Replacement

WARNING: This page is about a different variant/trim than selected.

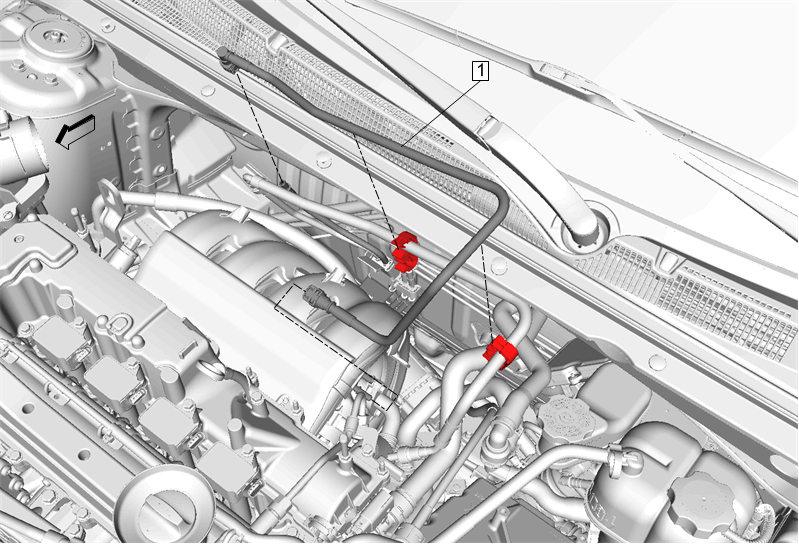

Fig 1: Evaporative Emission Front Pipe

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Gasoline/Gasoline Vapors Warning . WARNING: Refer to Safety Glasses Warning . Preliminary Procedures Air Cleaner Outlet Duct Replacement Intake Manifold Cover Replacement
1	Evaporative Emission Front Pipe Procedure Disconnect the quick connect fittings and remove from retainers. Refer to Plastic Collar Quick Connect Fitting Service

Callout

Component Name

WARNING: Refer to Gasoline/Gasoline Vapors Warning .

WARNING: Refer to Safety Glasses Warning .

Preliminary Procedures

Evaporative Emission Front Pipe
Procedure
Disconnect the quick connect fittings and remove from retainers. Refer to Plastic Collar Quick Connect Fitting Service
