Rear Seat Back Cushion Opening Panel Replacement

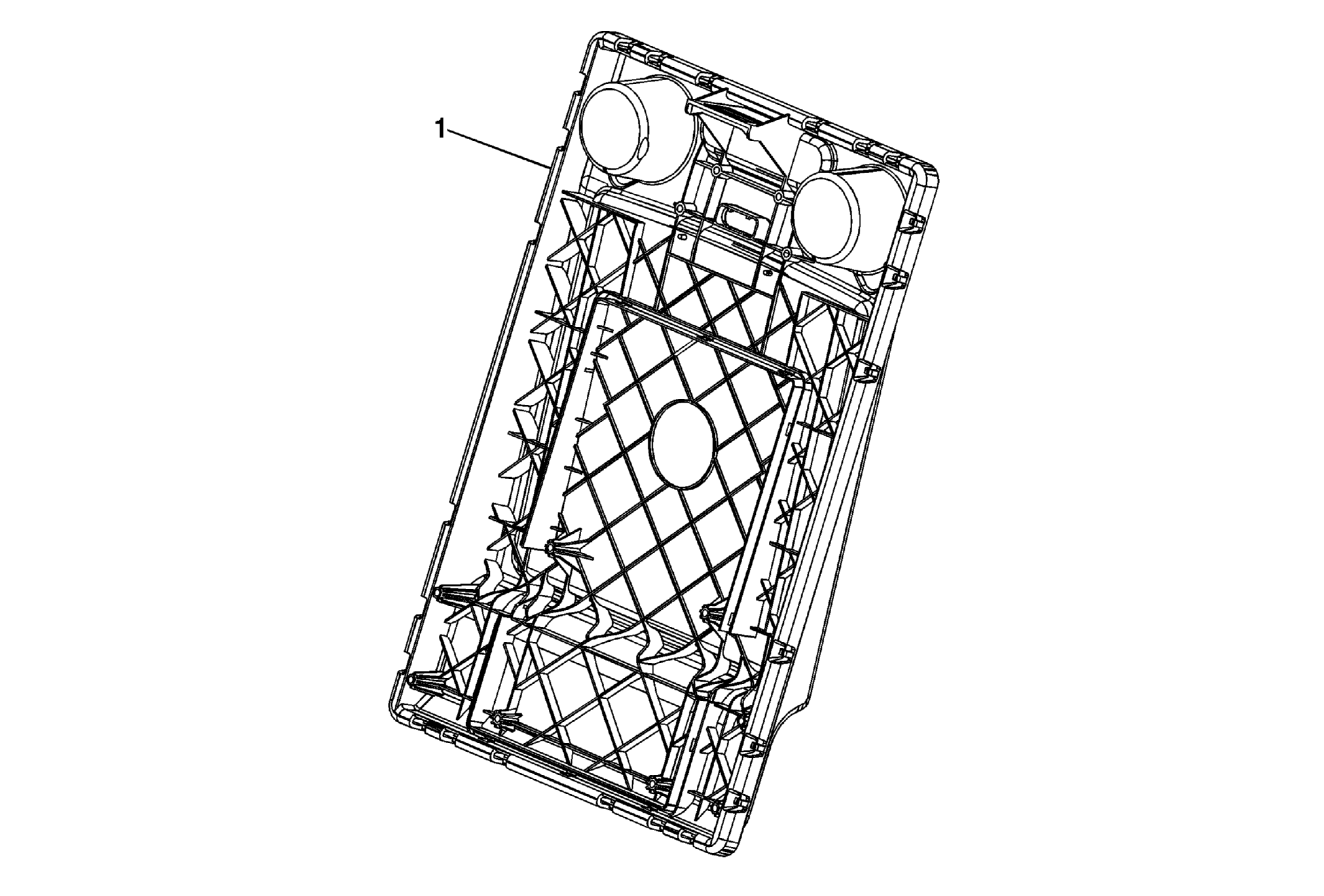

Fig 1: Rear Seat Back Cushion Opening Panel
GM3232369Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the rear seat back cushion. Refer to Rear Seat Back Cushion Removal and Installation (Split Folding Side Cushion Sedan) Rear Seat Back Cushion Removal and Installation (Split Folding Center Cushion Sedan) Rear Seat Back Cushion Removal and Installation (Fixed Back) .
  2. Remove the rear seat armrest, if equipped. Refer to Rear Seat Armrest Replacement .
  3. Remove the rear seat back cushion cover and pad. Refer to Rear Seat Back Cushion Cover and Pad Replacement (Rear Folding) Rear Seat Back Cushion Cover and Pad Replacement (Split Folding Center Cushion) Rear Seat Back Cushion Cover and Pad Replacement (Split Folding Side Cushion) .
  4. Remove the rear seat back cushion hinge. Refer to Rear Seat Back Cushion Hinge Replacement .
  5. Remove the rear seat back center cushion latch. Refer to Rear Seat Back Center Cushion Latch Replacement .
1 Rear Seat Back Cushion Opening Panel
Procedure
If replacing the seat back cushion panel, transfer components as necessary.
