Rear Seat Armrest Replacement

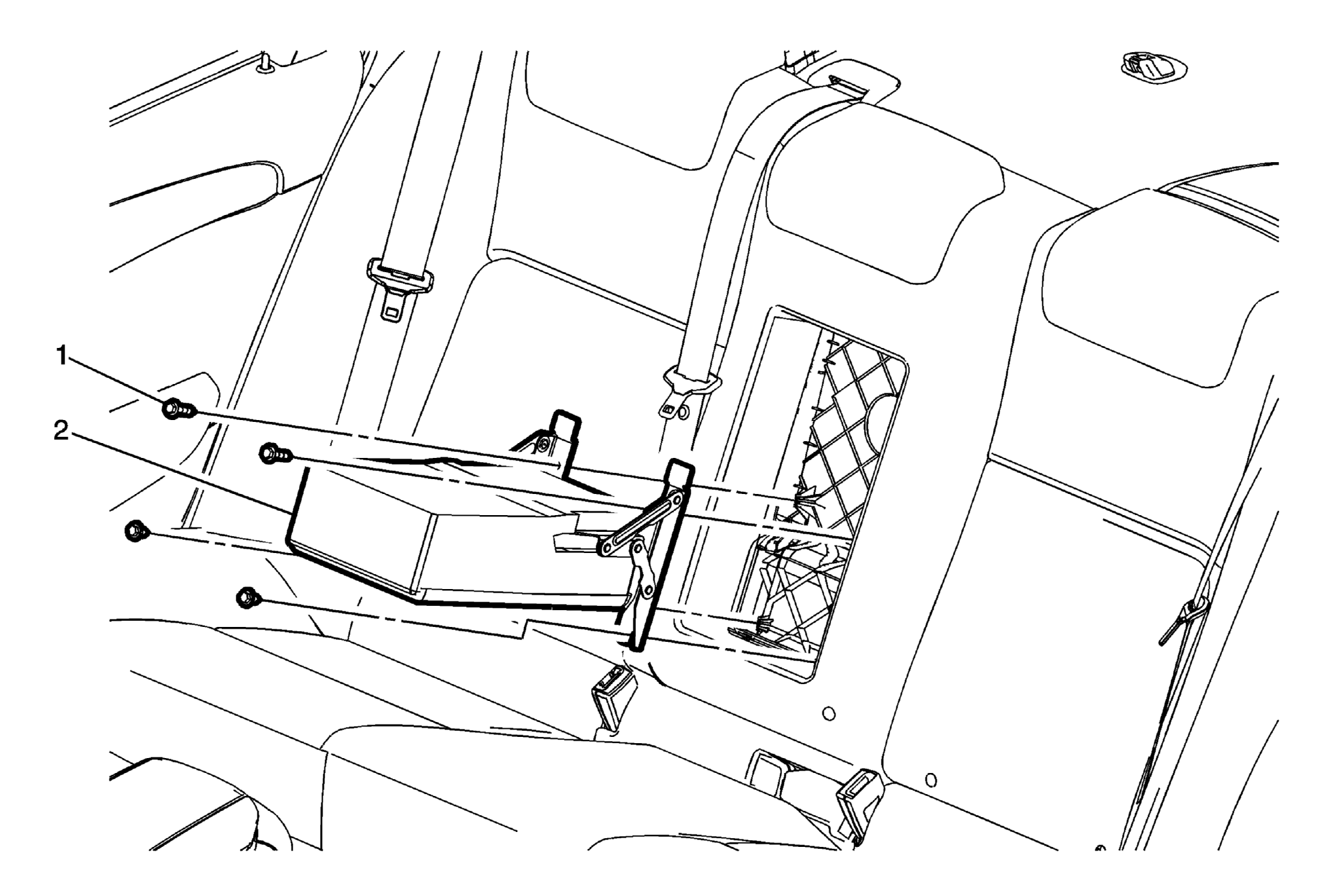

Fig 1: Rear Seat Armrest
GM3226175Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the rear seat back cushion. Refer to Rear Seat Back Cushion Removal and Installation (Split Folding Side Cushion Sedan) Rear Seat Back Cushion Removal and Installation (Split Folding Center Cushion Sedan) Rear Seat Back Cushion Removal and Installation (Fixed Back) .
1 Rear Seat Armrest Fastener (Qty: 4)
CAUTION:

Refer to Fastener Caution .


Procedure
Lower the armrest and disengage the trim flat to gain access to the bolts.
2 Rear Seat Armrest
Procedure
Remove the armrest assembly by sliding it up and out.
