Rear Seat Back Cushion Removal and Installation (Split Folding Side Cushion Sedan)

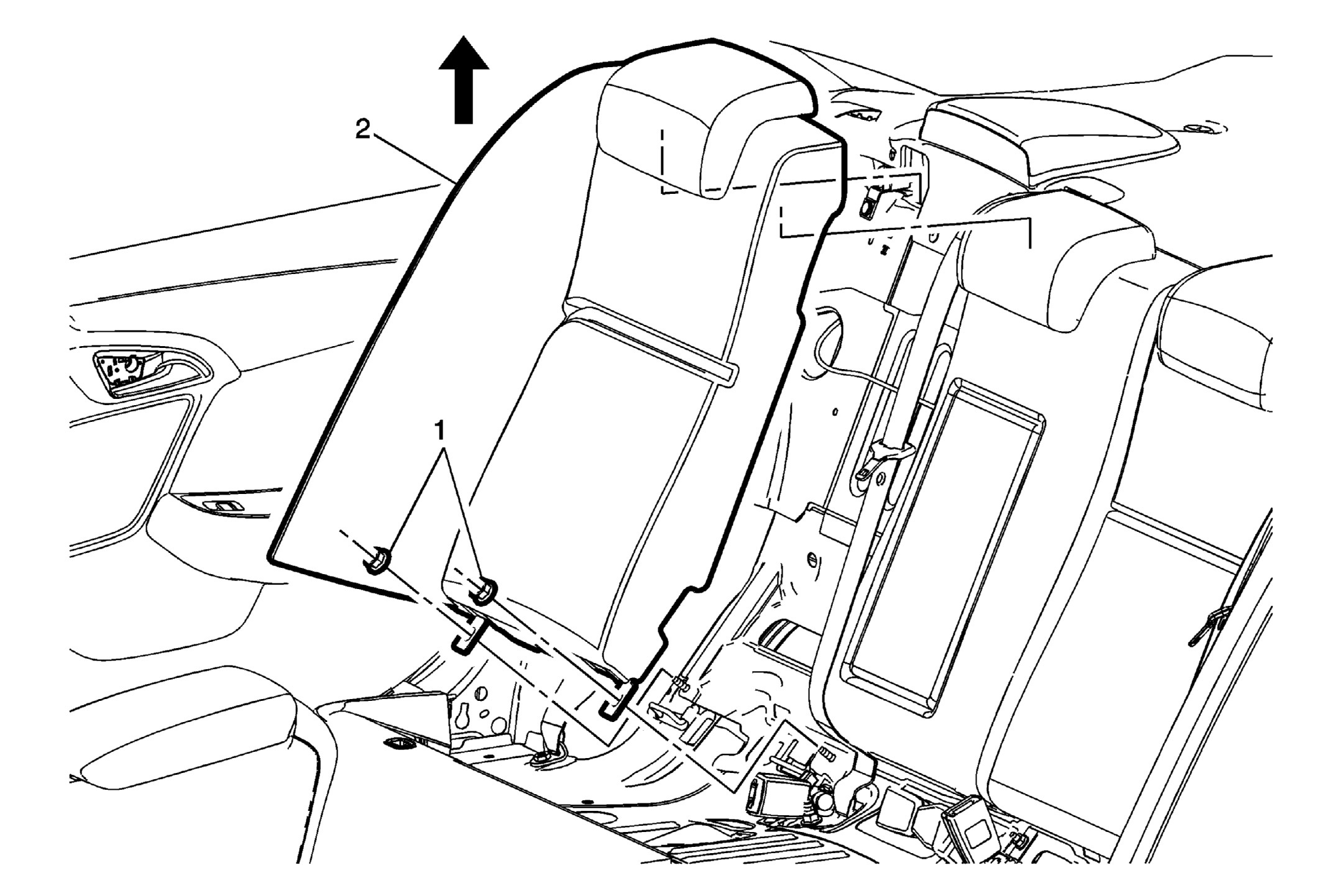

Fig 1: Rear Seat Back Cushion (Split Folding Side Cushion Sedan)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear seat cushion. Refer to Rear Seat Cushion Removal and Installation .
1	Rear Seat Back Cushion Nut (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 30 N.m (22 lb ft)
2	Rear Seat Back Cushion Assembly Procedure Move the rear outboard shoulder belts from the shoulder belt bezel and position it out of the way, if equipped. Pull the seat back cushion upward to remove from the vehicle. Note the routing prior to removal in order to ensure a proper reinstallation.

Callout

Component Name

Preliminary Procedure
Remove the rear seat cushion. Refer to Rear Seat Cushion Removal and Installation .

Rear Seat Back Cushion Nut (Qty: 2)

CAUTION:

Tighten
30 N.m (22 lb ft)

Rear Seat Back Cushion Assembly

Procedure

Move the rear outboard shoulder belts from the shoulder belt bezel and position it out of the way, if equipped.
Pull the seat back cushion upward to remove from the vehicle.
Note the routing prior to removal in order to ensure a proper reinstallation.
