Rear Seat Back Cushion Removal and Installation (Split Folding Center Cushion Sedan)

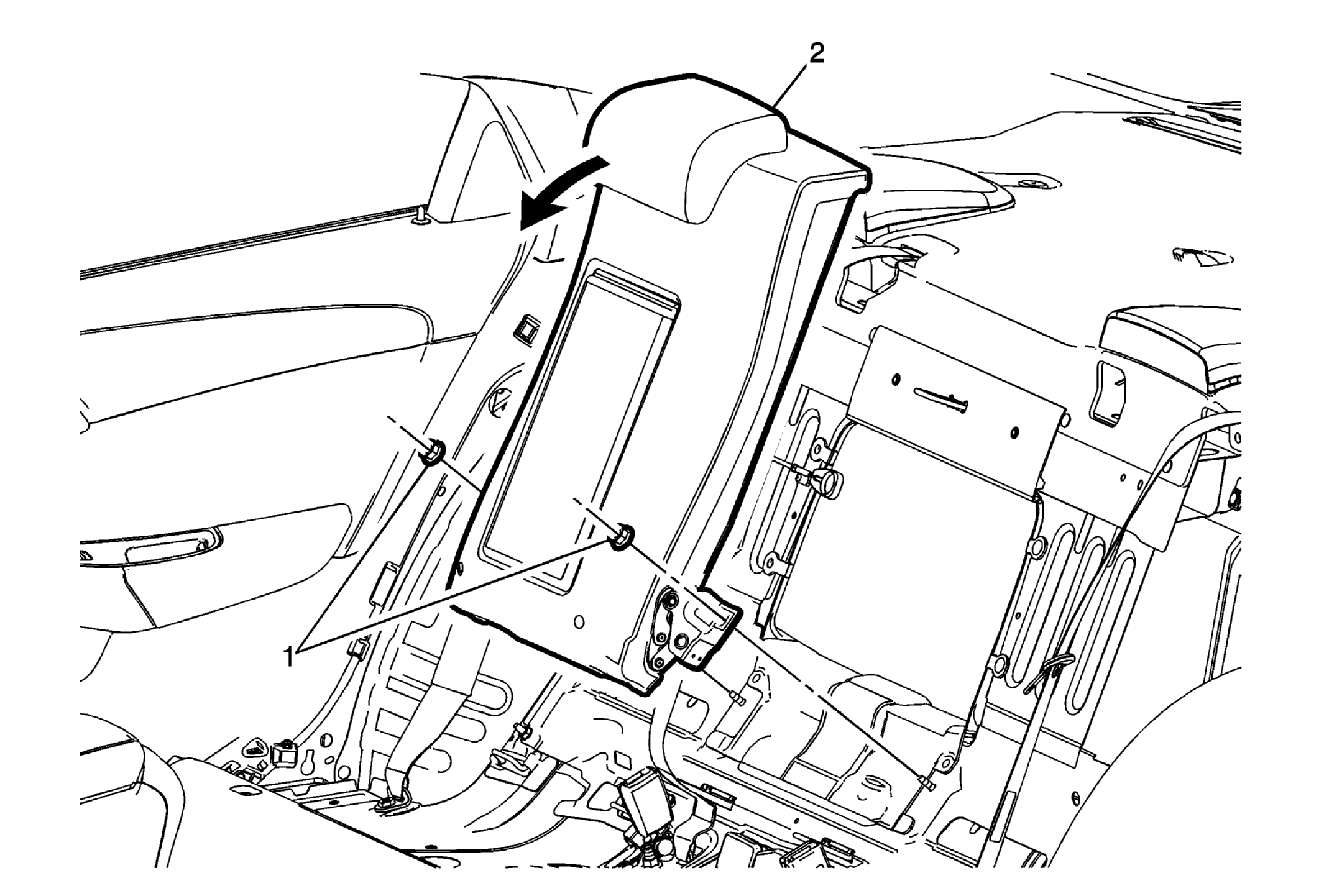

Fig 1: Rear Seat Back Cushion (Split Folding Center Cushion Sedan)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear seat cushion. Refer to Rear Seat Cushion Removal and Installation .
1	Rear Seat Back Cushion Nut (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 30 N.m (22 lb ft)
2	Rear Seat Back Cushion Assembly Procedure Move the rear seat center shoulder belts from the shoulder belt bezel and position it out of the way, if equipped. Push the rear seat back latch release button located on the top of the seat back cushion, and fold the rear seat back cushion forward. Pull the seat back cushion upward and forward to remove from the vehicle. Note the routing prior to removal in order to ensure a proper reinstallation.

Callout

Component Name

Preliminary Procedure
Remove the rear seat cushion. Refer to Rear Seat Cushion Removal and Installation .

Rear Seat Back Cushion Nut (Qty: 2)

CAUTION:

Tighten
30 N.m (22 lb ft)

Rear Seat Back Cushion Assembly

Procedure

Move the rear seat center shoulder belts from the shoulder belt bezel and position it out of the way, if equipped.
Push the rear seat back latch release button located on the top of the seat back cushion, and fold the rear seat back cushion forward.
Pull the seat back cushion upward and forward to remove from the vehicle.
Note the routing prior to removal in order to ensure a proper reinstallation.
