Rear Seat Back Center Cushion Latch Replacement

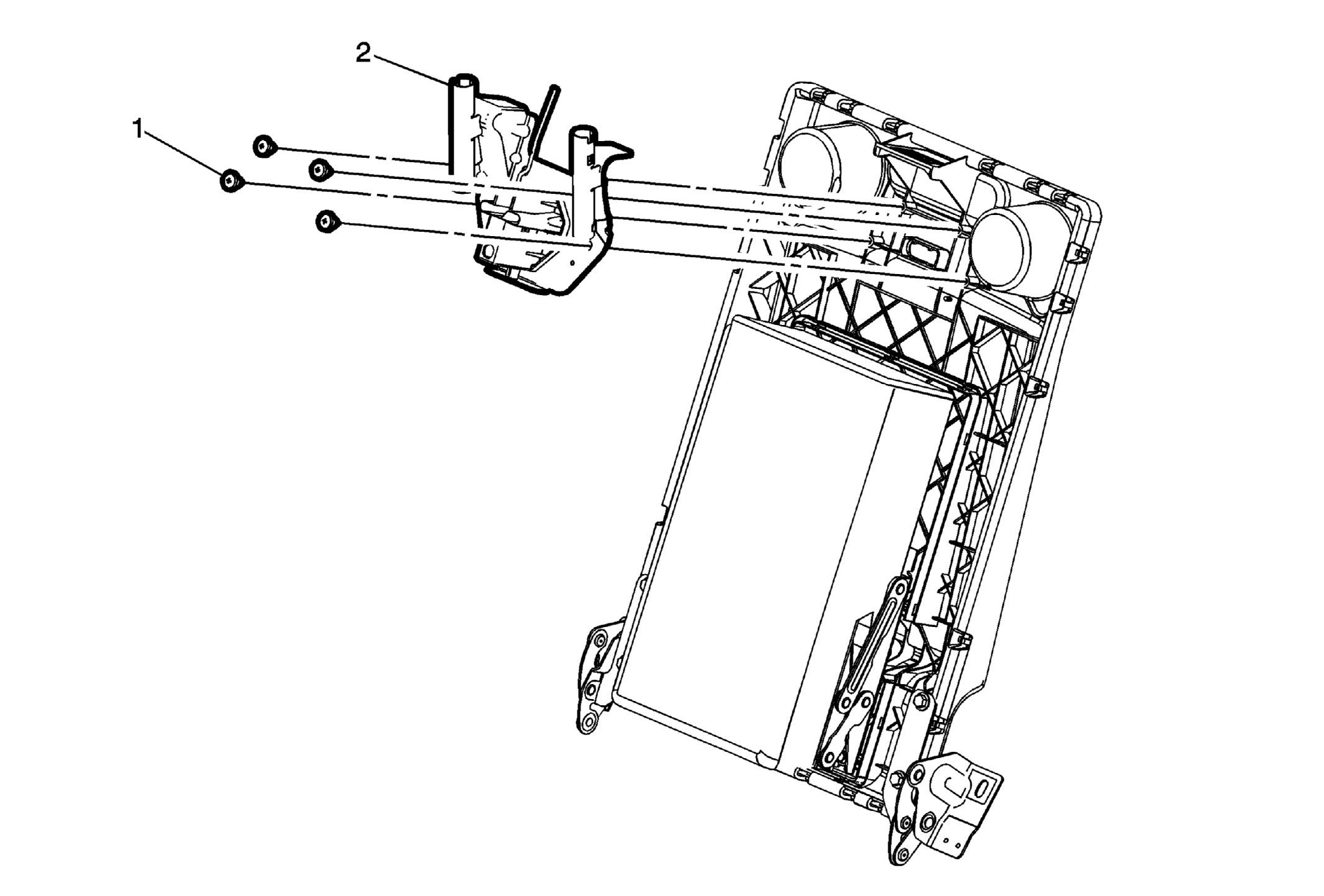

Fig 1: Rear Seat Back Center Cushion Latch
GM3226164Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the rear seat back cushion cover and pad. Refer to Rear Seat Back Cushion Cover and Pad Replacement (Rear Folding) Rear Seat Back Cushion Cover and Pad Replacement (Split Folding Center Cushion) Rear Seat Back Cushion Cover and Pad Replacement (Split Folding Side Cushion)
1 Rear Seat Back Center Cushion Latch Fastener (Qty: 2)
CAUTION:

Refer to Fastener Caution .
2 Rear Seat Back Center Cushion Latch
