Shoulder Belt Replacement - Rear

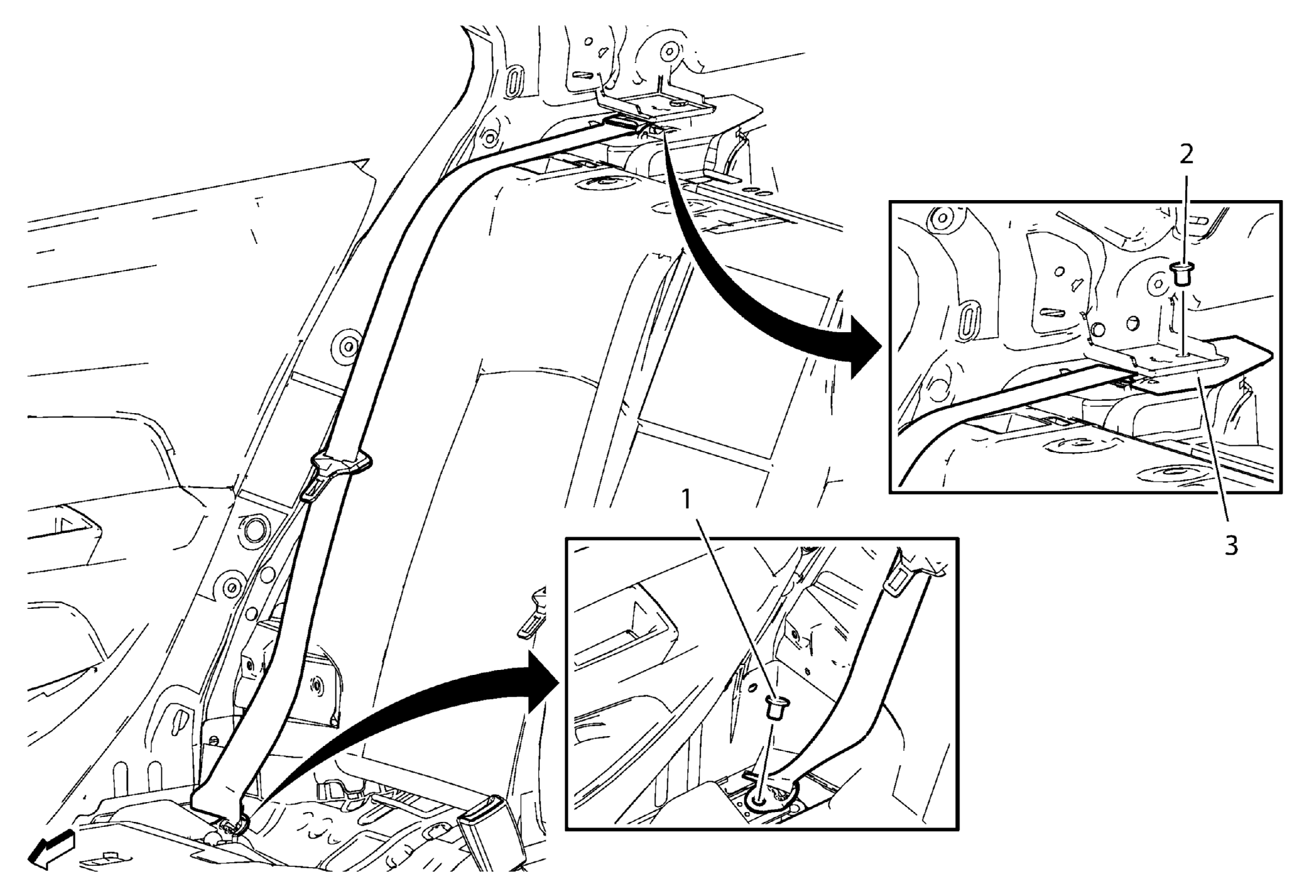

Fig 1: Shoulder Belt - Rear
GM2027641Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Disable the SIR system. Refer to SIR Disabling and Enabling .
  2. Remove the rear seat back cushion bolster. Refer to Rear Seat Back Bolster Replacement .
  3. Remove the rear seat back. Refer to Rear Seat Removal and Installation (40 Percent Seat) and Rear Seat Removal and Installation (60 Percent Seat) .
  4. Remove the quarter window garnish molding. Refer to Quarter Window Garnish Molding Replacement .
  5. Remove the rear side door sill trim plate. Refer to Rear Side Door Sill Trim Plate Replacement .
  6. Remove the body side trim panel. Refer to Body Side Trim Panel Replacement .
  7. Remove the rear window panel trim. Refer to Rear Window Panel Trim Replacement .
1 Rear Seat Shoulder Belt Anchor Plate Bolt
CAUTION: Refer to Fastener Caution .

Tighten
45 N.m (33 lb ft)
2 Rear Seat Shoulder Belt Retractor Bolt
Tighten
45 N.m (33 lb ft)
3 Rear Seat Shoulder Belt
