Rear Seat Removal and Installation (40 Percent Seat)

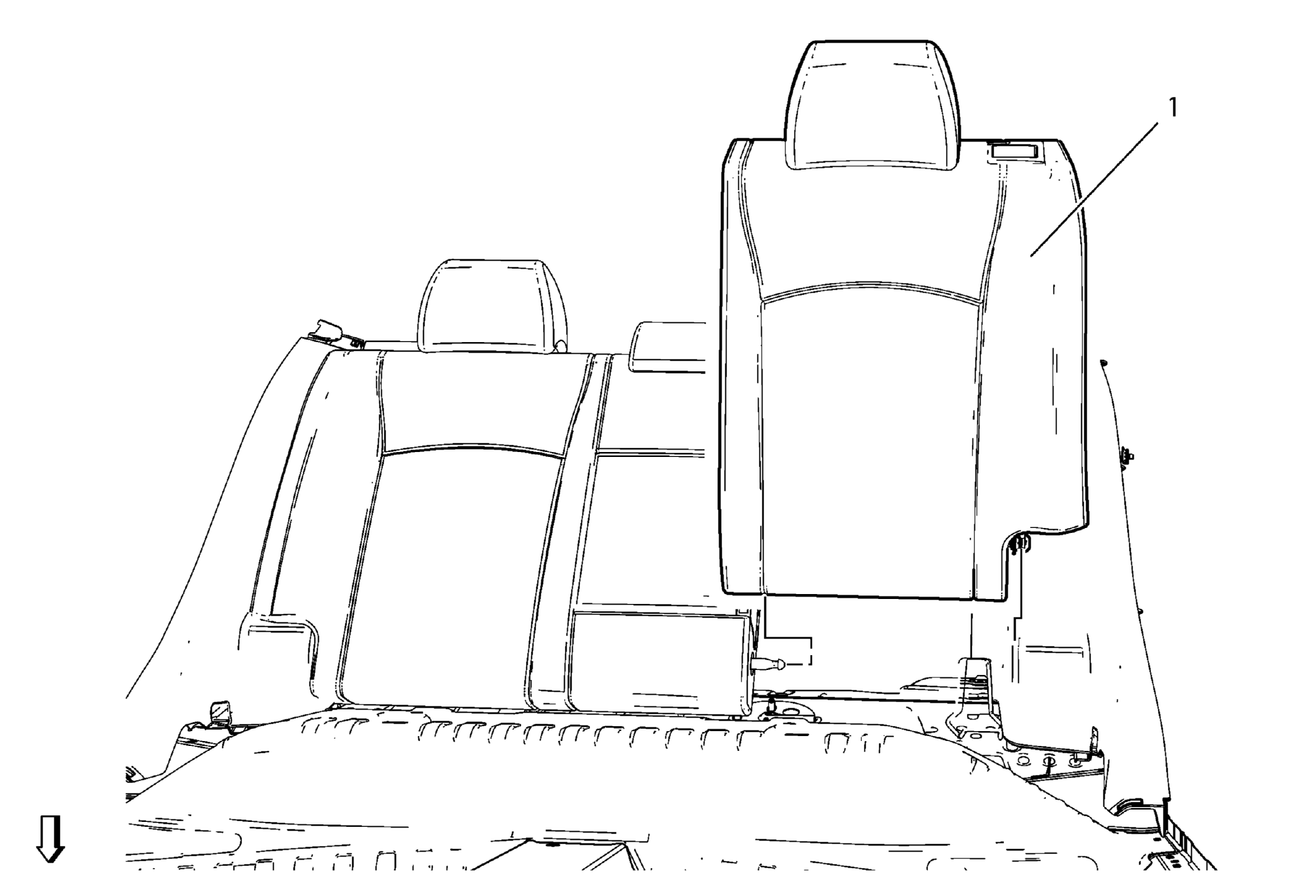

Fig 1: Rear Seat (40 Percent Seat)
GM2027337Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedures
Remove the rear seat cushion. Refer to Rear Seat Cushion Removal and Installation .
1 Rear Seat Back - Left Side

Procedure

  1. Fold down rear seat backrest.
  2. Remove rear seat backrest from both side guide.
