Body Side Trim Panel Replacement

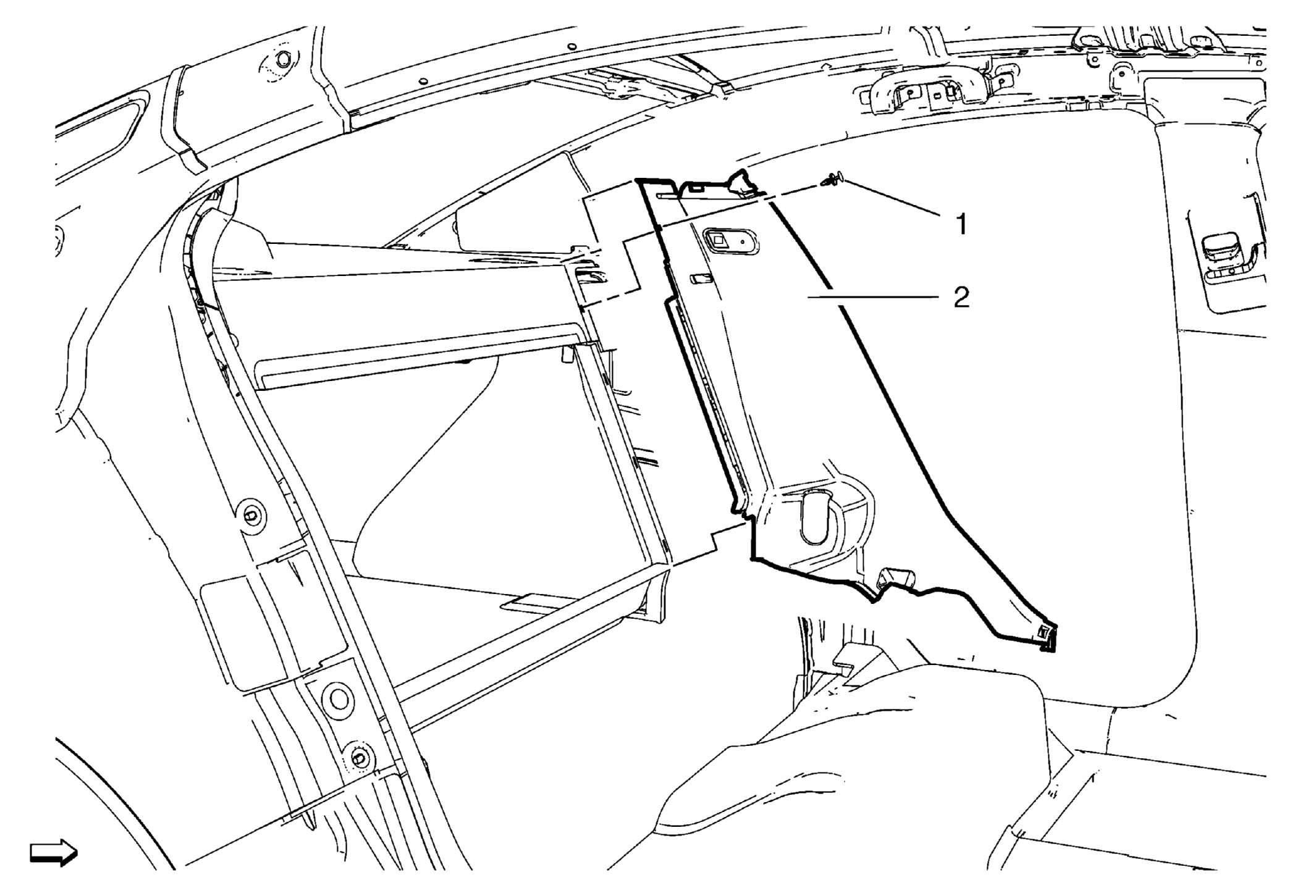

Fig 1: Body Side Trim Panel

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove rear side door sill trim plate. Refer to Rear Side Door Sill Trim Plate Replacement . Remove quarter window garnish molding. Refer to Quarter Window Garnish Molding Replacement . Remove rear seat. Refer to Rear Seat Removal and Installation (40 Percent Seat) and Rear Seat Removal and Installation (60 Percent Seat) .
1	Body Side Trim Panel Clip
2	Body Side Trim Panel Procedure Remove the trim panel forward in driving direction in order to release from the body clips.

Callout

Component Name

Preliminary Procedures

Body Side Trim Panel Clip

Body Side Trim Panel
Procedure
Remove the trim panel forward in driving direction in order to release from the body clips.
