Quarter Window Garnish Molding Replacement

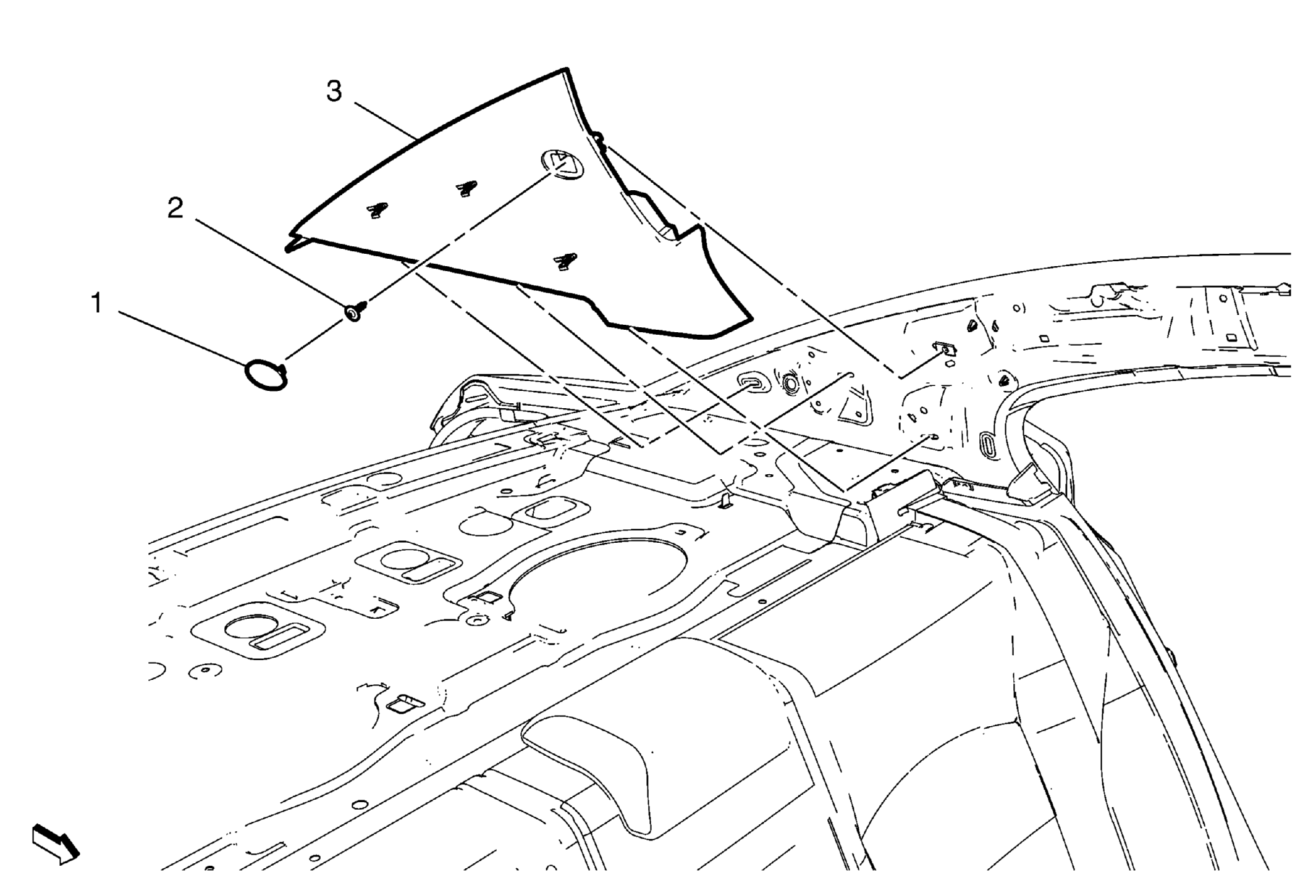

Fig 1: Quarter Window Garnish Molding

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Quarter Window Garnish Molding Bolt Cap Procedure  Use a small flat bladed trim tool to aid in removal of the cap.
2	Quarter Window Garnish Molding Bolt CAUTION: Refer to Fastener Caution .
3	Quarter Window Garnish Molding Procedure  Use a small flat bladed trim tool to aid in removal of the cap.
